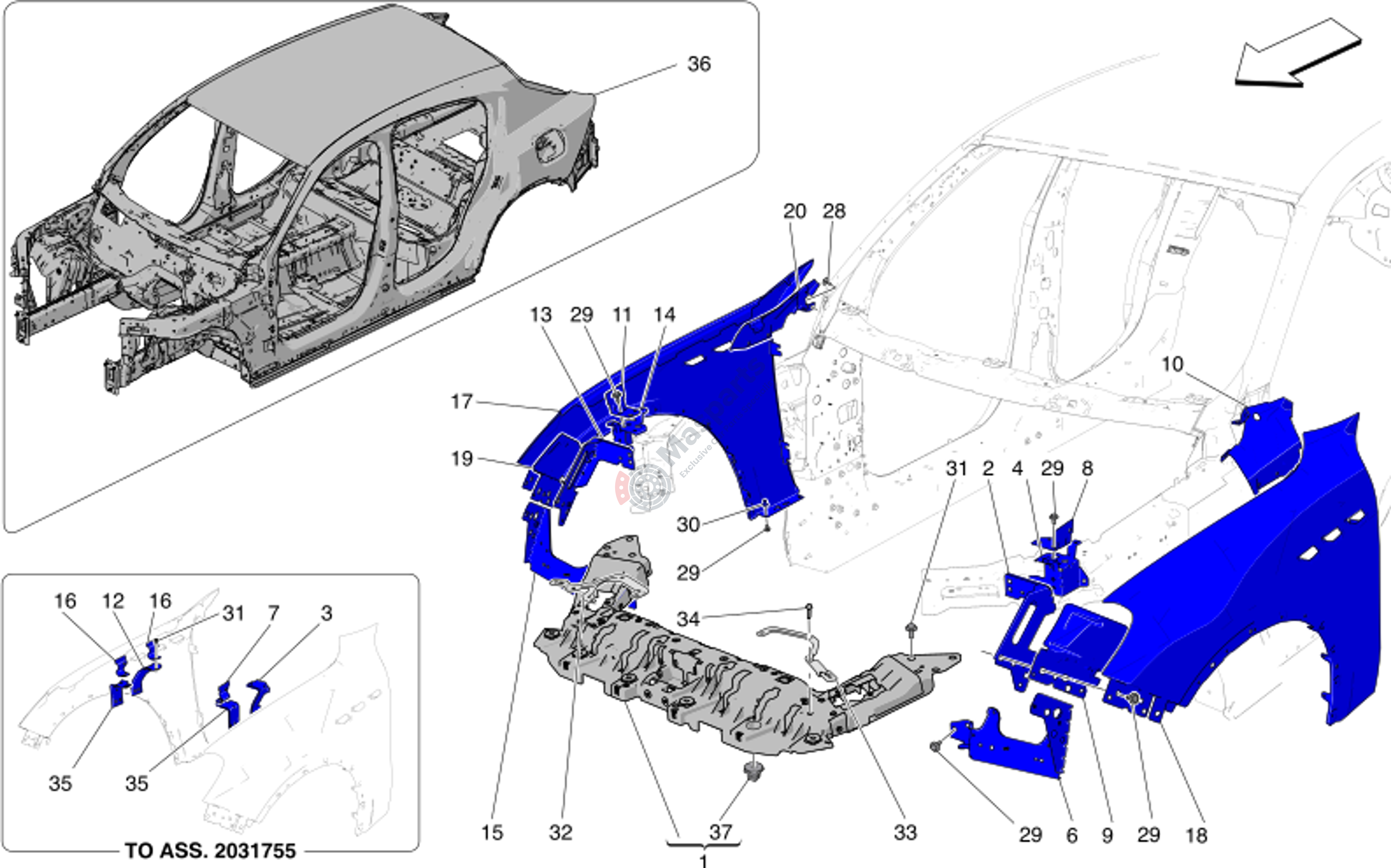

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670293089 | Upr Headlamp Support Crossme |
$401.19 |
|
|
| 2 | M-673014263 | Lh Mudguard Front Lower Rein |
$25.76 |
|
|
| 4 | M-670217114 | Lh Front Fender Bracket |
$11.27 |
|
|
| 6 | M-673016705 | - LH Mudguard Support Bracket |
$28.16 |
|
|
| 8 | M-670157320 | Lh Bracket |
$1.93 |
|
|
| 9 | M-670157342 | Lh Bracket |
$12.87 |
|
|
| 10 | M-670157318 | Lh Upper Report |
$12.52 |
|
|
| 13 | M-673014200 | Reinforcement Compl. Inf.Fen |
$25.52 |
|
|
| 14 | M-670217112 | Rh Front Fender Bracket |
$11.27 |
|
|
| 28 | M-675001750 | Screw |
$1.13 |
|
|
| 29 | M-675001317 | Screw |
$1.81 |
|
|
| 30 | M-675002108 | Rivet |
$0.96 |
|
|
| 31 | M-675002124 | Screw |
$2.11 |
|
|
| 32 | M-670177870 | Bracket |
$43.46 |
|
|
| 33 | M-670182557 | Bracket |
$41.86 |
|
|
| 34 | M-675001933 | Screw |
$1.45 |
|
|
| 37 | M-670005535 | Block |
$7.29 |
|
