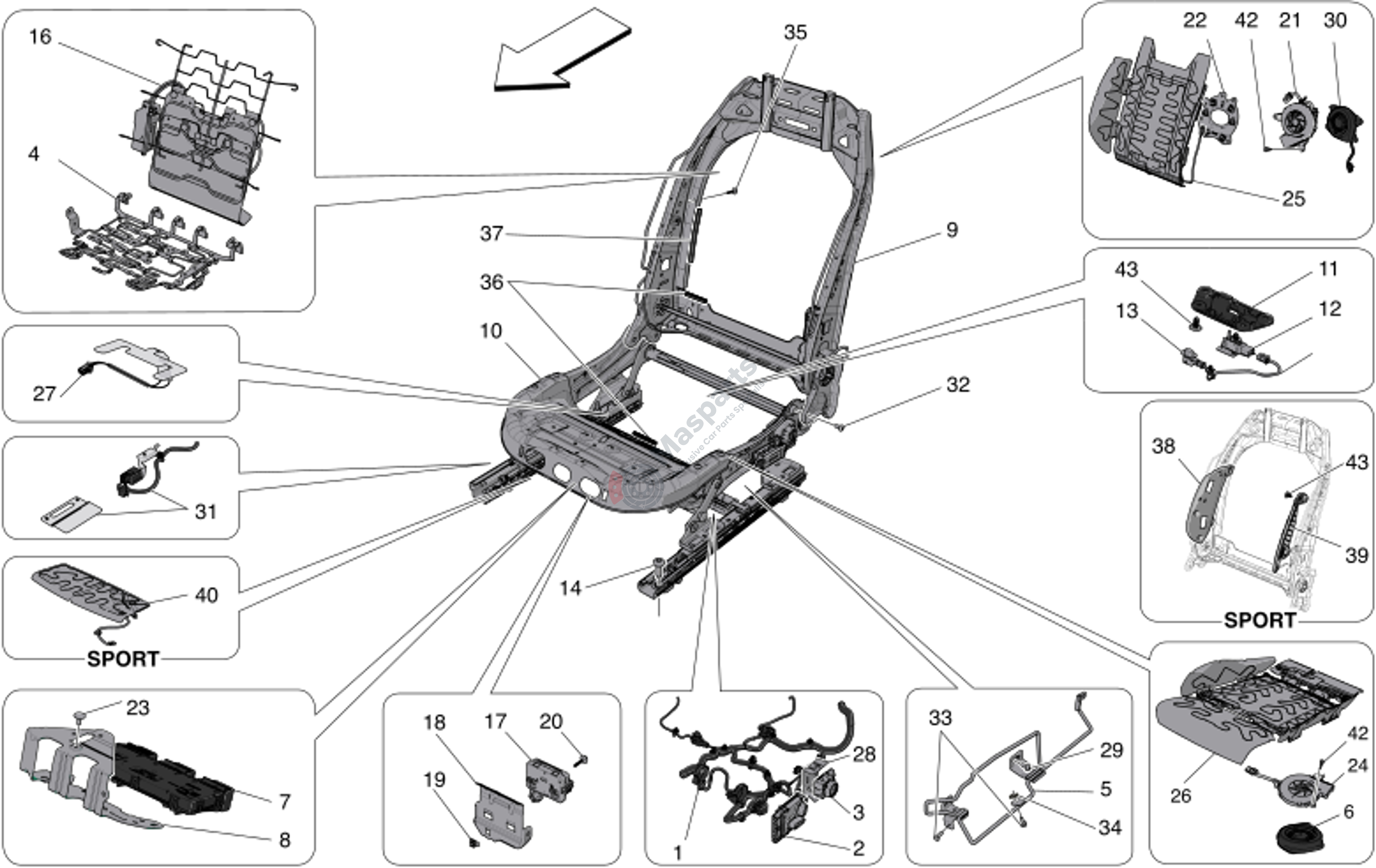

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-670173855 | Switch |
$70.31 |
|
|
| 4 | M-673011273 | Front Seat Cushion Spring |
$10.89 |
|
|
| 5 | M-673011326 | Rh Side Casing Mounting Brac |
$18.96 |
|
|
| 6 | M-673013908 | Cushion Vent |
$107.86 |
|
|
| 7 | M-670159953 | Memory Seat Module |
$376.11 |
|
|
| 8 | M-673011282 | Control Unit Bracket |
$17.05 |
|
|
| 9 | M-675002085 | Passenger Front Back Frame |
$313.75 |
|
|
| 11 | M-673011347 | Ambient Light Led Support Br |
$7.09 |
|
|
| 12 | M-670293483 | Ambient Light |
$23.87 |
|
|
| 13 | M-673011384 | Anbient Light Connection Bri |
$11.92 |
|
|
| 14 | M-675002168 | Screw |
$1.12 |
|
|
| 17 | M-670218807 | Heater-Fan Ecu |
$56.07 |
|
|
| 18 | M-673011283 | Bracket |
$5.78 |
|
|
| 19 | M-673011436 | Nut |
$3.32 |
|
|
| 20 | M-673011435 | Screw |
$3.32 |
|
|
| 21 | M-673011289 | Backrest Air Diffuser |
$98.23 |
|
|
| 22 | M-673011290 | Bracket |
$10.79 |
|
|
| 23 | M-673011420 | Rivet |
$1.08 |
|
|
| 27 | M-673013280 | Sbr Sensor |
$42.19 |
|
|
| 28 | M-670006150 | Support |
$10.10 |
|
|
| 29 | M-673011418 | Screw |
$1.72 |
|
|
| 30 | M-673011285 | Fan |
$114.00 |
|
|
| 31 | M-673011319 | Stps Sensor |
$41.35 |
|
|
| 32 | M-673011414 | Screw |
$5.53 |
|
|
| 33 | M-673000236 | Screw |
$2.07 |
|
|
| 34 | M-673000289 | Nut |
$2.33 |
|
|
| 35 | M-673011430 | Pin |
$1.12 |
|
|
| 36 | M-673011427 | Rubber Profile |
$3.47 |
|
|
| 38 | M-673011020 | Rh Support |
$17.84 |
|
|
| 39 | M-673011019 | Lh Support |
$26.48 |
|
|
| 40 | M-673011313 | Cushion Length Adjustment He |
$12.85 |
|
|
| 42 | M-673011434 | Pin |
$4.78 |
|
