Diagram image not available

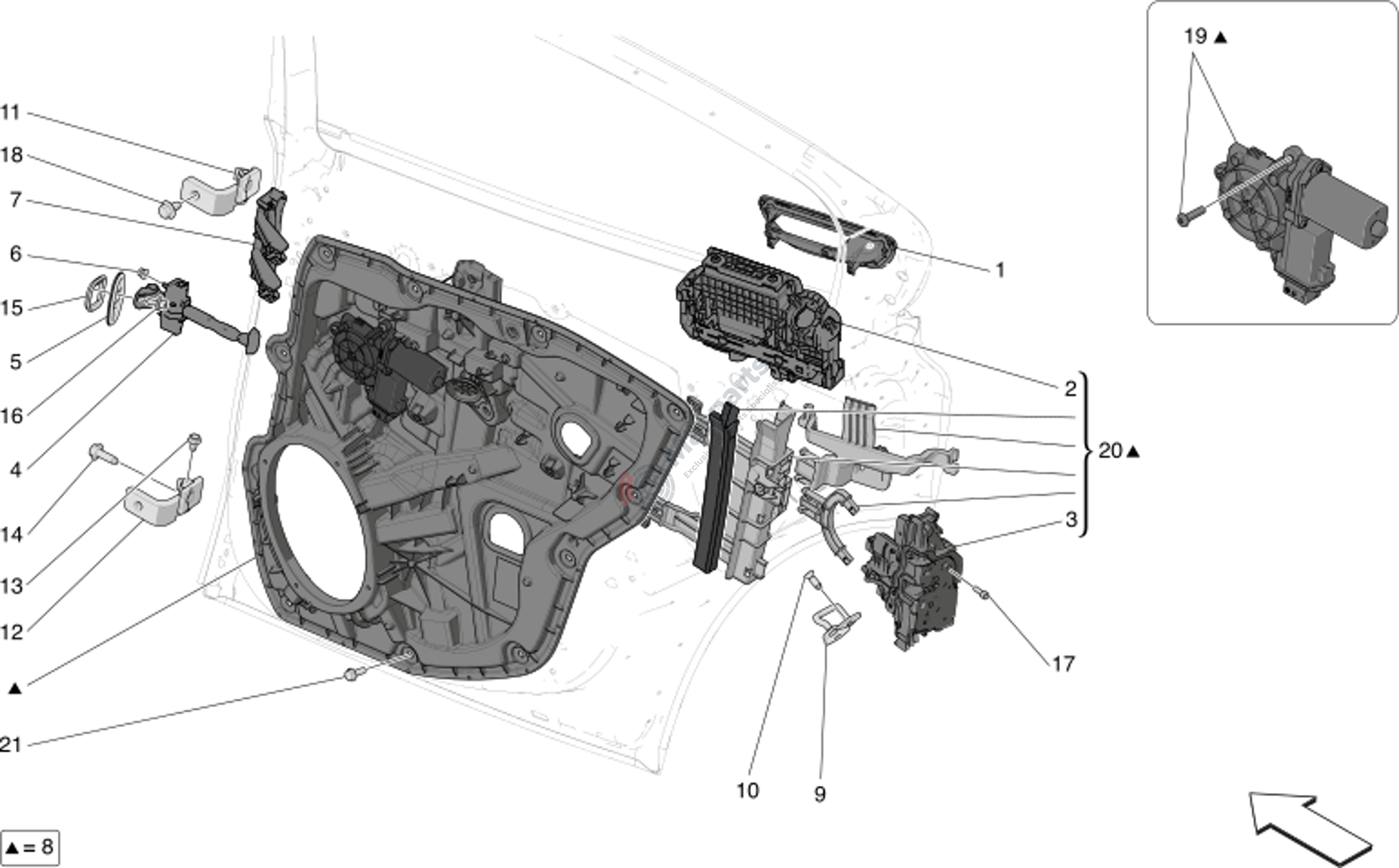

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670157750 | Rh External Door Handle Reta |
$165.41 |
|
|
| 3 | M-670157751 | Rh Rear Door Lock |
$241.83 |
|
|
| 4 | M-670157603 | Tie Rod |
$22.74 |
|
|
| 5 | M-675001583 | Rear Door Shield Gasket |
$2.66 |
|
|
| 6 | M-675001318 | Nut |
$1.23 |
|
|
| 7 | M-670212815 | Rear Rh Window Run Channel |
$10.40 |
|
|
| 8 | M-673014115 | Complete Right Rear Door Mod |
$514.01 |
|
|
| 9 | M-670175119 | Doors Lock Striker |
$10.47 |
|
|
| 10 | M-675001811 | Screw |
$0.96 |
|
|
| 11 | M-675002135 | Rh Rear Upper Hinge |
$48.85 |
|
|
| 12 | M-675002136 | Rh Rear Lower Hinge |
$48.85 |
|
|
| 13 | M-675000005 | Special Screw |
$2.28 |
|
|
| 14 | M-675000485 | Special Screw |
$1.56 |
|
|
| 15 | M-675001602 | Rear Door Gasket |
$3.05 |
|
|
| 16 | M-670006984 | Screw |
$2.33 |
|
|
| 17 | M-675001327 | Screw |
$0.96 |
|
|
| 18 | M-670219402 | Screw |
$3.69 |
|
|
| 19 | M-673014119 | Right Rear Gearmotor Kit |
$137.34 |
|
|
| 20 | M-673014117 | Right Rear Presenter Kit |
$460.92 |
|
|
| 21 | M-675001669 | Screw |
$0.92 |
|
