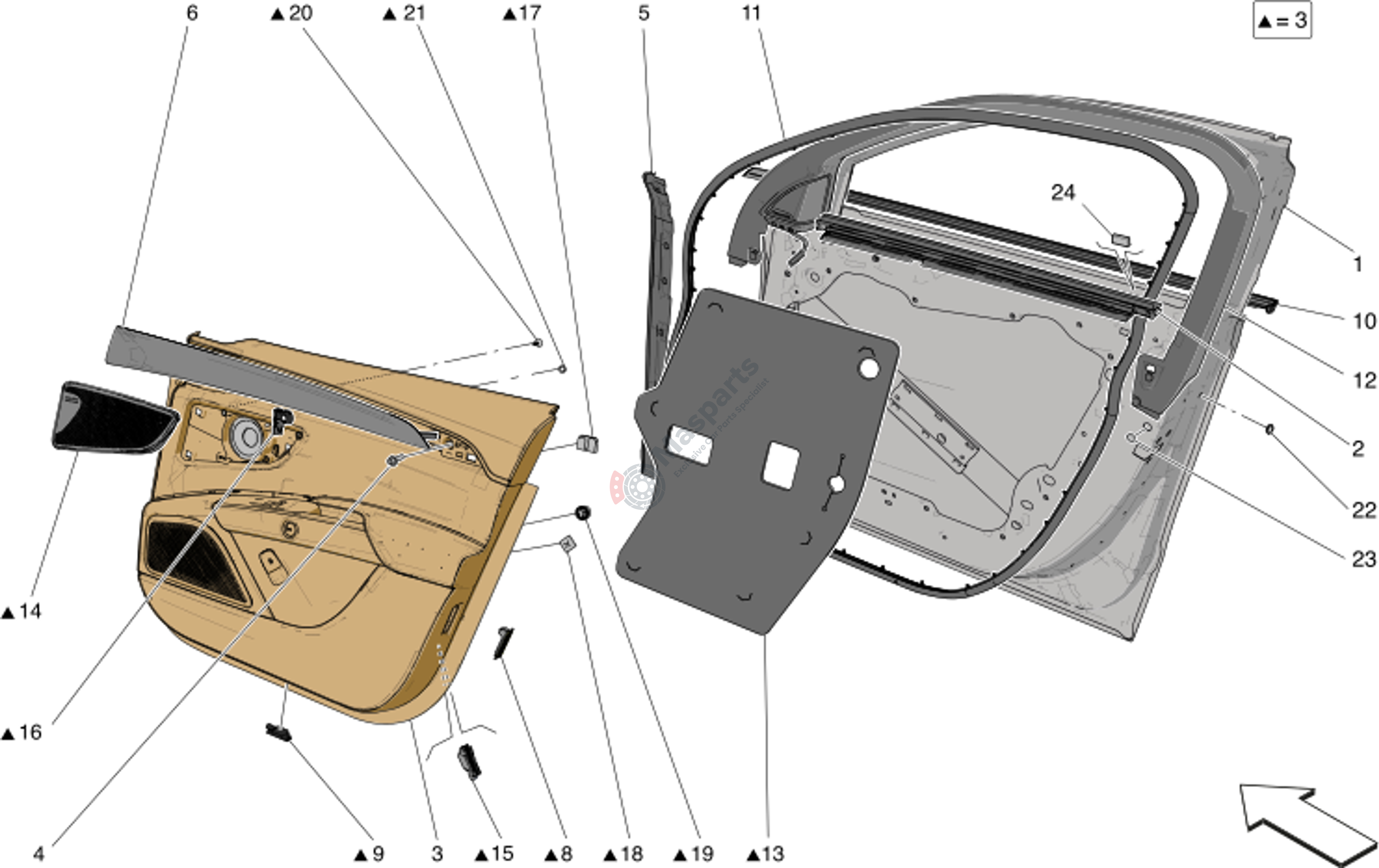

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673013824 | Rh Front Door |
$1,135.86 |
|
|
| 4 | M-675002172 | Screw |
$1.20 |
|
|
| 5 | M-670157577 | Rh Front Door Vertical Gaske |
$24.98 |
|
|
| 8 | M-675001779 | Rh Domelight |
$5.31 |
|
|
| 9 | M-675001089 | Lamp |
$25.27 |
|
|
| 11 | M-670220766 | Rh Front Door Framework Gask |
$58.98 |
|
|
| 13 | M-673014488 | Acoustic Fleece Frt |
$16.76 |
|
|
| 14 | M-673014506 | Mr Metal Grill Premium Assy |
$292.78 |
|
|
| 17 | M-673014495 | Crash Clip Rh |
$5.34 |
|
|
| 18 | M-673005979 | Locator Seal |
$2.17 |
|
|
| 19 | M-670214550 | Pin |
$1.39 |
|
|
| 20 | M-673014498 | Screw K50 X 14Mm |
$1.51 |
|
|
| 21 | M-673014497 | Bracket Metal Bushing |
$1.53 |
|
|
| 22 | M-675001326 | Plug |
$2.47 |
|
|
| 23 | M-675000762 | Rubber Closing Plug |
$1.96 |
|
|
| 24 | M-675002366 | Tampone Insonorizzante |
$5.00 |
|
