Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

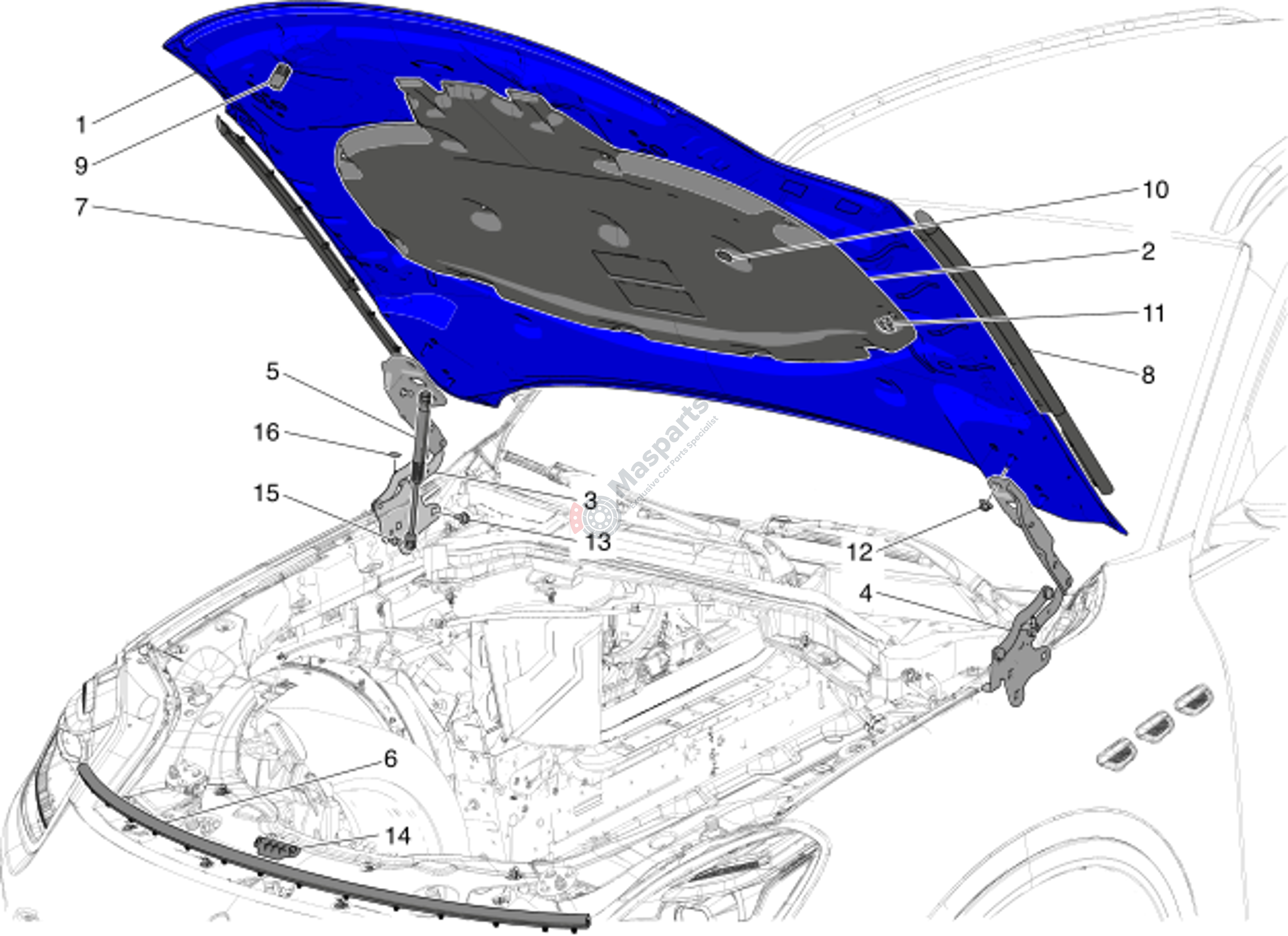

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673013822 | Hood |
$1,186.78 |
|
|
| 2 | M-670158101 | Bonnet Insulation |
$95.00 |
|
|
| 3 | M-670296034 | Front Bonnet Rh Hinge |
$109.39 |
|
|
| 4 | M-670296035 | Front Bonnet Lh Hinge |
$109.39 |
|
|
| 5 | M-670295805 | Prop |
$33.08 |
|
|
| 6 | M-670222420 | Gasket Underneath Front Lid |
$31.05 |
|
|
| 9 | M-675002056 | Isolator |
$1.25 |
|
|
| 10 | M-675000546 | Pad |
$53.13 |
|
|
| 11 | M-675000073 | Clip |
$1.01 |
|
|
| 12 | M-675000092 | Nut |
$1.30 |
|
|
| 13 | M-675002156 | Screw M8X25 |
$1.51 |
|
|
| 14 | M-675001594 | Closing Cap |
$3.12 |
|
|
| 15 | M-675002152 | Ball Pin |
$1.04 |
|
|
| 16 | M-675001597 | Anti-Abrasive Tape |
$1.53 |
|
