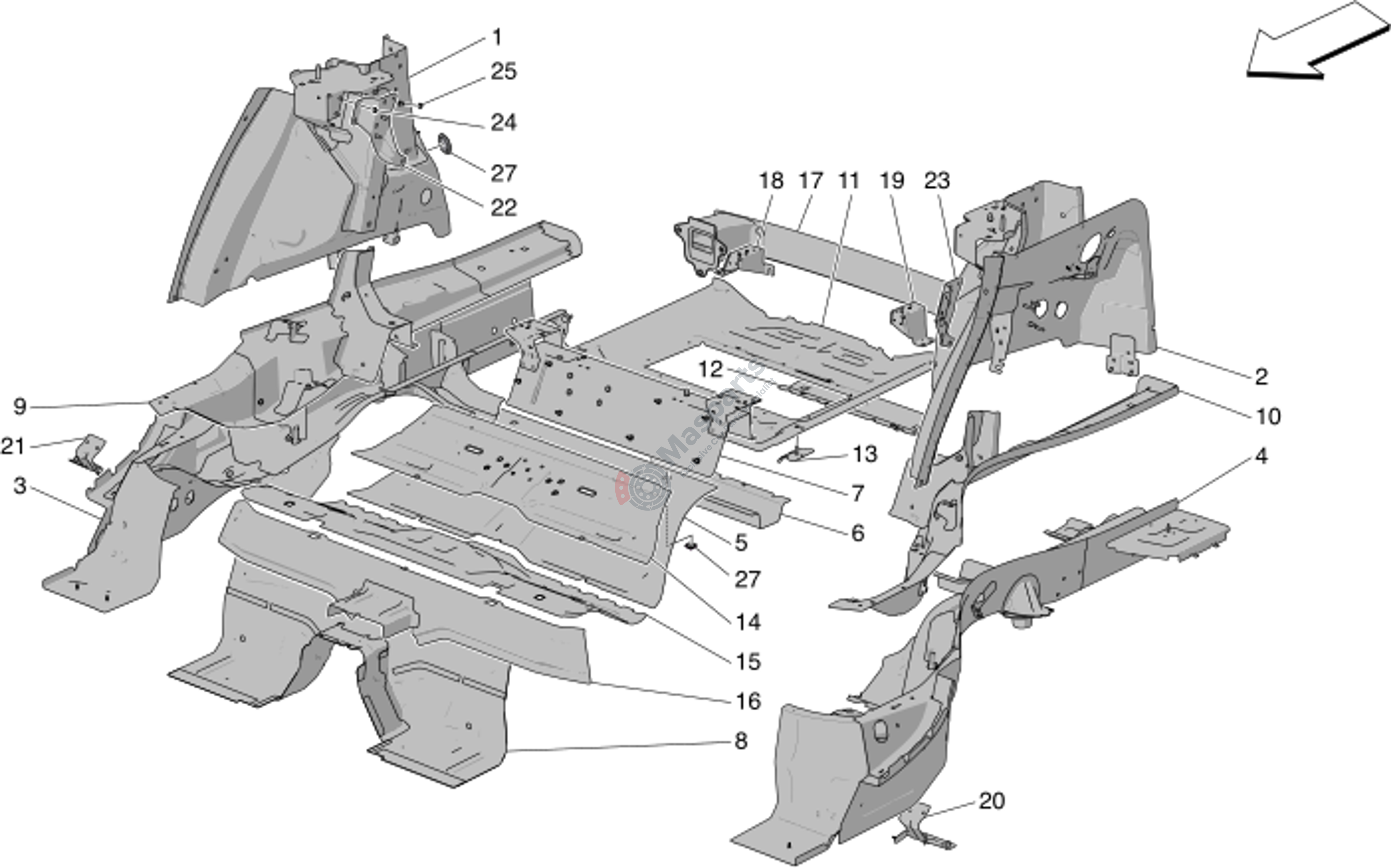

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673014208 | Wheelhouse Cs. Post Rh |
$329.59 |
|
|
| 2 | M-673014209 | Wheelhouse Cs. Post Lh |
$379.27 |
|
|
| 5 | M-673014222 | Front Longitudinal Member Co |
$102.47 |
|
|
| 6 | M-673014223 | Rear Cross Member Connecting |
$11.53 |
|
|
| 7 | M-673014224 | Rear Seat Cross Member |
$89.01 |
|
|
| 8 | M-673014225 | Rear Cross Member |
$89.86 |
|
|
| 9 | M-673014254 | Rh Rear Rail Panel |
$275.51 |
|
|
| 10 | M-673014255 | Lh Rear Rail Panel |
$275.51 |
|
|
| 11 | M-673014258 | Rear Floor |
$101.17 |
|
|
| 12 | M-673014256 | Rear Floor Crossmember |
$26.01 |
|
|
| 14 | M-673014226 | Rear Side Rear Floor |
$89.12 |
|
|
| 15 | M-673014228 | Front Side Of Rear Floor Ass |
$81.44 |
|
|
| 16 | M-673014227 | Rear Cross Piece Member |
$77.64 |
|
|
| 17 | M-670295915 | Rear Crash-Box Cross Member |
$322.88 |
|
|
| 20 | M-670157472 | Lh Bracket |
$14.63 |
|
|
| 21 | M-675002120 | Rh Bracket |
$13.11 |
|
|
| 22 | M-670172816 | Rh Bracket Winder |
$12.24 |
|
|
| 23 | M-670172817 | Lh Bracket Winder |
$12.24 |
|
|
| 24 | M-675000181 | Nut |
$1.48 |
|
|
| 25 | M-675000969 | Nut |
$0.98 |
|
|
| 27 | M-675001591 | Cap |
$1.26 |
|
