Diagram image not available

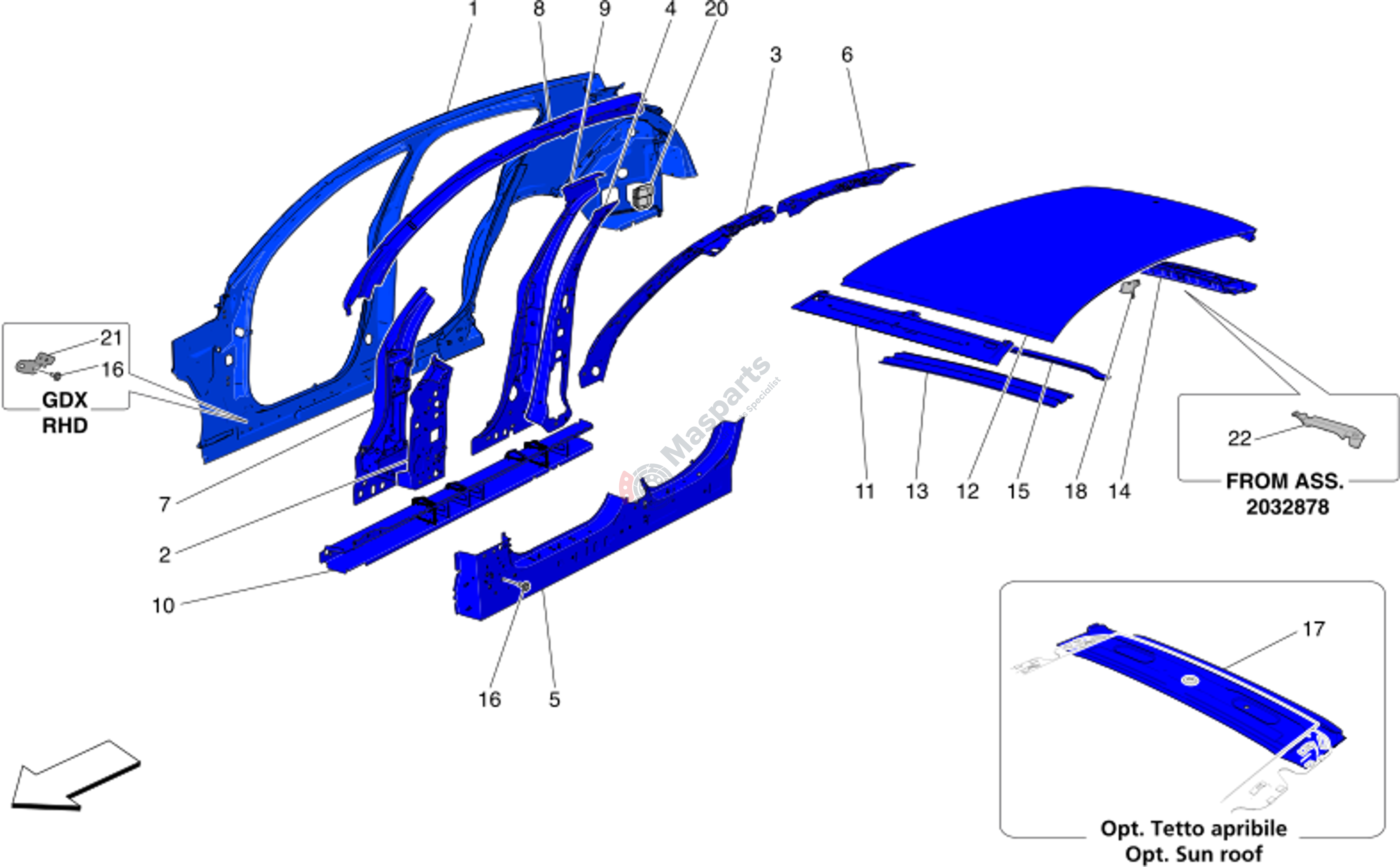

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673015224 | Rh Ext.Body Side Assembly |
$1,443.31 |
|
|
| 2 | M-673014231 | Rh Internal Body Side Frame |
$106.07 |
|
|
| 3 | M-673014195 | Longherina Compl. Right-Upri |
$100.18 |
|
|
| 4 | M-673014201 | Box Compl. Central Right Upr |
$78.89 |
|
|
| 5 | M-673014206 | Longarone Compl. Int Lateral |
$280.90 |
|
|
| 6 | M-673014184 | Longherina Cs. Sup. Post Rh |
$36.38 |
|
|
| 8 | M-673014137 | Rh Front Pillar Member Reinf |
$912.44 |
|
|
| 10 | M-673014141 | Rh Side Reinforcement |
$292.69 |
|
|
| 13 | M-673014189 | Centina Centr. Pavilion |
$35.89 |
|
|
| 15 | M-673014190 | Centina Pavilion |
$30.00 |
|
|
| 16 | M-675002134 | Screw |
$1.50 |
|
|
| 17 | M-673014192 | External Cladding Pavilion |
$39.48 |
|
|
| 18 | M-675002114 | Rh Head Bag Bracket |
$2.35 |
|
|
| 20 | M-675002149 | Lateral Air Vent |
$7.05 |
|
