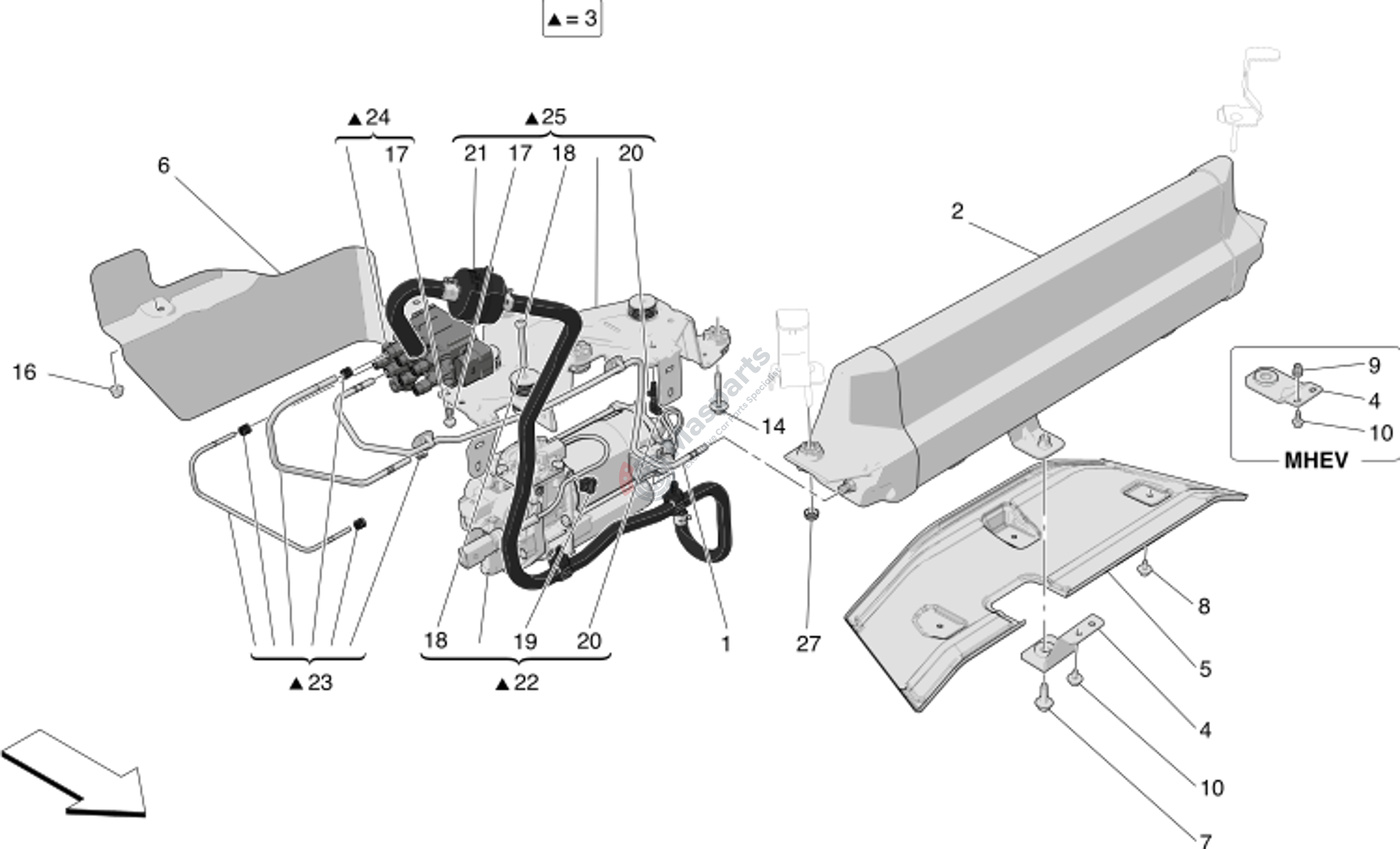

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670305675 | Pipe |
$18.20 |
|
|
| 2 | M-670216817 | Suspension Tank |
$350.34 |
|
|
| 3 | M-670217139 | Air Supply Unit |
$1,414.98 |
|
|
| 4 | M-670177218 | Bracket Support. Auxiliary T |
$14.40 |
|
|
| 5 | M-670176773 | Heat Cover |
$18.34 |
|
|
| 6 | M-670176772 | Heat Cover |
$34.90 |
|
|
| 7 | M-675001245 | Screw |
$1.66 |
|
|
| 9 | M-675000686 | Rivet |
$1.19 |
|
|
| 10 | M-675001036 | Screw |
$1.42 |
|
|
| 14 | M-670177587 | Screw |
$3.48 |
|
|
| 16 | M-675000794 | Flanged Nut |
$1.51 |
|
|
| 18 | M-670217140 | Isolator Screw |
$1.23 |
|
|
| 19 | M-670161934 | Clip Cable |
$1.39 |
|
|
| 20 | M-670213219 | Clip |
$4.83 |
|
|
| 21 | M-670160076 | Intake Line |
$85.21 |
|
|
| 22 | M-673013285 | Compressor Kit M182 |
$914.78 |
|
|
| 23 | M-673013287 | Fitting Kit M182 |
$282.29 |
|
|
| 24 | M-673013294 | Solenoid Valve Block Kit |
$527.46 |
|
|
| 25 | M-673013286 | Bracket Kit M182 |
$382.35 |
|
|
| 27 | M-675000966 | Nut |
$1.25 |
|
