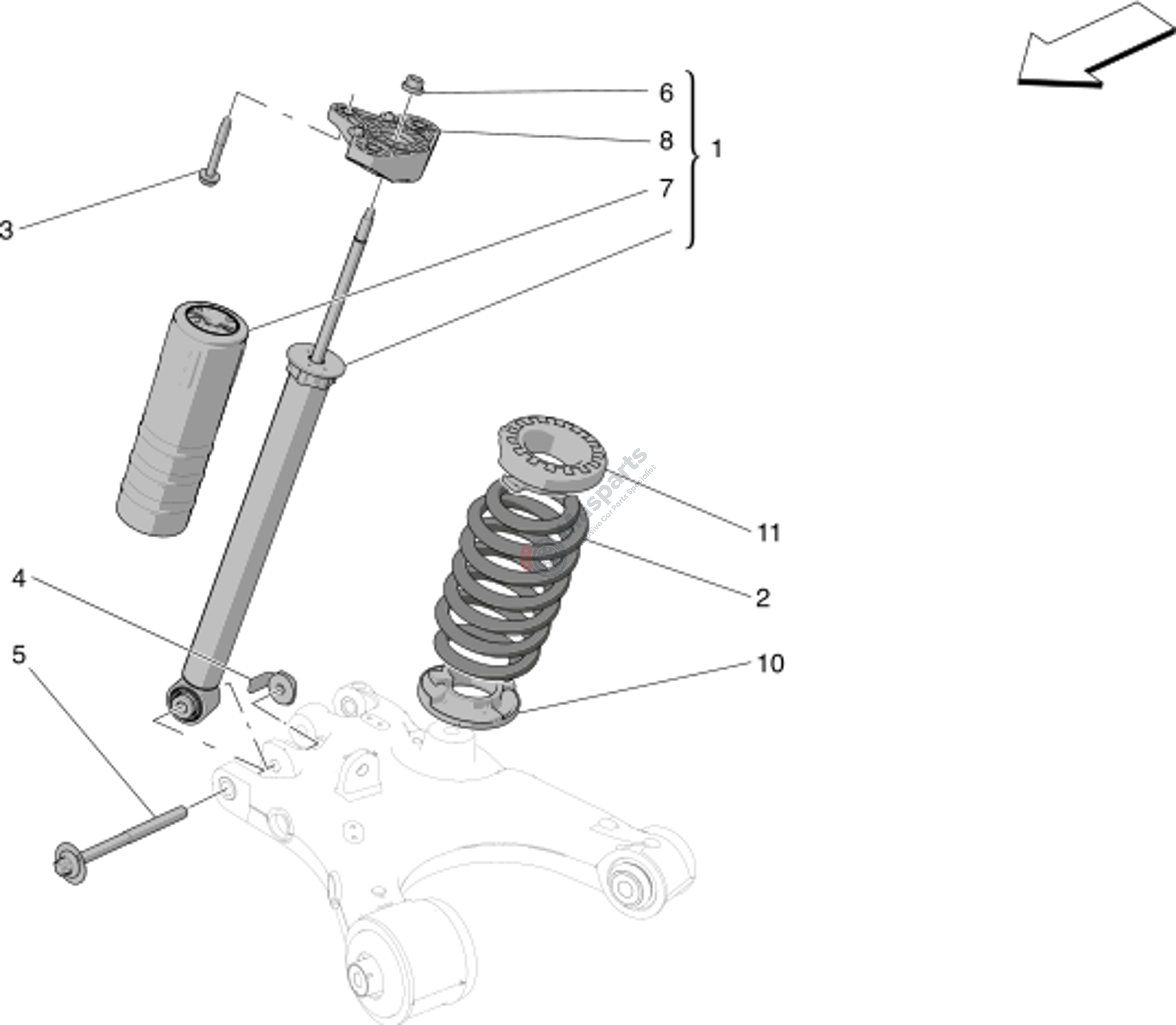

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670161322 | Rear Suspension |
$580.35 |
|
|
| 3 | M-675001087 | Screw |
$1.67 |
|
|
| 4 | M-675001532 | Nut |
$8.13 |
|
|
| 5 | M-675001831 | Screw |
$5.80 |
|
|
| 6 | M-675002064 | Nut |
$2.10 |
|
|
| 7 | M-675001984 | Block |
$37.51 |
|
|
| 8 | M-675001982 | Elastic Block |
$39.18 |
|
|
| 10 | M-675001497 | Ring |
$18.31 |
|
|
| 11 | M-675001498 | Ring |
$17.13 |
|
