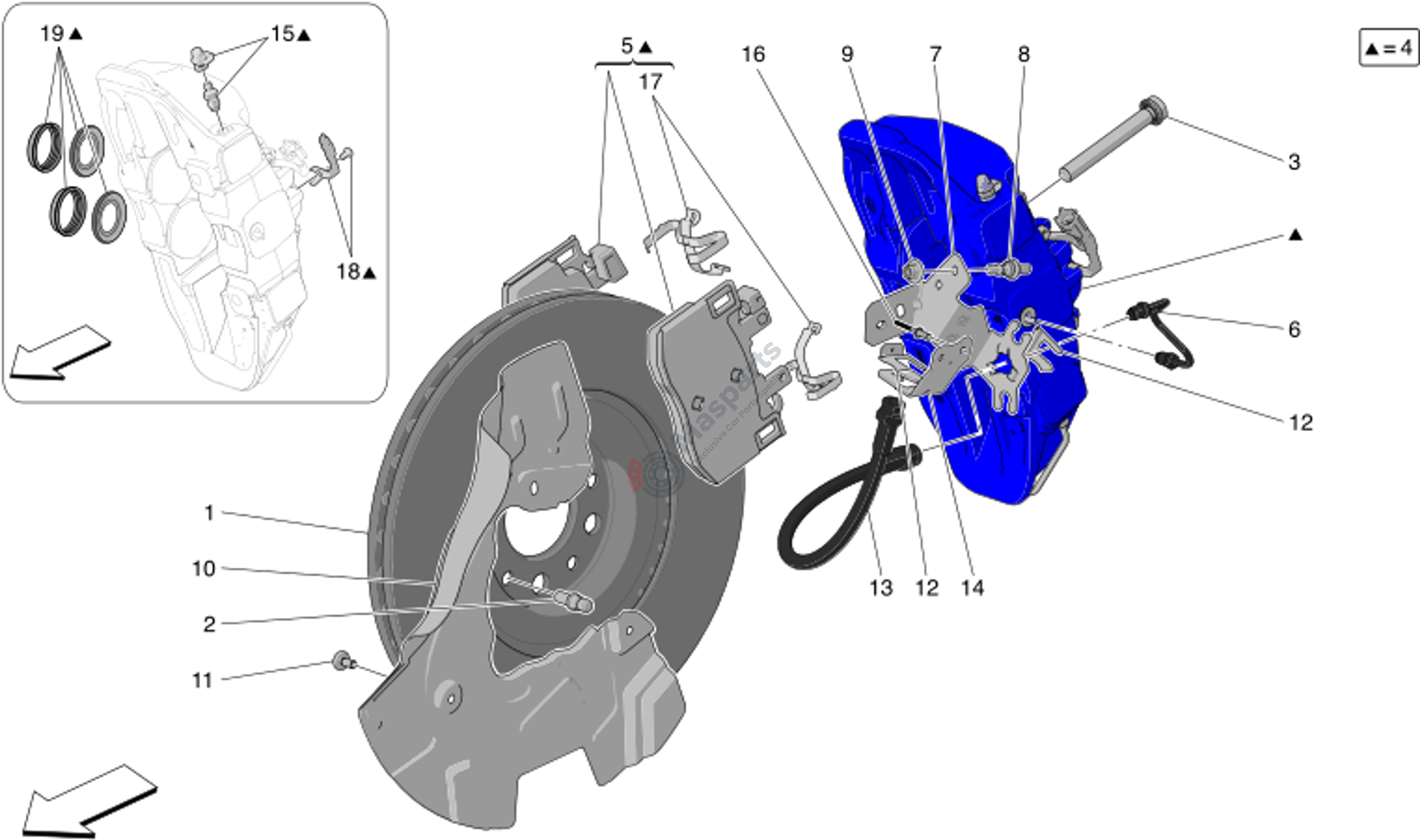

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670156762 | Front Brake Disc Mhev |
€154,50 |
|
|
| 2 | M-675001537 | Screw |
€2,01 |
|
|
| 3 | M-675001495 | Screw |
€4,31 |
|
|
| 5 | M-673016578 | Grecale GT Mhev Front Brake Pads |
€291,00 |
|
|
| 6 | M-675001588 | Rigid Pipe |
€6,46 |
|
|
| 7 | M-675001677 | Bracket |
€5,98 |
|
|
| 8 | M-675000898 | Threaded Rod |
€4,15 |
|
|
| 9 | M-675001063 | Nut |
€1,04 |
|
|
| 10 | M-675001739 | Front Rh Brake Disc Cover |
€22,36 |
|
|
| 11 | M-675001032 | Screw |
€1,08 |
|
|
| 12 | M-675000276 | Plate |
€0,81 |
|
|
| 13 | M-675001877 | Brake Pipe |
€8,67 |
|
|
| 14 | M-675001741 | Fixing Bracket |
€3,13 |
|
|
| 15 | M-673011103 | Bleeder Screw And Plug |
€50,88 |
|
|
| 16 | M-675001897 | Rivet |
€1,72 |
|
|
| 17 | M-673011104 | Spring |
€76,84 |
|
|
| 18 | M-673011101 | Rh Bracket And Screw |
€32,84 |
|
|
| 19 | M-673011100 | Kit Boot |
€64,40 |
|
