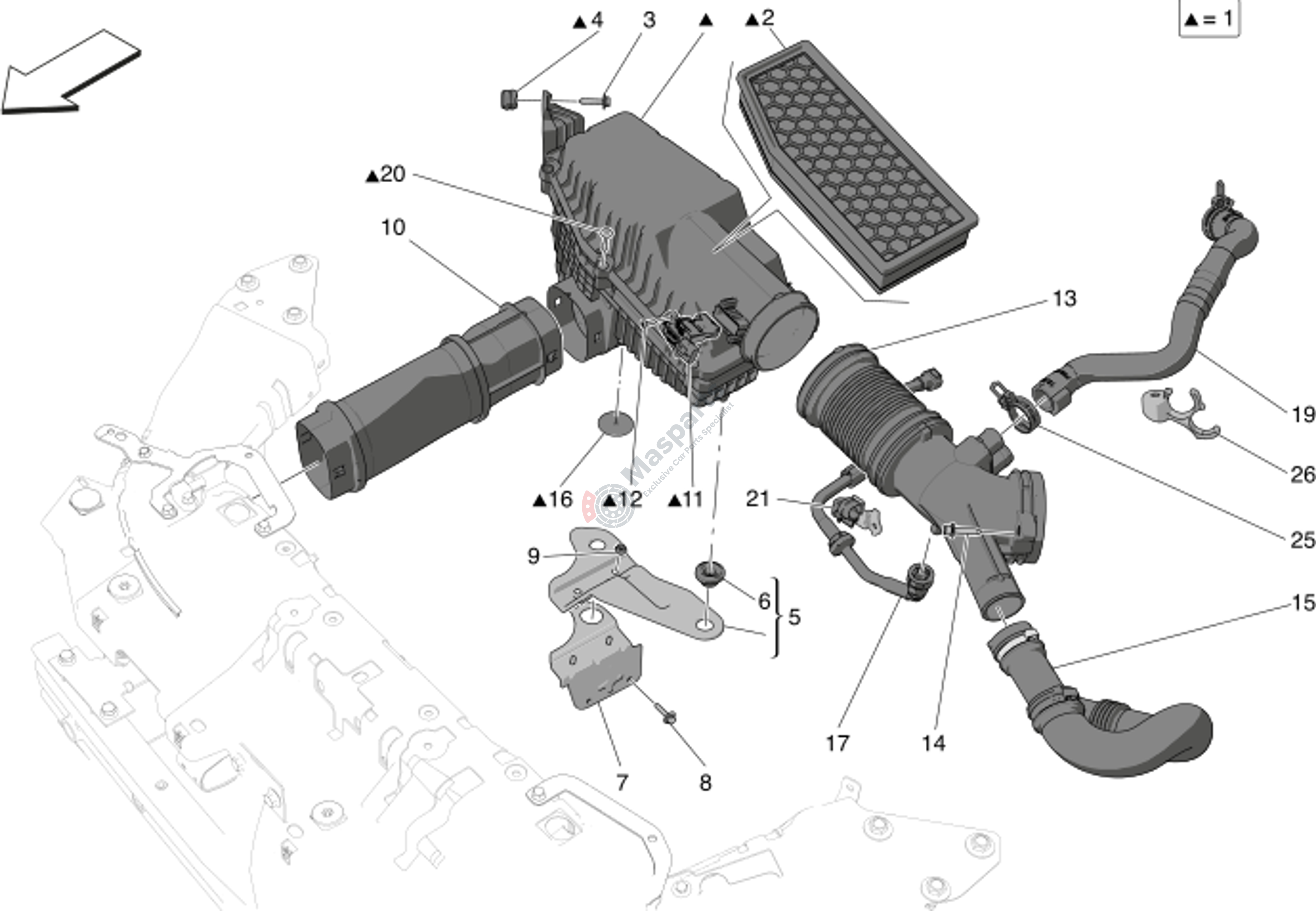

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670156354 | Air Filter |
$187.79 |
|
|
| 2 | M-670161180 | Air Filter |
$49.00 |
|
|
| 3 | M-675001078 | Screw |
$1.95 |
|
|
| 4 | M-675000284 | Flexible Pad |
$10.53 |
|
|
| 5 | M-670214838 | Bracket |
$37.22 |
|
|
| 6 | M-675000018 | Rubber Bushing |
$4.88 |
|
|
| 7 | M-675001605 | Air Filter Support Lower Bra |
$17.48 |
|
|
| 8 | M-675001078 | Screw |
$1.95 |
|
|
| 9 | M-675000969 | Nut |
$0.97 |
|
|
| 10 | M-670156363 | Tube |
$57.82 |
|
|
| 12 | M-675001451 | Screw |
$2.37 |
|
|
| 13 | M-670156370 | Tube |
$108.82 |
|
|
| 14 | M-675000434 | Screw |
$4.57 |
|
|
| 15 | M-670156374 | Tube |
$51.34 |
|
|
| 16 | M-675001452 | Valve |
$4.61 |
|
|
| 17 | M-670156721 | Pipe |
$41.57 |
|
|
| 19 | M-670054096 | Flexible Pipe |
$104.97 |
|
|
| 20 | M-675001150 | Screw |
$1.95 |
|
|
| 21 | M-670154518 | Bracket |
$10.10 |
|
|
| 25 | M-675001954 | Collar |
$3.29 |
|
|
| 26 | M-670053111 | Clip |
$1.74 |
|
