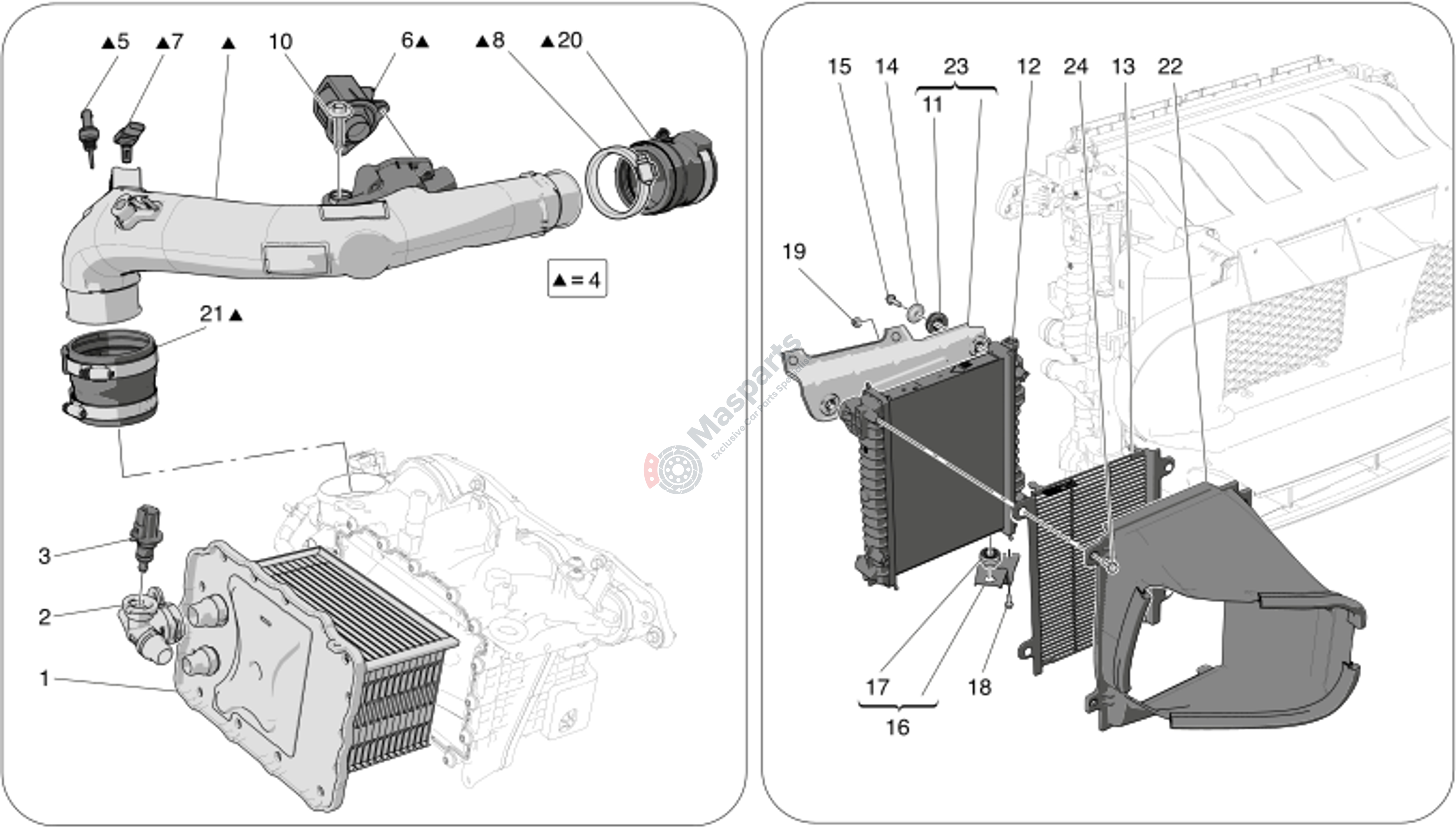

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-673013310 | Kit Sensor Housing And Screw |
$442.24 |
|
|
| 3 | M-675000985 | Temperature Sensor |
$20.59 |
|
|
| 5 | M-675000990 | Air Temperature Sensor |
$81.92 |
|
|
| 6 | M-675000991 | Valve |
$314.68 |
|
|
| 7 | M-675000992 | Pressure Sensor |
$394.79 |
|
|
| 8 | M-675000993 | Clamp |
$28.20 |
|
|
| 10 | M-675000986 | Screw |
$1.90 |
|
|
| 11 | M-675000201 | Small Block. |
$9.28 |
|
|
| 12 | M-675001056 | Intercooler |
$274.01 |
|
|
| 13 | M-670161248 | Rh Radiator Grille |
$35.47 |
|
|
| 14 | M-675000409 | Washer |
$2.45 |
|
|
| 15 | M-675001048 | Screw |
$0.71 |
|
|
| 16 | M-675001571 | Right Bracket |
$14.65 |
|
|
| 17 | M-675000545 | Rubber Bushing |
$2.81 |
|
|
| 18 | M-675001119 | Screw |
$0.79 |
|
|
| 19 | M-675000794 | Flanged Nut |
$1.50 |
|
|
| 22 | M-670156625 | Rh Conveyor |
$69.45 |
|
|
| 23 | M-675001969 | Bracket |
$44.80 |
|
|
| 24 | M-675002334 | Screw |
$14.35 |
|
