Diagram image not available

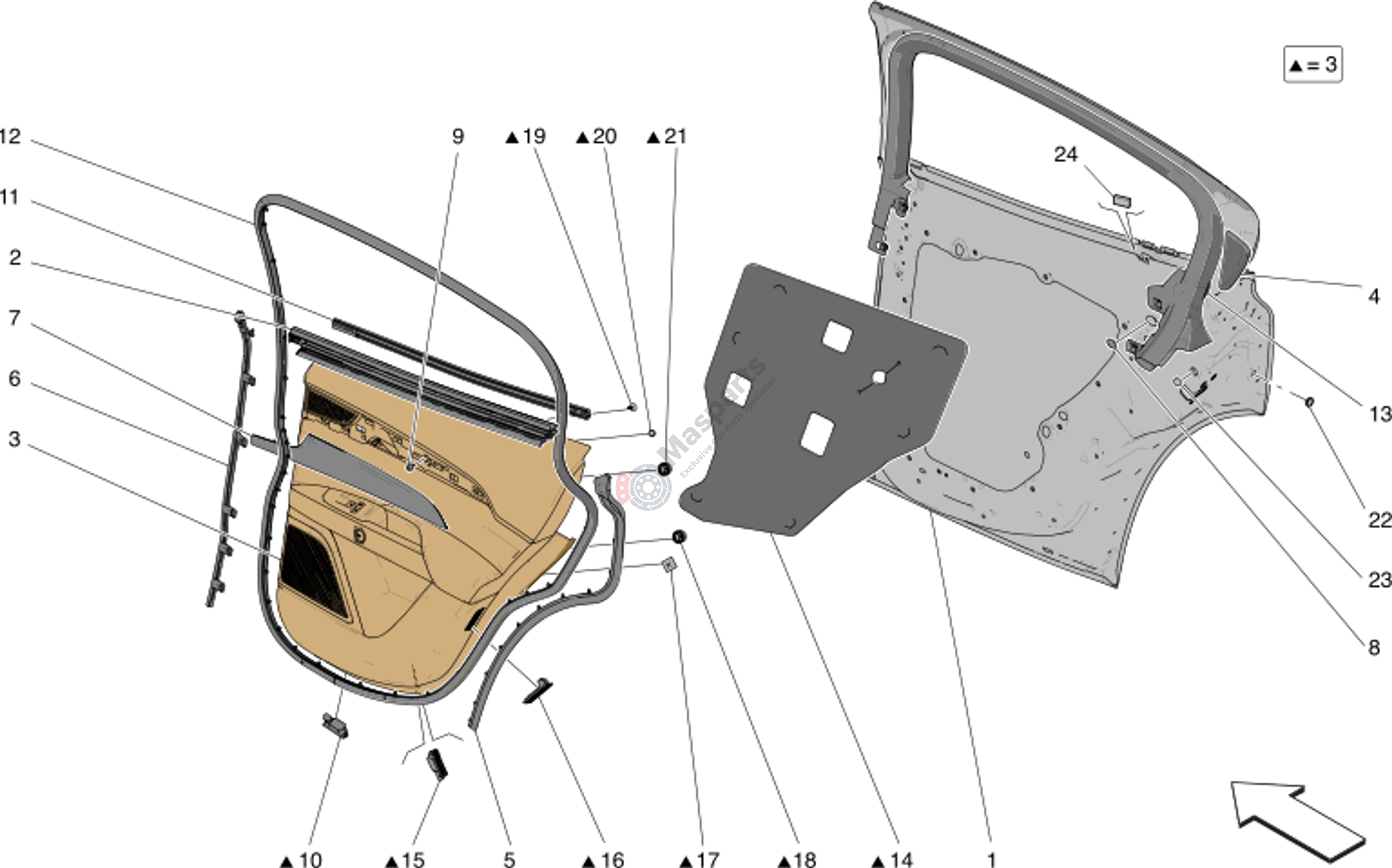

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673013826 | Rh Rear Door |
$1,092.89 |
|
|
| 6 | M-670157605 | Rh Front Door Sill Gasket |
$22.33 |
|
|
| 8 | M-675002206 | Cap |
$3.29 |
|
|
| 9 | M-675002172 | Screw |
$1.16 |
|
|
| 10 | M-675001089 | Lamp |
$24.32 |
|
|
| 12 | M-670220768 | Rh Rear Door Framework Gaske |
$56.75 |
|
|
| 14 | M-673014499 | Acoustic Fleece Rr |
$13.57 |
|
|
| 16 | M-670106485 | R.H. Domelight |
$11.27 |
|
|
| 17 | M-673005979 | Locator Seal |
$2.09 |
|
|
| 18 | M-670214550 | Pin |
$1.35 |
|
|
| 19 | M-673014498 | Screw K50 X 14Mm |
$1.46 |
|
|
| 20 | M-673014497 | Bracket Metal Bushing |
$1.48 |
|
|
| 21 | M-675002308 | Pin |
$0.96 |
|
|
| 22 | M-675001326 | Plug |
$2.38 |
|
|
| 23 | M-675000762 | Rubber Closing Plug |
$1.88 |
|
|
| 24 | M-675002366 | Tampone Insonorizzante |
$4.81 |
|
