Diagram image not available

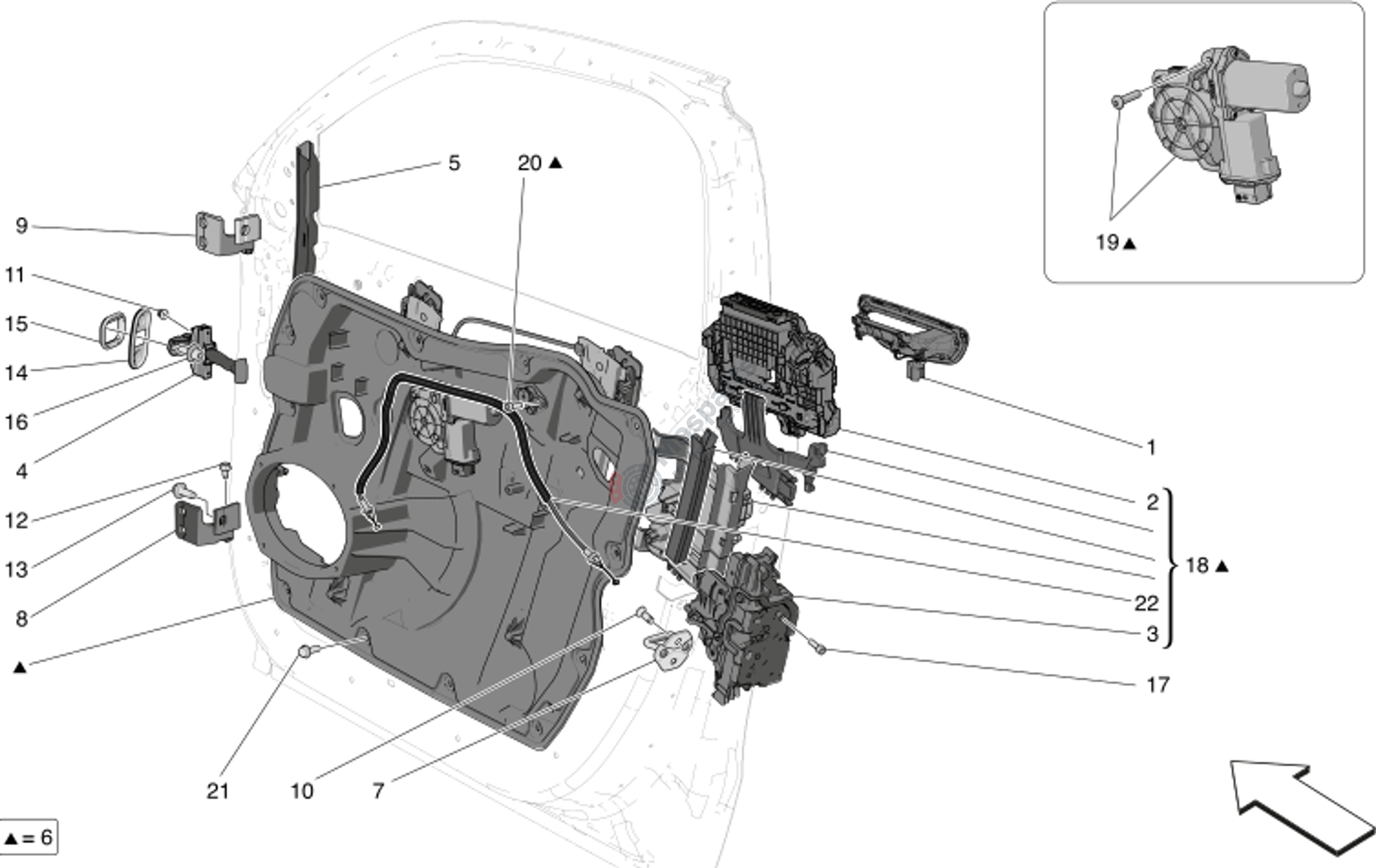

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670157748 | Rh External Door Handle Brac |
$133.33 |
|
|
| 3 | M-670157568 | Rh Front Door Lock Lhd |
$394.81 |
|
|
| 4 | M-670157566 | Tie Rod |
$22.45 |
|
|
| 5 | M-675002106 | Front Rh Window Run Channel |
$14.87 |
|
|
| 6 | M-673014121 | Complete Front Right Door Mo |
$499.19 |
|
|
| 7 | M-670175119 | Doors Lock Striker |
$10.34 |
|
|
| 8 | M-675002132 | Rh Front Lower Hinge |
$49.51 |
|
|
| 9 | M-675002130 | Rh Front Upper Hinge |
$49.51 |
|
|
| 10 | M-675001811 | Screw |
$0.94 |
|
|
| 11 | M-675001318 | Nut |
$1.21 |
|
|
| 12 | M-675000005 | Special Screw |
$2.25 |
|
|
| 13 | M-675000485 | Special Screw |
$1.54 |
|
|
| 14 | M-675001584 | Front Door Gasket |
$2.63 |
|
|
| 15 | M-675001528 | Front Door Gasket |
$3.25 |
|
|
| 16 | M-670006984 | Screw |
$2.30 |
|
|
| 17 | M-675001327 | Screw |
$0.94 |
|
|
| 18 | M-673014106 | Front Dx Gsx Presenter Kit |
$504.32 |
|
|
| 19 | M-673014110 | Front Right Gear Motor Kit |
$127.00 |
|
|
| 20 | M-673014113 | Rear Sensor Fixing Screws |
$10.05 |
|
|
| 21 | M-675001669 | Screw |
$0.91 |
|
|
| 22 | M-673014112 | Remote Control Opening Front |
$64.30 |
|
