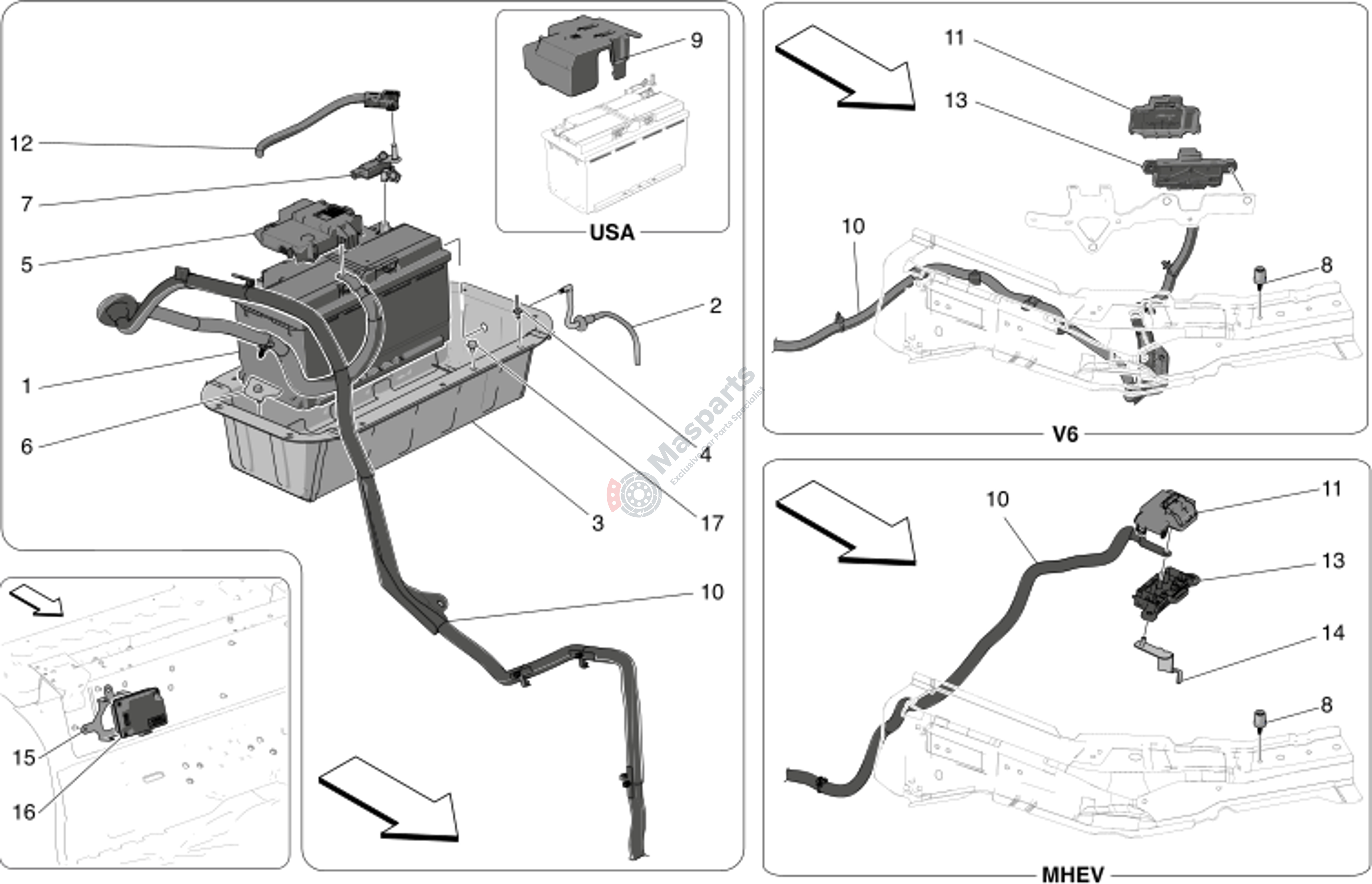

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675002117 | Battery Vent Pipe |
$10.88 |
|
|
| 3 | M-670157482 | Battery Housing Assembly |
$101.89 |
|
|
| 4 | M-675002144 | Rivet |
$0.80 |
|
|
| 5 | M-670158275 | Fuse Battery Ecu |
$131.17 |
|
|
| 6 | M-675002126 | Battery Bracket |
$12.78 |
|
|
| 7 | M-675001320 | Battery Sensor |
$121.24 |
|
|
| 8 | M-675001470 | Pin |
$11.34 |
|
|
| 10 | M-670157667 | Positive Battery Cable |
$183.84 |
|
|
| 11 | M-675001229 | Control Unit Cover |
$9.46 |
|
|
| 12 | M-670157740 | Ground Cable |
$39.08 |
|
|
| 13 | M-670158303 | Derivation Box |
$34.55 |
|
|
| 14 | M-675001823 | Bracket |
$5.67 |
|
|
| 15 | M-675002116 | Bracket |
$9.58 |
|
|
| 16 | M-675001817 | Inverter Power Converter(230 |
$173.90 |
|
|
| 17 | M-670294943 | Screw |
$1.50 |
|
