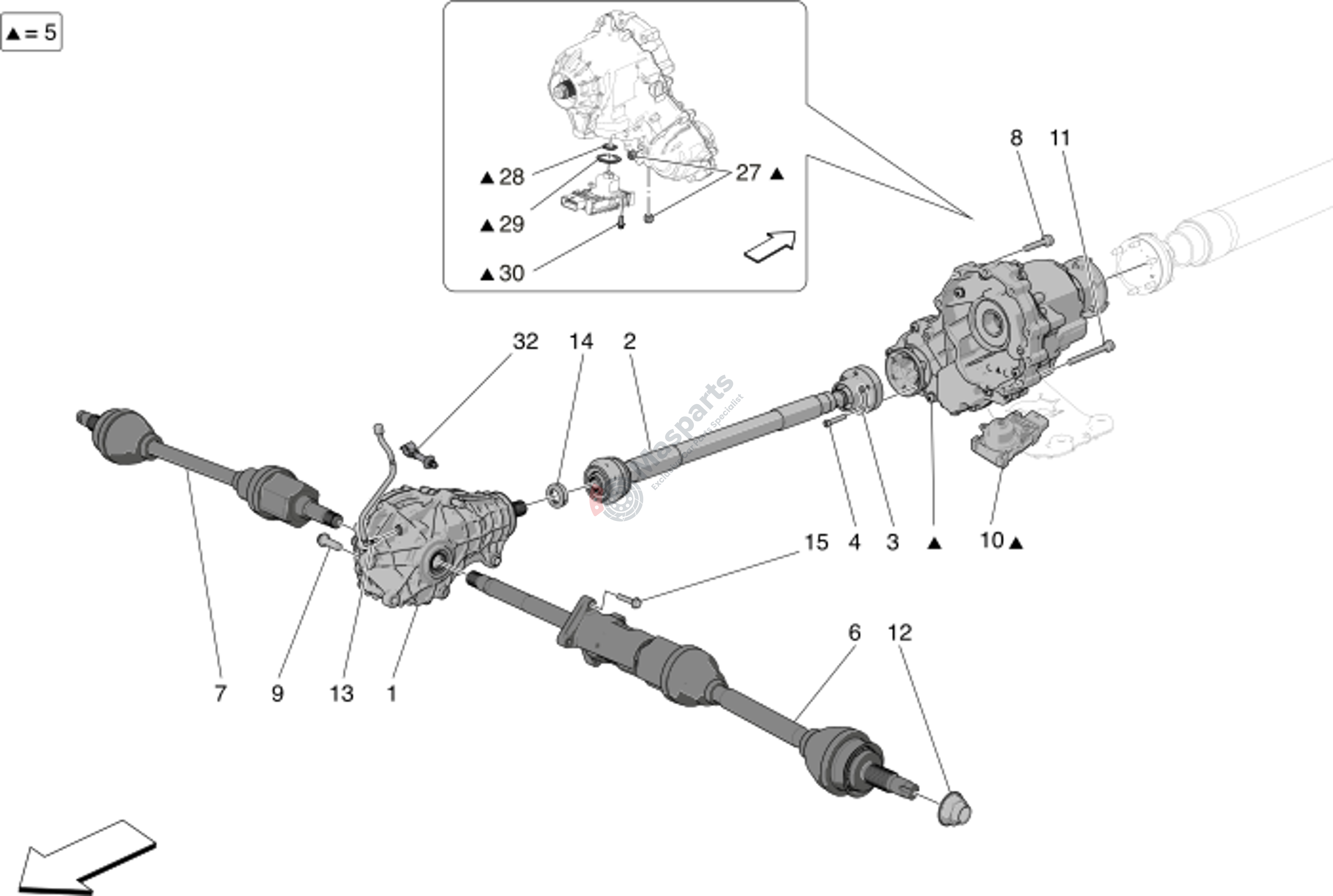

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154264 | Differential |
€1.661,52 |
|
|
| 2 | M-46341887 | Drive Shaft |
€589,72 |
|
|
| 3 | M-670003772 | Plate |
€3,13 |
|
|
| 4 | M-670302678 | Screw |
€1,88 |
|
|
| 5 | M-670154265 | Awd Transfer Case |
€1.075,48 |
|
|
| 6 | M-675001727 | Axle Shaft |
€191,36 |
|
|
| 7 | M-675001726 | Front Axle Shaft |
€111,32 |
|
|
| 8 | M-675001849 | Screw |
€2,12 |
|
|
| 9 | M-675001859 | Screw |
€2,48 |
|
|
| 10 | M-670175707 | Transfer Case Control Unit |
€453,22 |
|
|
| 11 | M-675001850 | Screw |
€2,66 |
|
|
| 12 | M-675000138 | Nut |
€7,54 |
|
|
| 13 | M-46349268 | Oil Pipe |
€14,45 |
|
|
| 14 | M-675000719 | Gasket |
€2,39 |
|
|
| 15 | M-675001934 | Screw |
€0,93 |
|
|
| 27 | M-673015767 | Oil Plug |
€2,00 |
|
|
| 28 | M-673015768 | Seal O-Ring |
€1,25 |
|
|
| 29 | M-673015772 | Sealing |
€3,55 |
|
|
| 30 | M-673015774 | Ecu Fastener |
€2,09 |
|
|
| 32 | M-46350326 | Pipe Retaining Clip |
€2,09 |
|
