The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

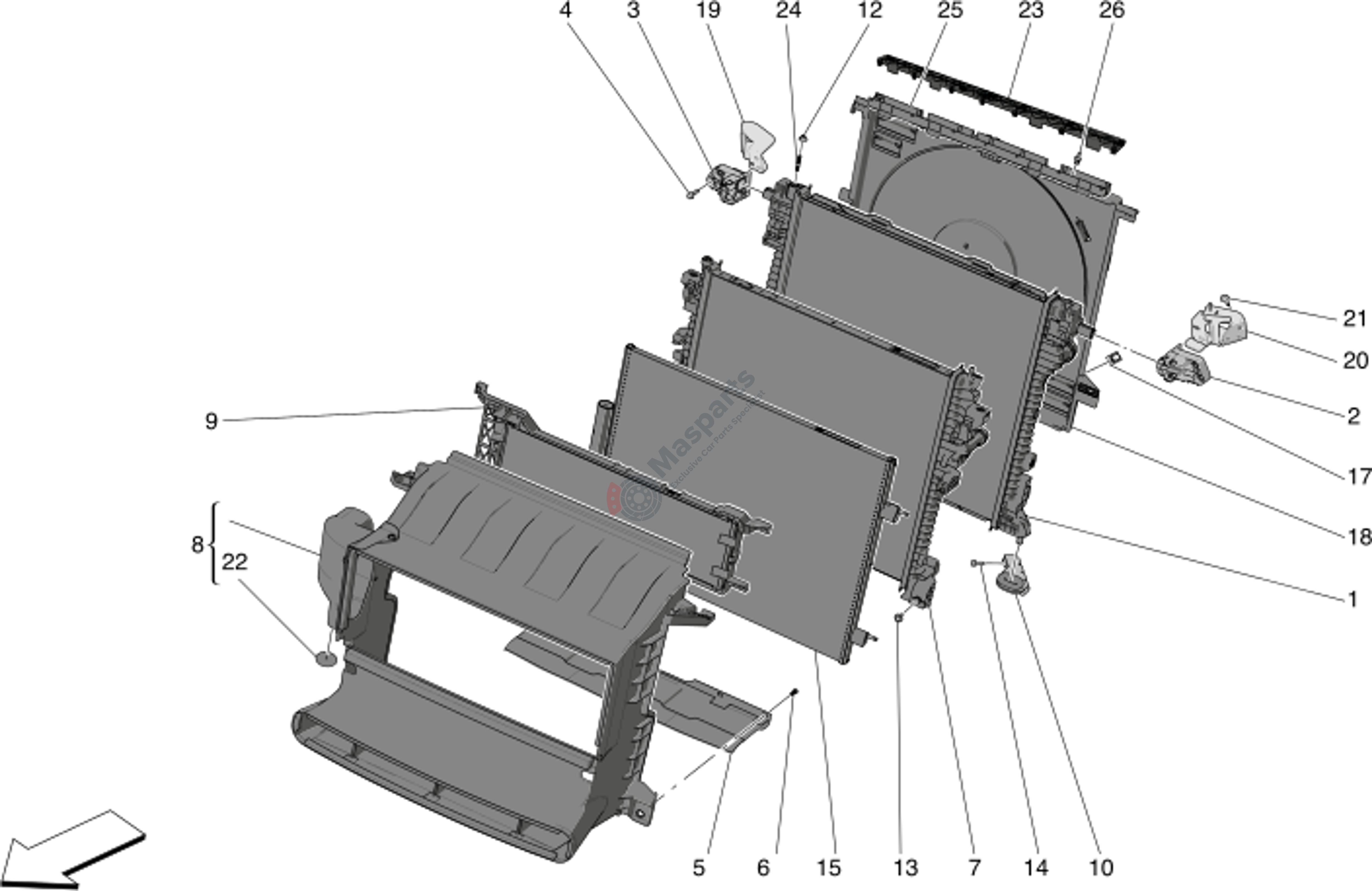

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001943 | Radiator |
$501.55 |
|
|
| 2 | M-675002060 | Bracket |
$34.50 |
|
|
| 3 | M-675002059 | Bracket |
$34.50 |
|
|
| 4 | M-675001933 | Screw |
$1.48 |
|
|
| 5 | M-675002068 | Plate |
$51.53 |
|
|
| 6 | M-675002069 | Screw |
$0.72 |
|
|
| 7 | M-675001945 | Radiator |
$495.74 |
|
|
| 8 | M-670181751 | Conveyor |
$157.82 |
|
|
| 9 | M-670161225 | Oil Radiator |
$328.23 |
|
|
| 10 | M-675001561 | Right Bracket Lower |
$17.36 |
|
|
| 12 | M-675001063 | Nut |
$1.23 |
|
|
| 13 | M-675001053 | Screw |
$1.58 |
|
|
| 14 | M-675001119 | Screw |
$0.79 |
|
|
| 15 | M-675001449 | A.C. Condenser |
$625.48 |
|
|
| 17 | M-675001040 | Plate |
$1.24 |
|
|
| 18 | M-675001942 | Fan |
$904.19 |
|
|
| 19 | M-670218079 | Rh Bracket |
$21.69 |
|
|
| 20 | M-675002110 | Lh Bracket |
$23.76 |
|
|
| 21 | M-675001070 | Screw |
$1.41 |
|
|
| 22 | M-675001452 | Valve |
$4.64 |
|
|
| 23 | M-675001610 | Cover |
$12.83 |
|
|
| 24 | M-675002067 | Fixing |
$10.74 |
|
|
| 25 | M-675002070 | Clip |
$15.73 |
|
|
| 26 | M-675002071 | Rivet |
$1.16 |
|
