Diagram image not available

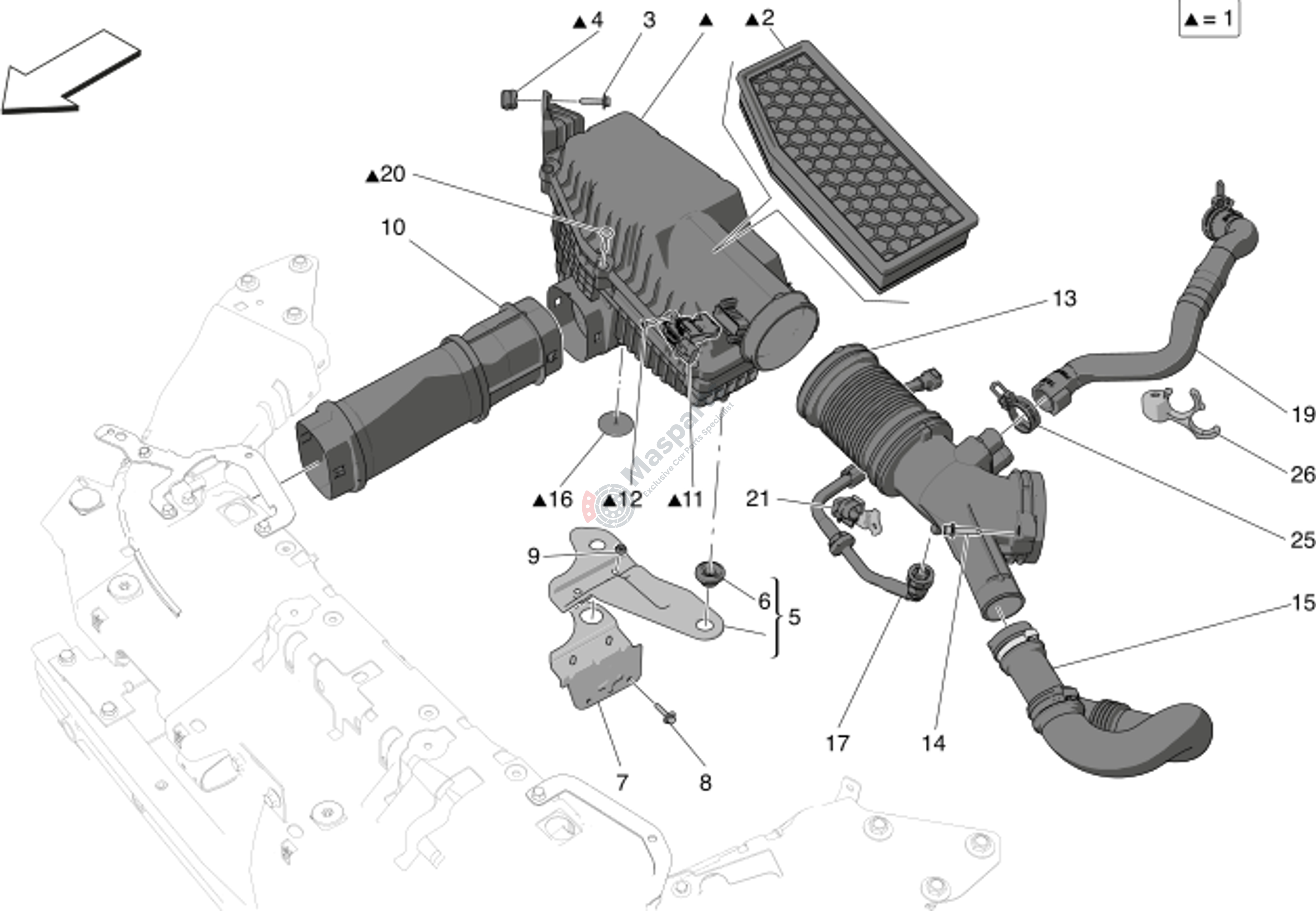

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670156354 | Air Filter |
€150,45 |
|
|
| 2 | M-670161180 | Air Filter |
€45,53 |
|
|
| 3 | M-675001078 | Screw |
€1,67 |
|
|
| 4 | M-675000284 | Flexible Pad |
€9,02 |
|
|
| 5 | M-670214838 | Bracket |
€31,74 |
|
|
| 6 | M-675000018 | Rubber Bushing |
€4,19 |
|
|
| 7 | M-675001605 | Air Filter Support Lower Bra |
€14,90 |
|
|
| 8 | M-675001078 | Screw |
€1,67 |
|
|
| 9 | M-675000969 | Nut |
€0,83 |
|
|
| 10 | M-670156363 | Tube |
€49,30 |
|
|
| 11 | M-46350761 | Debimeter |
€100,62 |
|
|
| 12 | M-675001451 | Screw |
€1,98 |
|
|
| 13 | M-670156370 | Tube |
€92,65 |
|
|
| 14 | M-675000434 | Screw |
€3,93 |
|
|
| 15 | M-670156374 | Tube |
€43,78 |
|
|
| 16 | M-675001452 | Valve |
€3,86 |
|
|
| 17 | M-670156721 | Pipe |
€35,45 |
|
|
| 19 | M-670054096 | Flexible Pipe |
€89,25 |
|
|
| 20 | M-675001150 | Screw |
€1,66 |
|
|
| 21 | M-670154518 | Bracket |
€8,65 |
|
|
| 25 | M-675001954 | Collar |
€2,80 |
|
|
| 26 | M-670053111 | Clip |
€1,46 |
|
