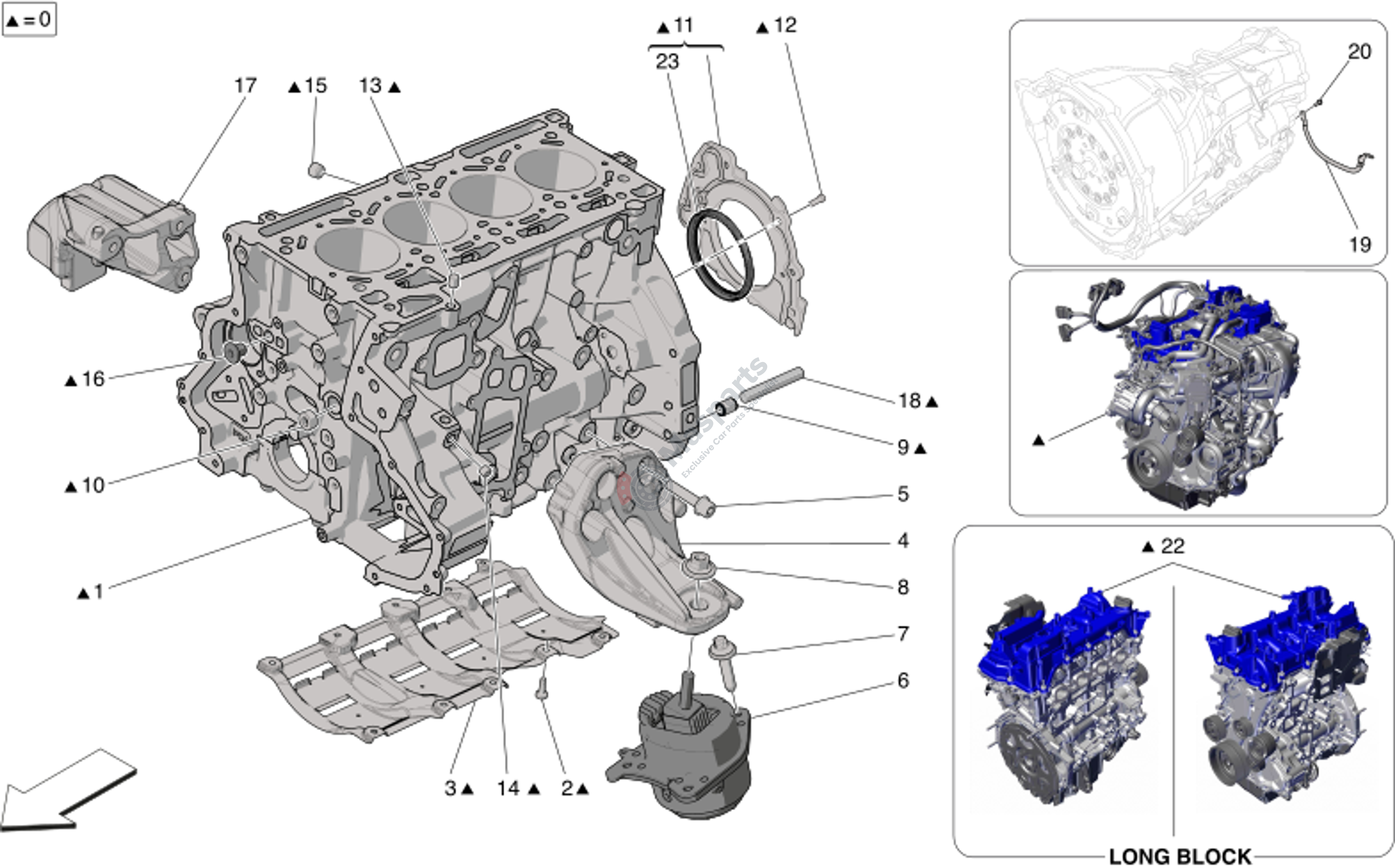

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 0 | M-670054411 | Complete Engine Mhev M182 |
$11,823.70 |
|
|
| 1 | M-670054052 | Cpl Crankcase Mhev |
$3,168.98 |
|
|
| 2 | M-675000844 | Screw |
$2.85 |
|
|
| 3 | M-675000923 | Oil Sump Guard |
$18.34 |
|
|
| 4 | M-675001971 | Engine Support |
$222.94 |
|
|
| 5 | M-675001128 | Screw |
$2.52 |
|
|
| 6 | M-675001603 | Block |
$212.04 |
|
|
| 7 | M-675001345 | Screw |
$2.28 |
|
|
| 8 | M-675001507 | Nut |
$3.42 |
|
|
| 9 | M-675000841 | Dowel |
$2.21 |
|
|
| 10 | M-675000836 | Plug |
$2.11 |
|
|
| 12 | M-675000873 | Screw |
$2.60 |
|
|
| 13 | M-675000891 | Cylindrical Plug |
$4.72 |
|
|
| 14 | M-675000835 | Threaded Plug |
$1.76 |
|
|
| 15 | M-675000837 | Threaded Plug |
$1.13 |
|
|
| 16 | M-675000874 | Threaded Plug |
$2.12 |
|
|
| 17 | M-675001972 | Engine Support |
$246.72 |
|
|
| 18 | M-675000881 | Threaded Rod |
$4.84 |
|
|
| 20 | M-16288424 | Screw |
$7.88 |
|
