The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

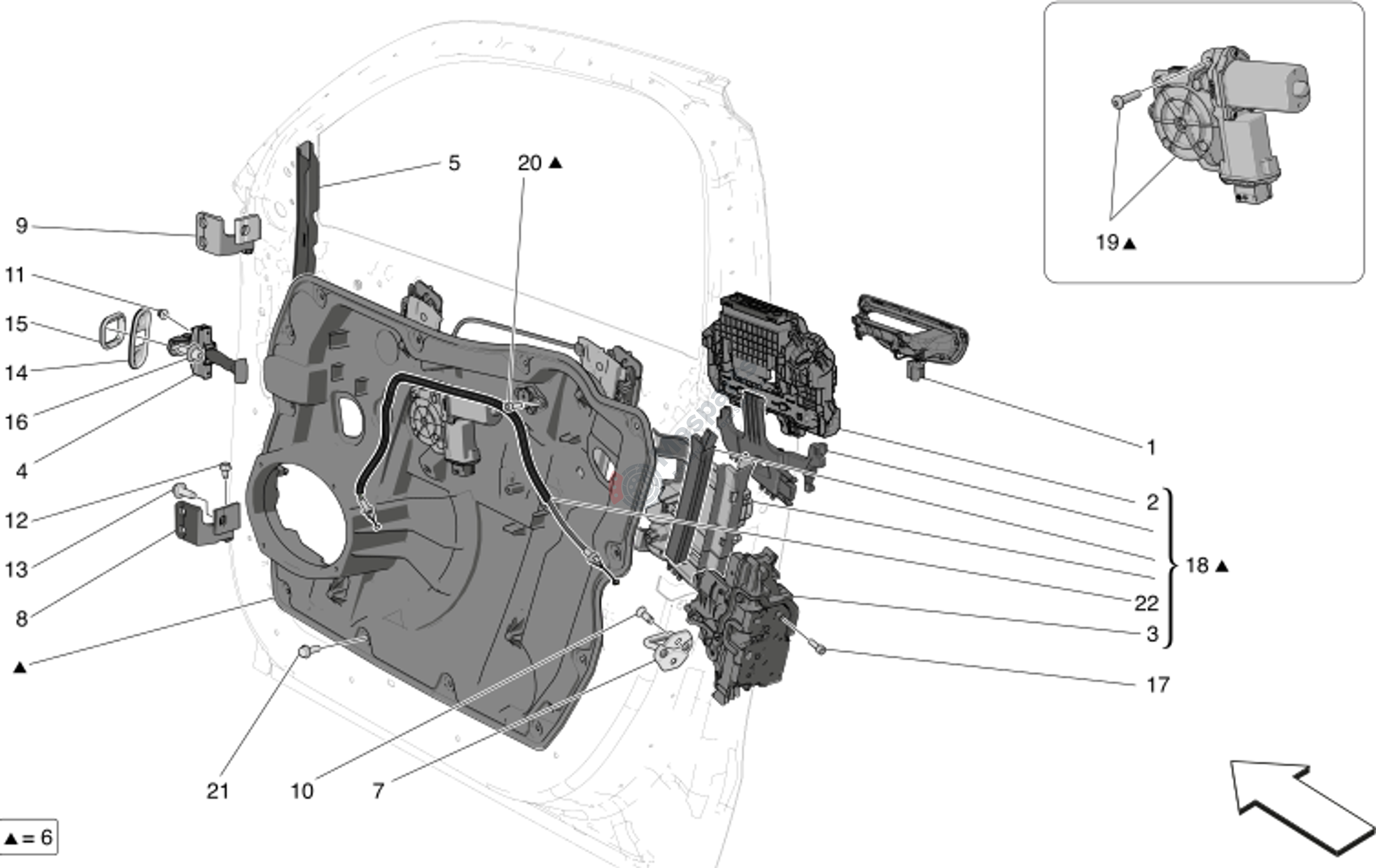

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670157748 | Rh External Door Handle Brac |
$136.78 |
|
|
| 3 | M-670157568 | Rh Front Door Lock Lhd |
$405.03 |
|
|
| 4 | M-670157566 | Tie Rod |
$23.02 |
|
|
| 5 | M-675002106 | Front Rh Window Run Channel |
$15.26 |
|
|
| 6 | M-673014121 | Complete Front Right Door Mo |
$512.12 |
|
|
| 7 | M-670175119 | Doors Lock Striker |
$10.60 |
|
|
| 8 | M-675002132 | Rh Front Lower Hinge |
$50.79 |
|
|
| 9 | M-675002130 | Rh Front Upper Hinge |
$50.79 |
|
|
| 10 | M-675001811 | Screw |
$0.96 |
|
|
| 11 | M-675001318 | Nut |
$1.24 |
|
|
| 12 | M-675000005 | Special Screw |
$2.30 |
|
|
| 13 | M-675000485 | Special Screw |
$1.58 |
|
|
| 14 | M-675001584 | Front Door Gasket |
$2.69 |
|
|
| 15 | M-675001528 | Front Door Gasket |
$3.33 |
|
|
| 16 | M-670006984 | Screw |
$2.36 |
|
|
| 17 | M-675001327 | Screw |
$0.96 |
|
|
| 18 | M-673014106 | Front Dx Gsx Presenter Kit |
$517.38 |
|
|
| 19 | M-673014110 | Front Right Gear Motor Kit |
$130.29 |
|
|
| 20 | M-673014113 | Rear Sensor Fixing Screws |
$10.32 |
|
|
| 21 | M-675001669 | Screw |
$0.93 |
|
|
| 22 | M-673014112 | Remote Control Opening Front |
$65.97 |
|
