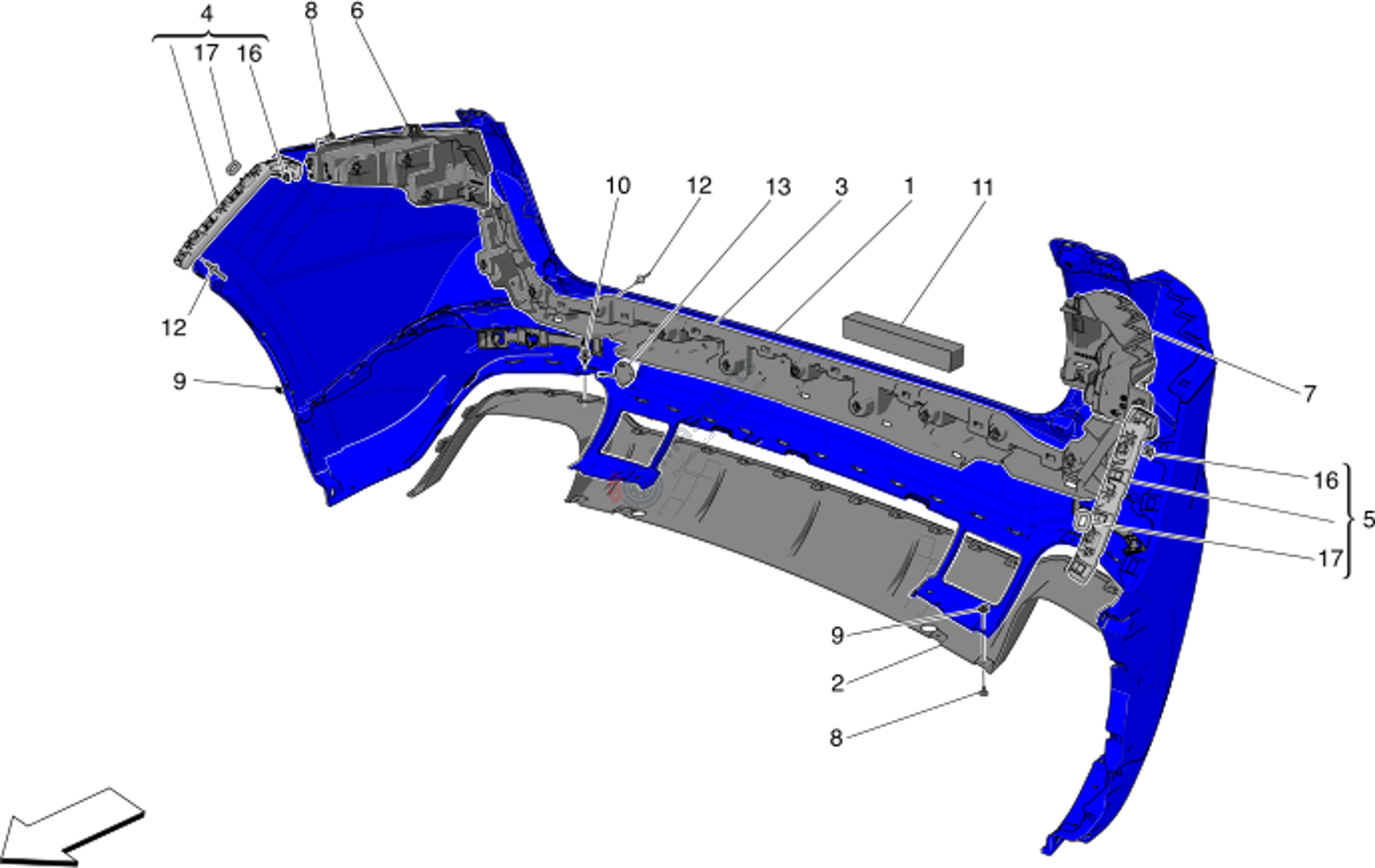

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-670157226 | Central Bracket |
$33.25 |
|
|
| 4 | M-670157267 | Complete Bracket Right Mount |
$9.56 |
|
|
| 5 | M-670157266 | Complete Bracket Fixing Left |
$9.56 |
|
|
| 6 | M-670157222 | Complete Bracket Right Mount |
$20.76 |
|
|
| 7 | M-670157223 | Complete Bracket Fixing Left |
$20.76 |
|
|
| 8 | M-675001390 | Screw |
$2.09 |
|
|
| 9 | M-675001674 | Fastening Clip |
$1.18 |
|
|
| 10 | M-675001608 | Plastic Snap Fastener |
$1.01 |
|
|
| 11 | M-675000635 | Pad |
$9.00 |
|
|
| 12 | M-675000323 | Rivet |
$1.90 |
|
|
| 16 | M-675002034 | Fastening Clip |
$1.27 |
|
|
| 17 | M-675000064 | Gasket |
$2.87 |
|
