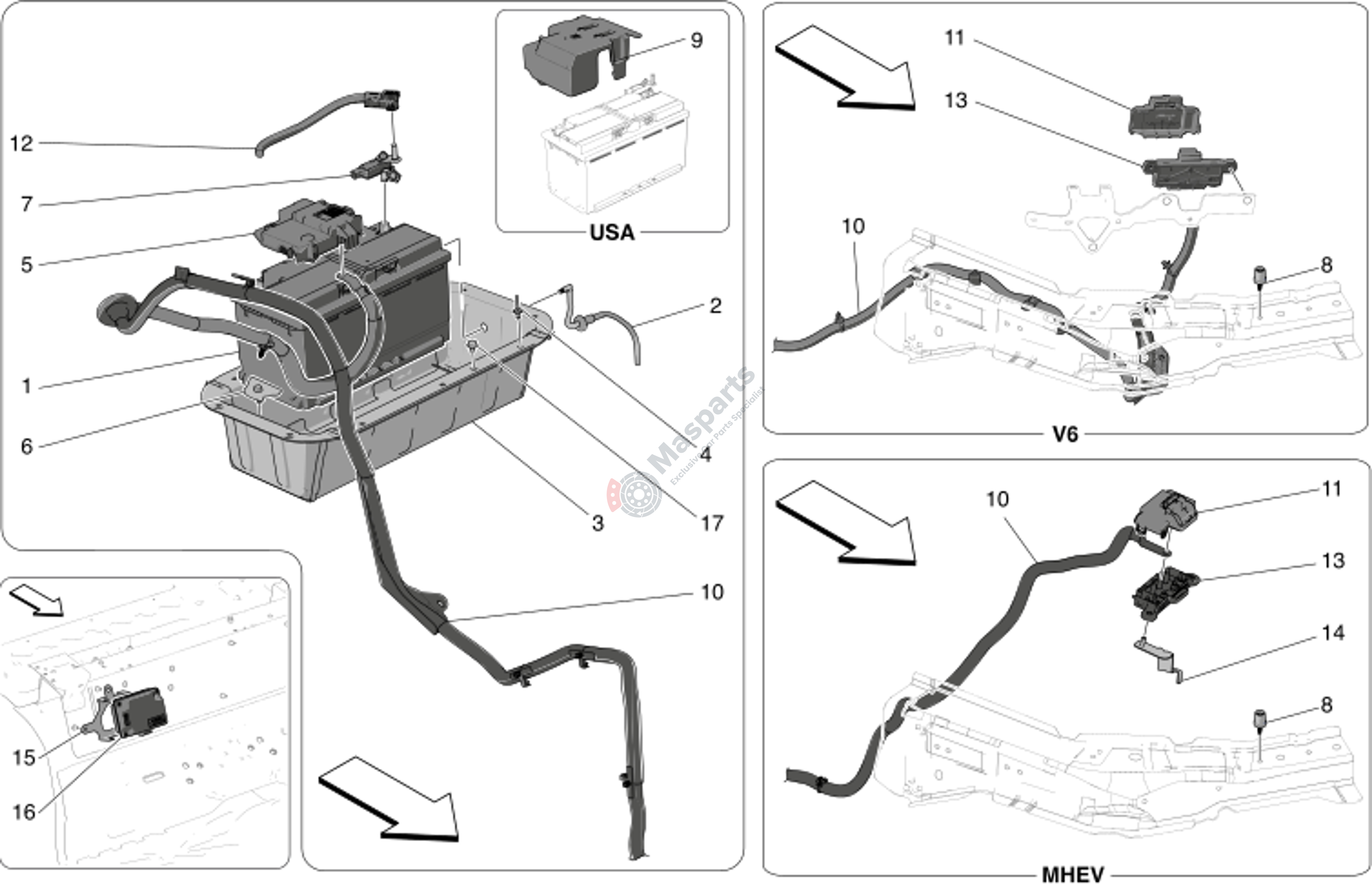

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675002117 | Battery Vent Pipe |
$10.98 |
|
|
| 4 | M-675002144 | Rivet |
$0.80 |
|
|
| 5 | M-670158275 | Fuse Battery Ecu |
$132.33 |
|
|
| 6 | M-675002126 | Battery Bracket |
$12.89 |
|
|
| 7 | M-675001320 | Battery Sensor |
$122.31 |
|
|
| 8 | M-675001470 | Pin |
$11.44 |
|
|
| 11 | M-675001229 | Control Unit Cover |
$9.54 |
|
|
| 12 | M-670157740 | Ground Cable |
$39.43 |
|
|
| 13 | M-670158303 | Derivation Box |
$34.85 |
|
|
| 14 | M-675001823 | Bracket |
$5.72 |
|
|
| 15 | M-675002116 | Bracket |
$9.66 |
|
|
| 17 | M-670294943 | Screw |
$1.51 |
|
