Diagram image not available

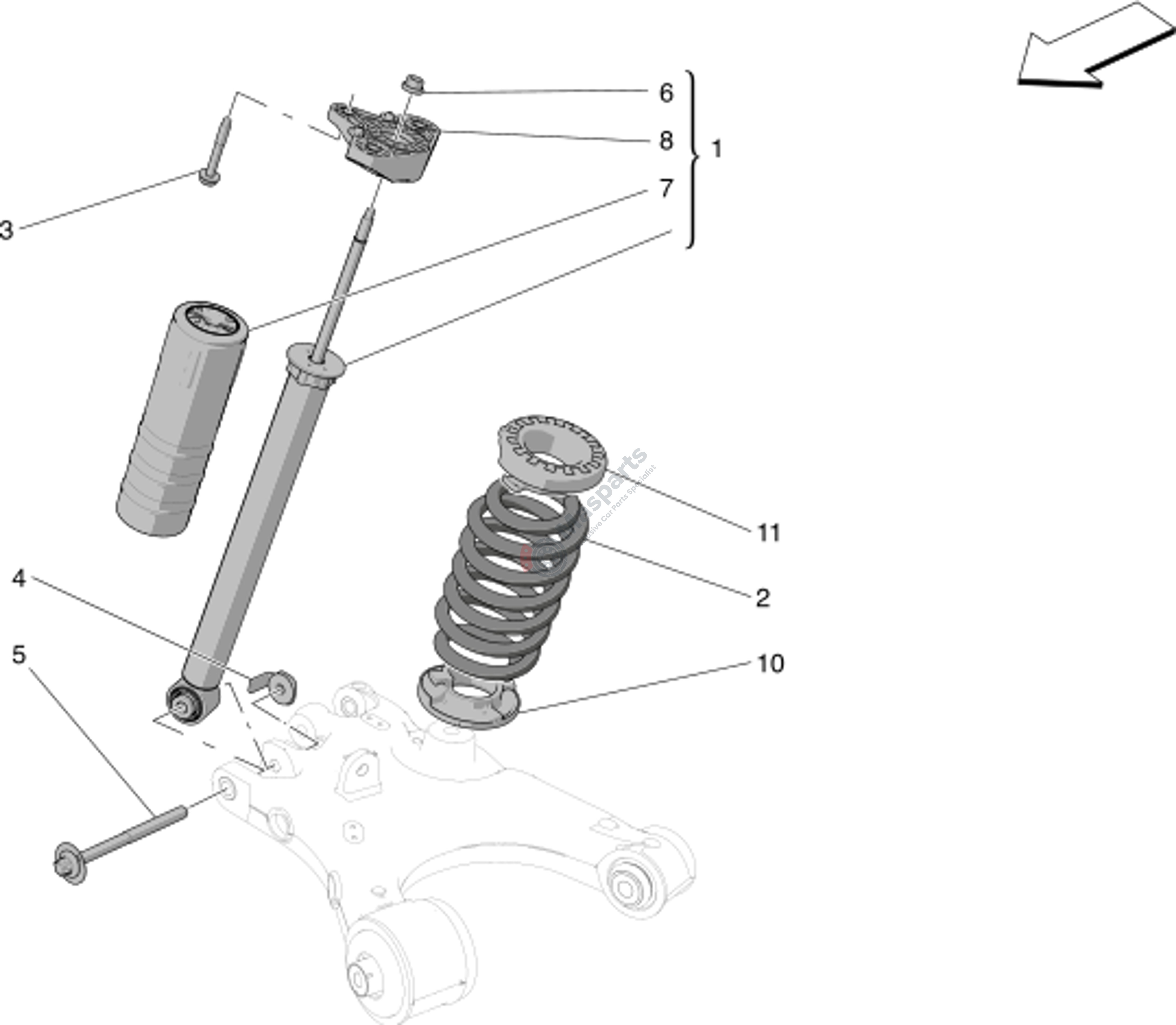

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670161322 | Rear Suspension |
$588.47 |
|
|
| 3 | M-675001087 | Screw |
$1.70 |
|
|
| 4 | M-675001532 | Nut |
$8.24 |
|
|
| 5 | M-675001831 | Screw |
$5.87 |
|
|
| 6 | M-675002064 | Nut |
$2.13 |
|
|
| 7 | M-675001984 | Block |
$38.03 |
|
|
| 8 | M-675001982 | Elastic Block |
$39.73 |
|
|
| 10 | M-675001497 | Ring |
$18.57 |
|
|
| 11 | M-675001498 | Ring |
$17.37 |
|
