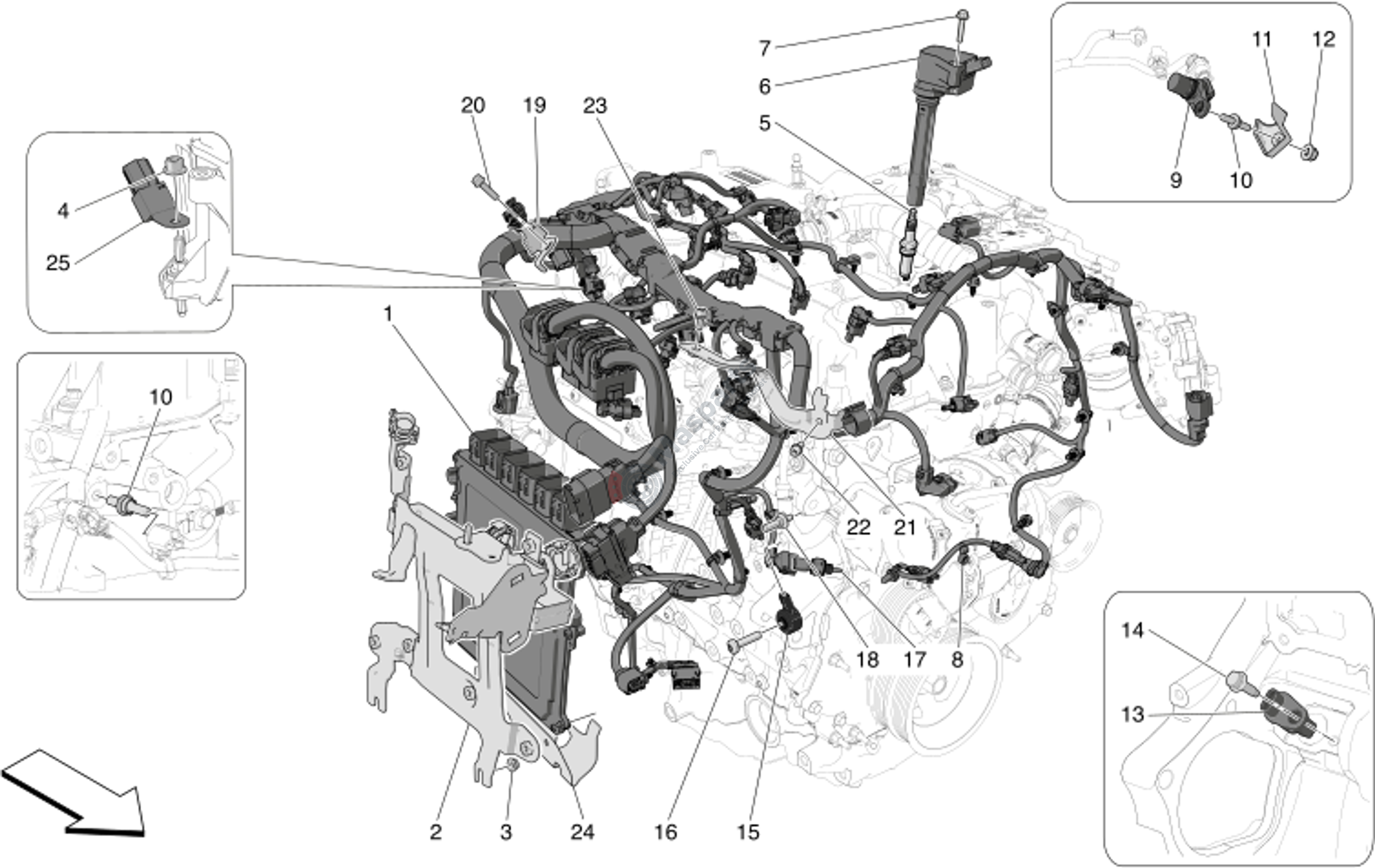

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670181238 | Egine Ecu |
$1,261.92 |
|
|
| 2 | M-670156715 | Bracket For Electr. Iniez/Ac |
$48.08 |
|
|
| 3 | M-675000969 | Nut |
$0.98 |
|
|
| 4 | M-675000957 | Nut |
$1.48 |
|
|
| 5 | M-675000934 | Spark Plug |
$22.47 |
|
|
| 6 | M-670053141 | Coil |
$94.78 |
|
|
| 7 | M-675000972 | Screw |
$4.85 |
|
|
| 8 | M-670054402 | Engine Wiring Harness |
$1,446.66 |
|
|
| 9 | M-675002367 | Camshaft Position Sensor |
$46.13 |
|
|
| 10 | M-675000898 | Threaded Rod |
$4.84 |
|
|
| 11 | M-675000899 | Sensor Cover |
$5.74 |
|
|
| 12 | M-675000896 | Nut Nut&Washer Hex Cone Wash |
$2.81 |
|
|
| 14 | M-675000919 | Screw |
$2.05 |
|
|
| 16 | M-675000917 | Screw |
$2.05 |
|
|
| 18 | M-675000915 | Threaded Rod |
$4.71 |
|
|
| 19 | M-675001970 | Soundproofing Bracket |
$7.91 |
|
|
| 20 | M-675001017 | Screw |
$2.09 |
|
|
| 21 | M-675001151 | Bracket |
$9.59 |
|
|
| 22 | M-675000172 | Screw |
$1.00 |
|
|
| 23 | M-675001016 | Screw |
$1.38 |
|
|
| 24 | M-670178869 | Motor Control Unit Mounting |
$21.32 |
|
|
| 25 | M-675000956 | Condenser |
$4.55 |
|
