Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

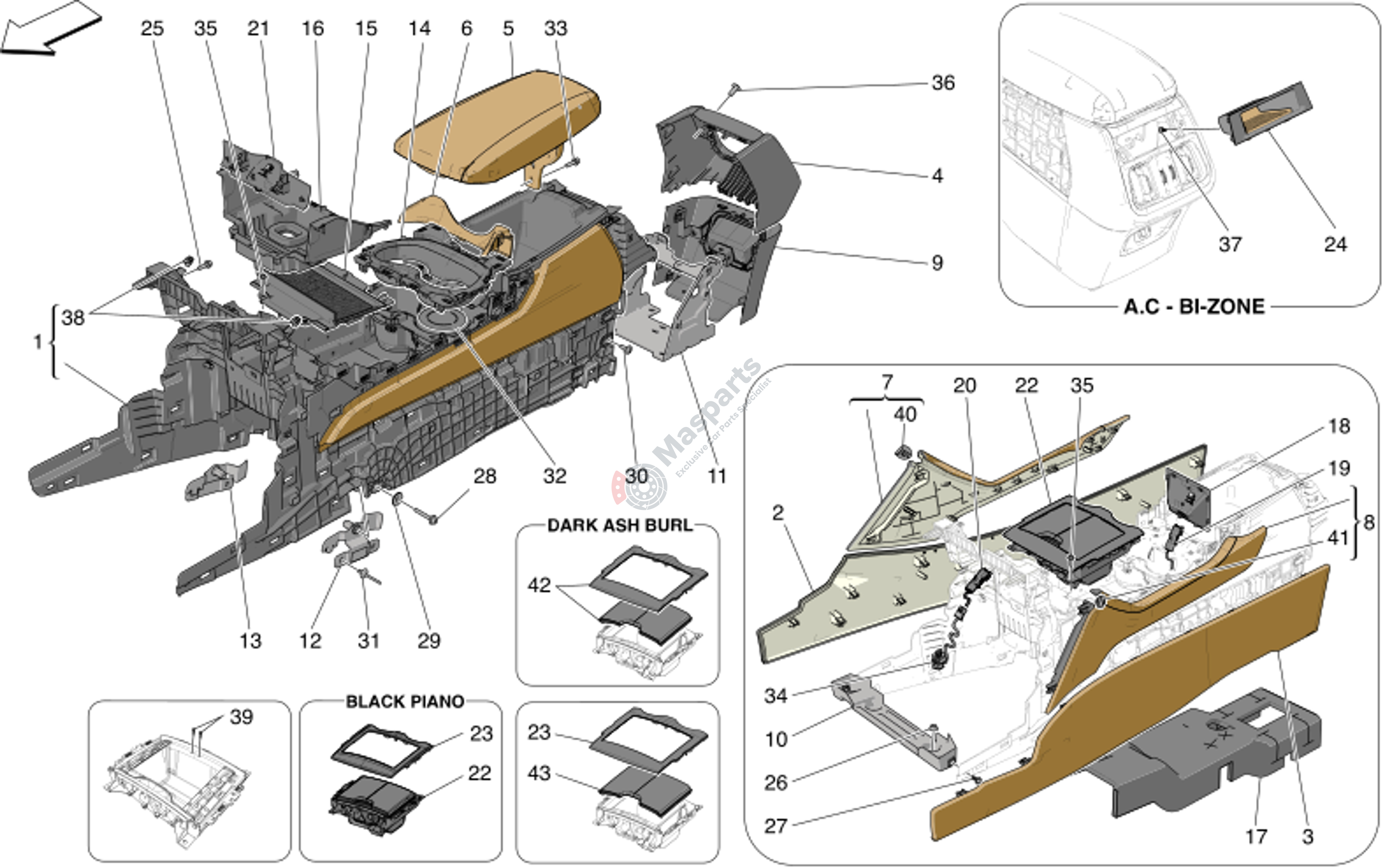

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 10 | M-675002024 | Bracket |
$12.77 |
|
|
| 11 | M-675002025 | Post Bracket |
$37.89 |
|
|
| 12 | M-675002026 | Left Bracket |
$11.45 |
|
|
| 13 | M-675002028 | Right Bracket |
$11.45 |
|
|
| 16 | M-670161953 | Insulation |
$50.18 |
|
|
| 17 | M-670174996 | Central Console Insulation |
$40.61 |
|
|
| 19 | M-670159387 | Domelight |
$10.56 |
|
|
| 25 | M-675000246 | Screw |
$1.50 |
|
|
| 26 | M-675000095 | Nut |
$0.79 |
|
|
| 27 | M-675001491 | Screw |
$1.01 |
|
|
| 28 | M-670009437 | Screw And Washer (Hex.Head M |
$2.99 |
|
|
| 29 | M-675002023 | Roset 6X21 |
$1.02 |
|
|
| 30 | M-675001974 | Screw |
$0.90 |
|
|
| 31 | M-675001915 | Rivet |
$1.14 |
|
|
| 32 | M-673013365 | Cup Holder Mat |
$30.70 |
|
|
| 33 | M-675002021 | Screw |
$1.54 |
|
|
| 34 | M-670214751 | Shield Connection Wiring |
$8.21 |
|
|
| 35 | M-670220002 | Screw |
$0.99 |
|
|
| 35 | M-670220002 | Screw |
$0.99 |
|
|
| 36 | M-675002027 | Screw |
$0.90 |
|
|
| 37 | M-675001049 | Screw |
$1.12 |
|
|
| 38 | M-673015637 | Clip Tunnel |
$1.01 |
|
