Diagram image not available

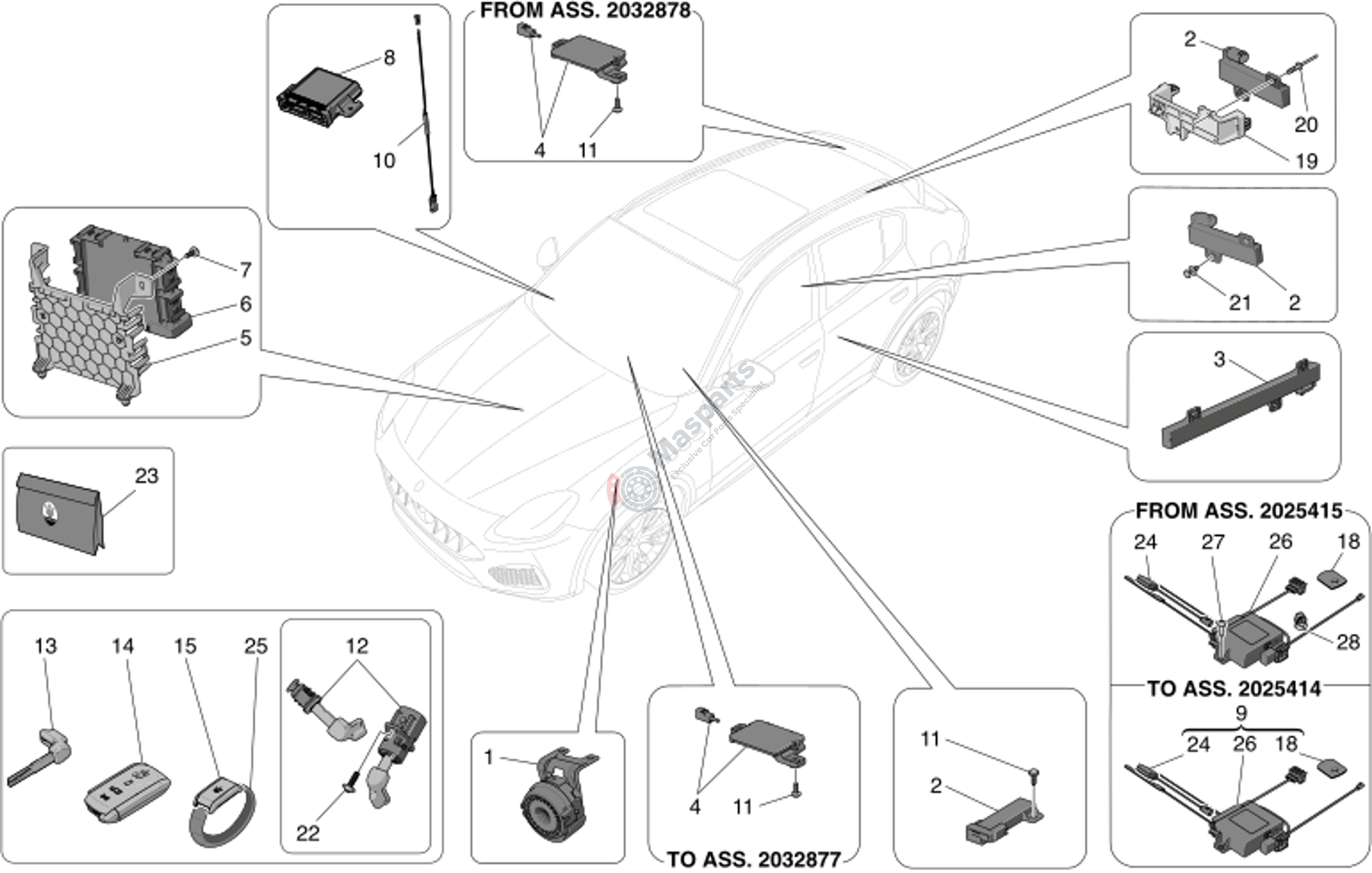

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670221003 | Alarm System Siren With Brac |
$101.25 |
|
|
| 2 | M-675000207 | Passive Entry Antenna |
$20.65 |
|
|
| 3 | M-670157625 | Rear Door Panel Passive Entr |
$63.46 |
|
|
| 4 | M-675002208 | Remote Start Antenna |
$11.33 |
|
|
| 5 | M-670175514 | Gateway Node Bracket |
$27.09 |
|
|
| 6 | M-670295597 | Ecu Security Gateway Row |
$937.32 |
|
|
| 7 | M-675001491 | Screw |
$1.02 |
|
|
| 8 | M-670159939 | Passive Entry Module Rfm Hub |
$568.42 |
|
|
| 11 | M-675001491 | Screw |
$1.02 |
|
|
| 19 | M-670179003 | Right Bracket |
$12.55 |
|
|
| 20 | M-675002061 | Rivet |
$0.73 |
|
|
| 21 | M-675001615 | Plastic Snap Fastener |
$2.02 |
|
|
| 22 | M-673014114 | Pawl Fastening Screws |
$13.71 |
|
