Diagram image not available

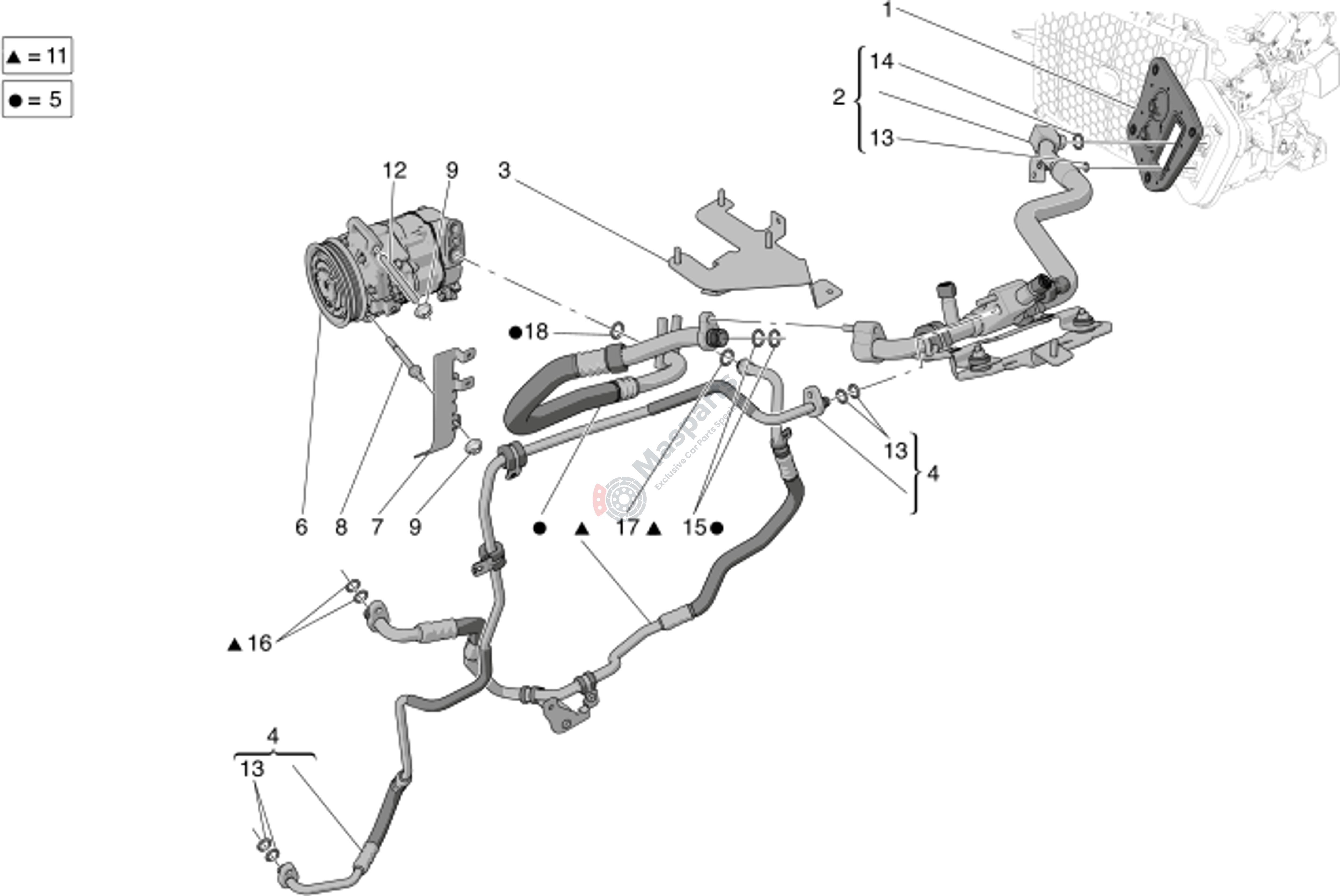

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001734 | A/C Gasket |
$11.65 |
|
|
| 2 | M-670176386 | Lhd Evap-Union Pipe Mhev |
$182.85 |
|
|
| 3 | M-670213656 | Fixing Bracket |
$12.69 |
|
|
| 4 | M-670178585 | Lhd Condenser-Evap Pipe Mhev |
$101.90 |
|
|
| 5 | M-670156436 | Pipe Union-Compressor |
$106.66 |
|
|
| 6 | M-675001009 | Ac Compressor |
$242.85 |
|
|
| 8 | M-675001019 | Screw |
$2.39 |
|
|
| 9 | M-675001090 | Nut |
$1.02 |
|
|
| 11 | M-670156437 | Pipe A/C - Compressor |
$117.14 |
|
|
| 12 | M-675000902 | Threaded Stud |
$2.77 |
|
|
| 13 | M-675000119 | O-Ring 68X187 |
$1.93 |
|
|
| 14 | M-675000306 | O-Ring 136X243 |
$1.89 |
|
|
| 15 | M-675000306 | O-Ring 136X243 |
$1.89 |
|
|
| 16 | M-675001987 | O Ring |
$7.69 |
|
|
| 17 | M-675000122 | O-Ring 1/2 - 1234Yf |
$7.65 |
|
|
| 18 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.07 |
|
