Diagram image not available

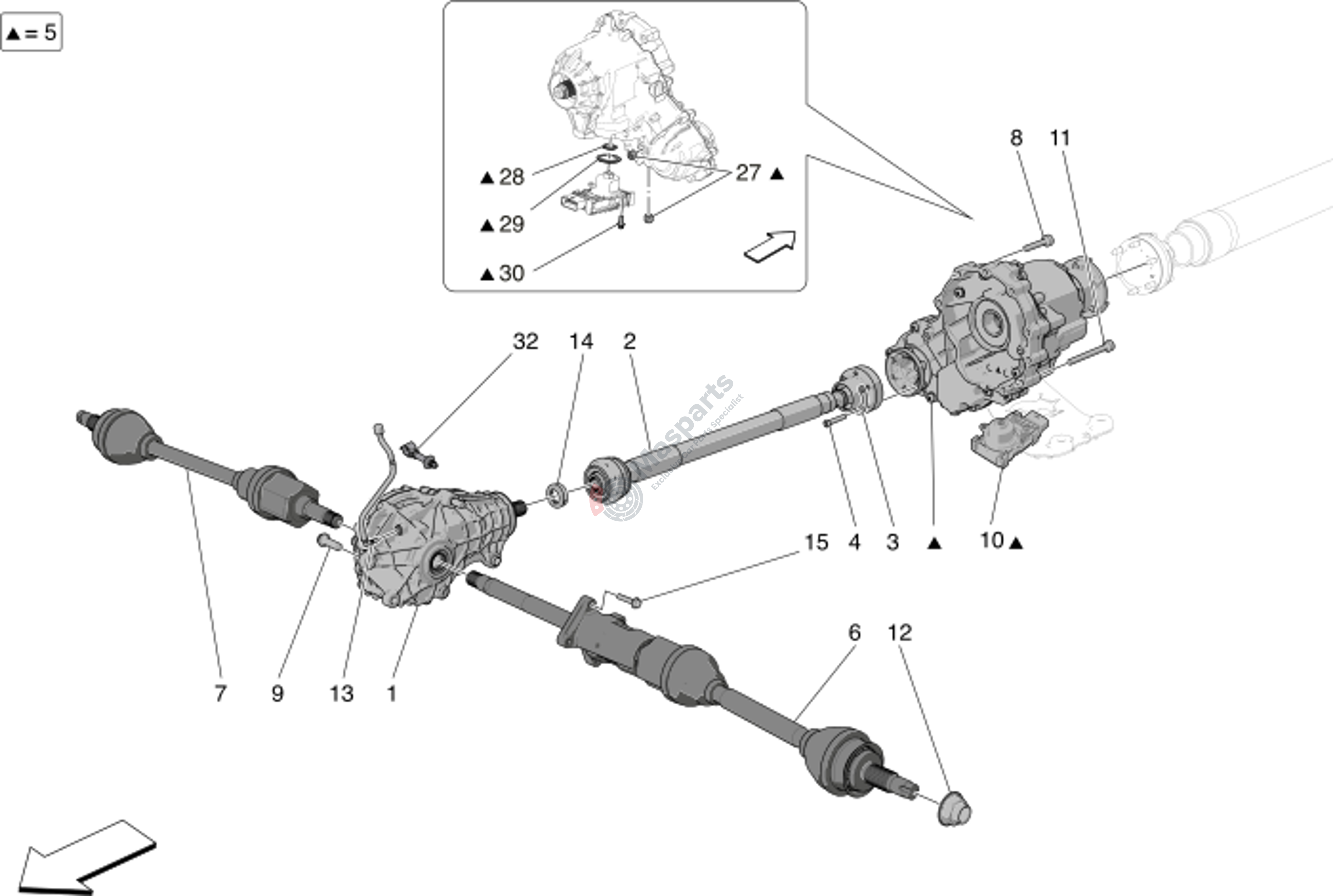

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154264 | Differential |
$1,696.22 |
|
|
| 2 | M-46341887 | Drive Shaft |
$601.92 |
|
|
| 3 | M-670003772 | Plate |
$3.66 |
|
|
| 4 | M-670302678 | Screw |
$2.29 |
|
|
| 5 | M-670154265 | Awd Transfer Case |
$1,463.59 |
|
|
| 6 | M-675001727 | Axle Shaft |
$233.67 |
|
|
| 7 | M-675001726 | Front Axle Shaft |
$133.53 |
|
|
| 8 | M-675001849 | Screw |
$2.52 |
|
|
| 9 | M-675001859 | Screw |
$2.93 |
|
|
| 10 | M-670175707 | Transfer Case Control Unit |
$542.19 |
|
|
| 11 | M-675001850 | Screw |
$3.16 |
|
|
| 12 | M-675000138 | Nut |
$8.86 |
|
|
| 13 | M-46349268 | Oil Pipe |
$17.12 |
|
|
| 14 | M-675000719 | Gasket |
$2.81 |
|
|
| 15 | M-675001934 | Screw |
$1.10 |
|
|
| 27 | M-673015767 | Oil Plug |
$2.39 |
|
|
| 28 | M-673015768 | Seal O-Ring |
$1.50 |
|
|
| 29 | M-673015772 | Sealing |
$4.22 |
|
|
| 30 | M-673015774 | Ecu Fastener |
$2.48 |
|
|
| 32 | M-46350326 | Pipe Retaining Clip |
$2.48 |
|
