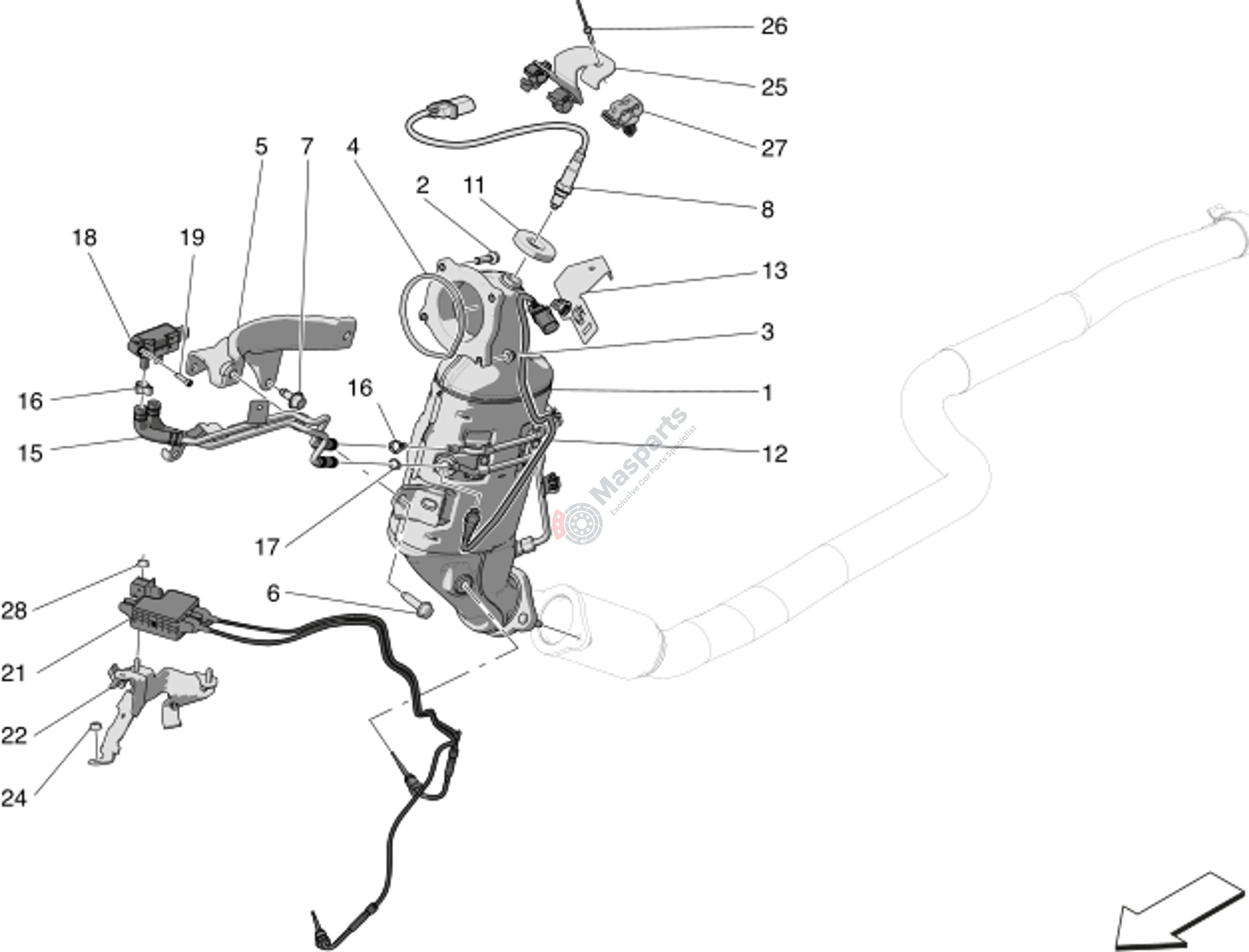

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675001006 | Screw |
$4.44 |
|
|
| 3 | M-675000780 | Nut |
$2.39 |
|
|
| 4 | M-675001005 | Gasket |
$24.33 |
|
|
| 5 | M-675001002 | Bracket |
$29.45 |
|
|
| 6 | M-675001007 | Screw |
$1.75 |
|
|
| 7 | M-675001011 | Screw |
$2.89 |
|
|
| 11 | M-675001010 | Gasket |
$10.40 |
|
|
| 13 | M-670213236 | Bracket |
$9.31 |
|
|
| 15 | M-670182192 | Rigid Pipe Exhaust Gas Press |
$86.23 |
|
|
| 16 | M-675000369 | Strap Collar |
$1.67 |
|
|
| 17 | M-675000368 | Strap Collar |
$1.90 |
|
|
| 18 | M-670175163 | Pressure Sensor |
$124.91 |
|
|
| 19 | M-675001236 | Screw |
$1.35 |
|
|
| 21 | M-675001652 | Nox Sensor |
$296.29 |
|
|
| 22 | M-675001668 | Temp Sensor Centre Bracket |
$26.91 |
|
|
| 24 | M-675000969 | Nut |
$0.97 |
|
|
| 25 | M-670175068 | Bracket |
$9.01 |
|
|
| 26 | M-675001793 | Ribact |
$2.00 |
|
|
| 27 | M-670220363 | Clip |
$2.47 |
|
|
| 28 | M-675000969 | Nut |
$0.97 |
|
