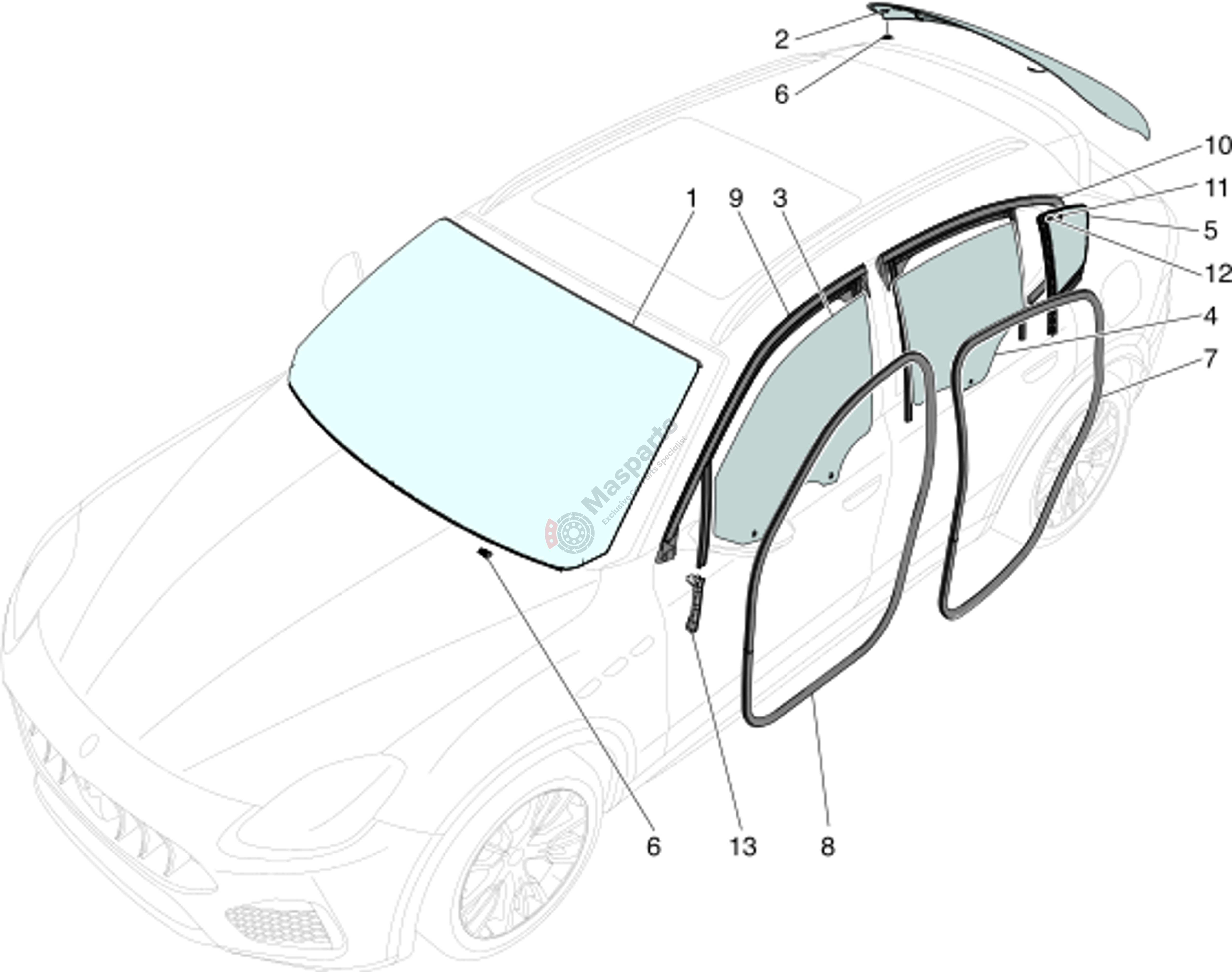

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673015675 | Windshield Glass |
$1,100.69 |
|
|
| 6 | M-675000012 | Windshield Support Pin |
$4.32 |
|
|
| 7 | M-673015847 | Door Opening Rear Gasket |
$15.21 |
|
|
| 8 | M-673015846 | Door Opening Front Gasket |
$32.82 |
|
|
| 11 | M-675001329 | Screw |
$1.21 |
|
|
| 12 | M-675001328 | Fastening Block |
$1.69 |
|
|
| 13 | M-670212813 | Front Rh Window Run Channel |
$10.36 |
|
