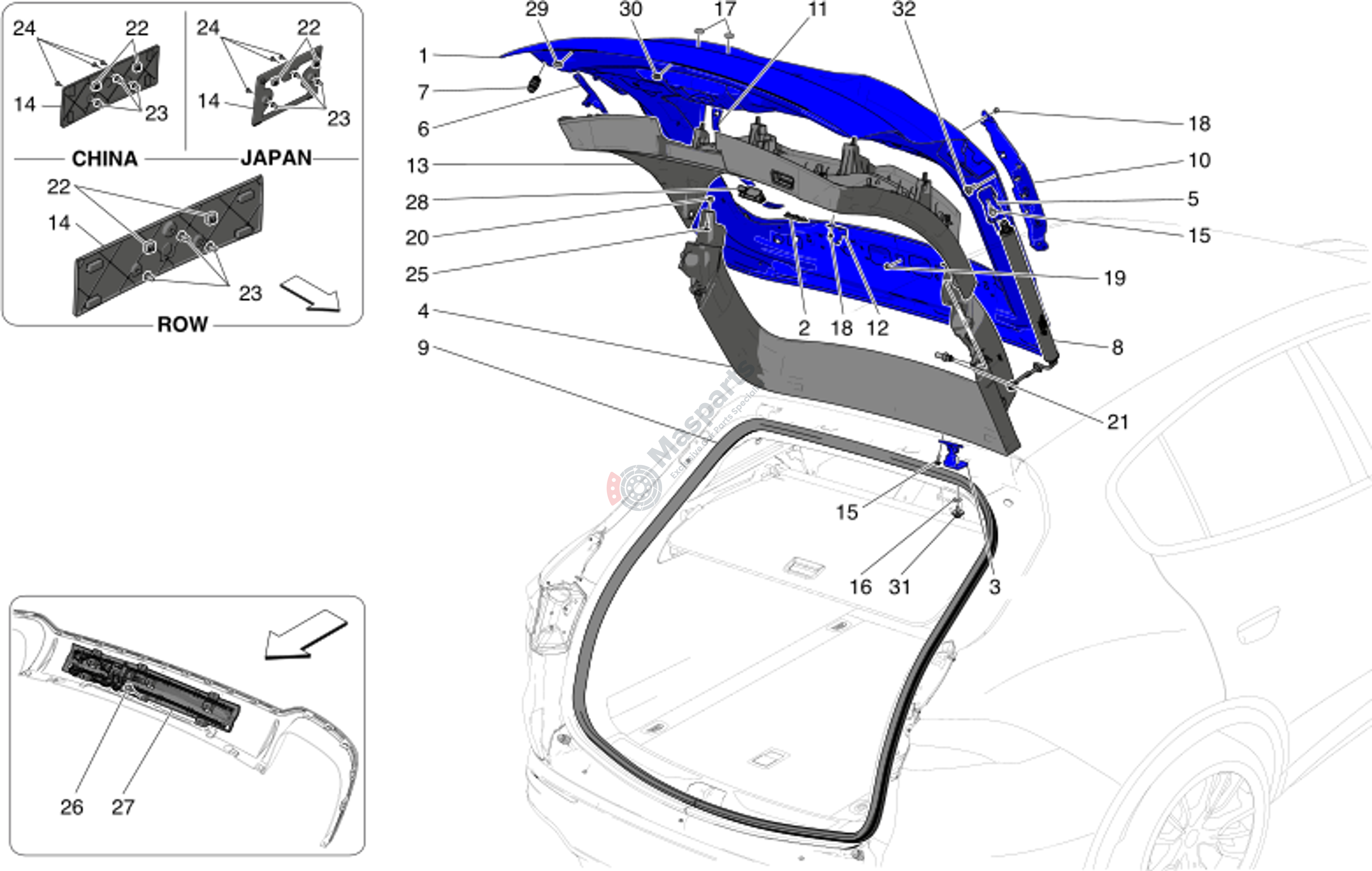

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-675002107 | Hinge |
$79.62 |
|
|
| 5 | M-670157728 | Rh Bracket |
$12.43 |
|
|
| 6 | M-670157726 | Lh Bracket |
$12.43 |
|
|
| 7 | M-675000595 | Antivibrating Pad |
$4.57 |
|
|
| 8 | M-670219600 | Decklid Shock Absorber |
$307.31 |
|
|
| 9 | M-670157705 | Trunk Gasket |
$67.37 |
|
|
| 10 | M-670174997 | Rh Bracket |
$9.00 |
|
|
| 11 | M-670174998 | Lh Bracket |
$9.00 |
|
|
| 12 | M-675002180 | Bracket |
$2.67 |
|
|
| 14 | M-670157072 | Rear License Plate Holder Ro |
$36.63 |
|
|
| 15 | M-675002162 | Screw M6X22 |
$1.33 |
|
|
| 16 | M-675000798 | Washer |
$1.12 |
|
|
| 18 | M-675002190 | Rivet |
$0.79 |
|
|
| 19 | M-675000181 | Nut |
$1.46 |
|
|
| 20 | M-675002188 | Screw |
$1.17 |
|
|
| 21 | M-670177707 | Pin |
$12.86 |
|
|
| 22 | M-675001895 | Clip |
$1.39 |
|
|
| 23 | M-675001900 | Block |
$0.93 |
|
|
| 25 | M-675001390 | Screw |
$2.01 |
|
|
| 26 | M-675001390 | Screw |
$2.01 |
|
|
| 27 | M-670157641 | Sensor Bracket |
$303.71 |
|
|
| 28 | M-675002176 | Lamp |
$18.98 |
|
|
| 29 | M-675001885 | Oval Cap |
$1.26 |
|
|
| 30 | M-675000529 | Plug |
$1.64 |
|
|
| 31 | M-675002100 | Screw |
$1.46 |
|
|
| 32 | M-670181661 | Screw |
$4.14 |
|
