Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

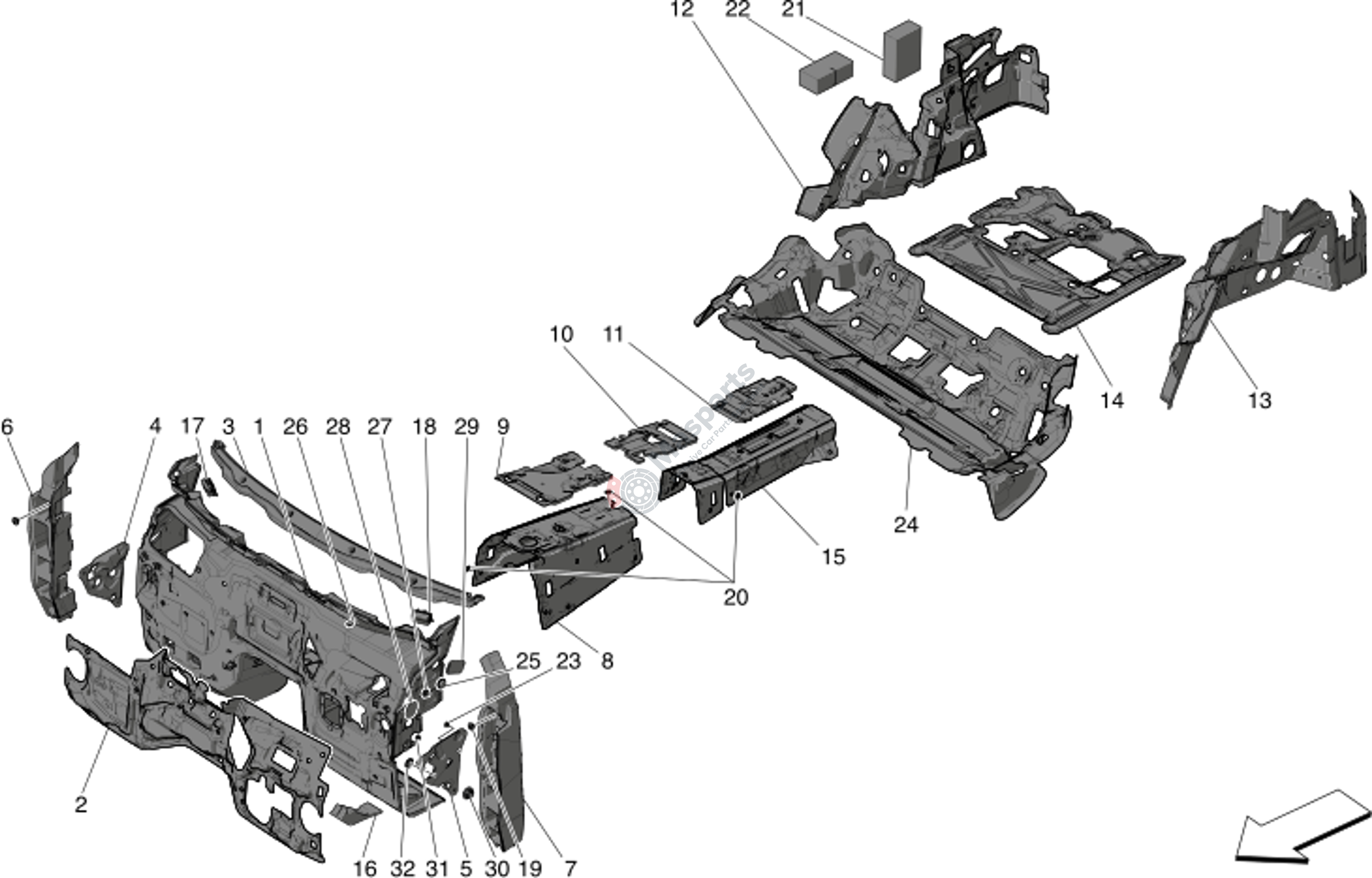

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670176746 | Lhd Dashboard Front Soundpro |
€121,44 |
|
|
| 2 | M-670176897 | Lhd Engine Compartment Insul |
€42,60 |
|
|
| 3 | M-670158049 | Dashboard Insulation |
€67,80 |
|
|
| 4 | M-670158099 | Insulation |
€22,72 |
|
|
| 5 | M-670158100 | Insulation |
€22,72 |
|
|
| 6 | M-670157929 | Front Right Mudguard Guard |
€17,48 |
|
|
| 7 | M-670157933 | Front Left Mudguard Guard |
€17,48 |
|
|
| 8 | M-670176899 | External Tunnel Soundproofin |
€72,22 |
|
|
| 9 | M-670176894 | Tunnel Insulation |
€20,24 |
|
|
| 10 | M-670176634 | Central Tunnel Insulation |
€15,18 |
|
|
| 11 | M-670176638 | Rear Tunnel Insulation |
€11,13 |
|
|
| 12 | M-670176895 | Rh Insulation |
€40,57 |
|
|
| 13 | M-670176896 | Lh Insulation |
€40,57 |
|
|
| 14 | M-670176637 | Trunk Compartment Insulation |
€35,51 |
|
|
| 15 | M-670179009 | Tunnel Insulation |
€40,57 |
|
|
| 16 | M-670216820 | Support |
€3,91 |
|
|
| 17 | M-675001760 | Closing Cap |
€35,14 |
|
|
| 18 | M-675001763 | Closing Cap |
€35,14 |
|
|
| 19 | M-675000684 | Fastening Button |
€1,46 |
|
|
| 20 | M-675000411 | Washer |
€3,13 |
|
|
| 21 | M-675001607 | Cap |
€17,48 |
|
|
| 22 | M-675001710 | Cap |
€13,25 |
|
|
| 23 | M-675001644 | Fastening Button |
€1,99 |
|
|
| 24 | M-670176756 | Insulation |
€70,93 |
|
|
| 25 | M-675001772 | Cap |
€0,95 |
|
|
| 26 | M-675001797 | Cap |
€2,50 |
|
|
| 27 | M-675001891 | Cap |
€2,01 |
|
|
| 28 | M-675001899 | Scotch Tape |
€1,25 |
|
|
| 29 | M-675001788 | Adhesive Cap |
€1,67 |
|
|
| 30 | M-675001546 | Cap |
€2,83 |
|
|
| 31 | M-675001544 | Cap |
€1,20 |
|
|
| 32 | M-675001543 | Cap |
€2,50 |
|
