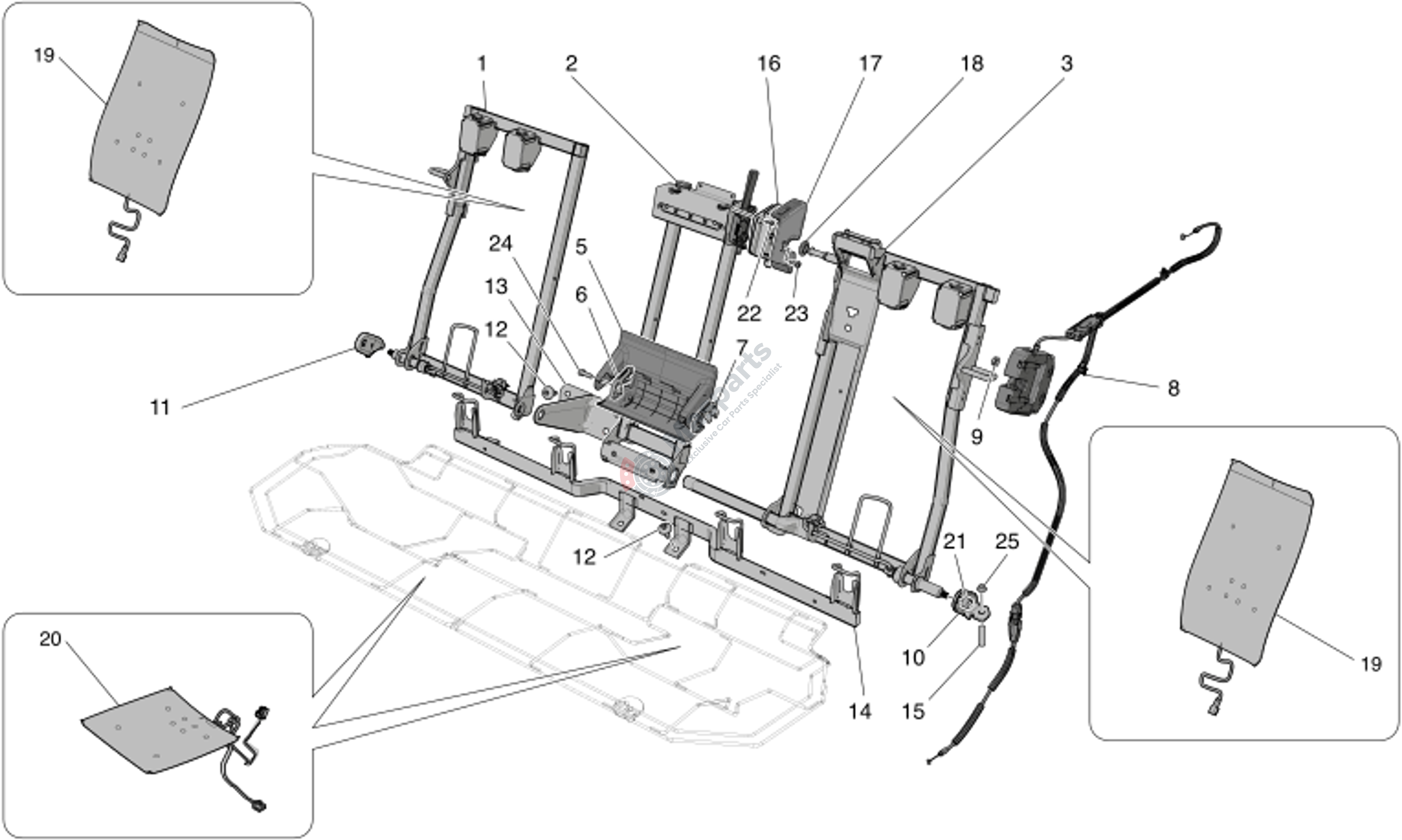

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 8 | M-670157664 | Rh Rear Backrest Lock |
€139,84 |
|
|
| 9 | M-14059311 | Nut |
€1,17 |
|
|
| 12 | M-675002171 | Screw |
€1,07 |
|
|
| 13 | M-670157672 | Bracket |
€22,36 |
|
|
| 14 | M-670157673 | Cross Member |
€94,76 |
|
|
| 15 | M-670219238 | Stud Bolt |
€2,09 |
|
|
| 25 | M-670219237 | Nut |
€2,09 |
|
