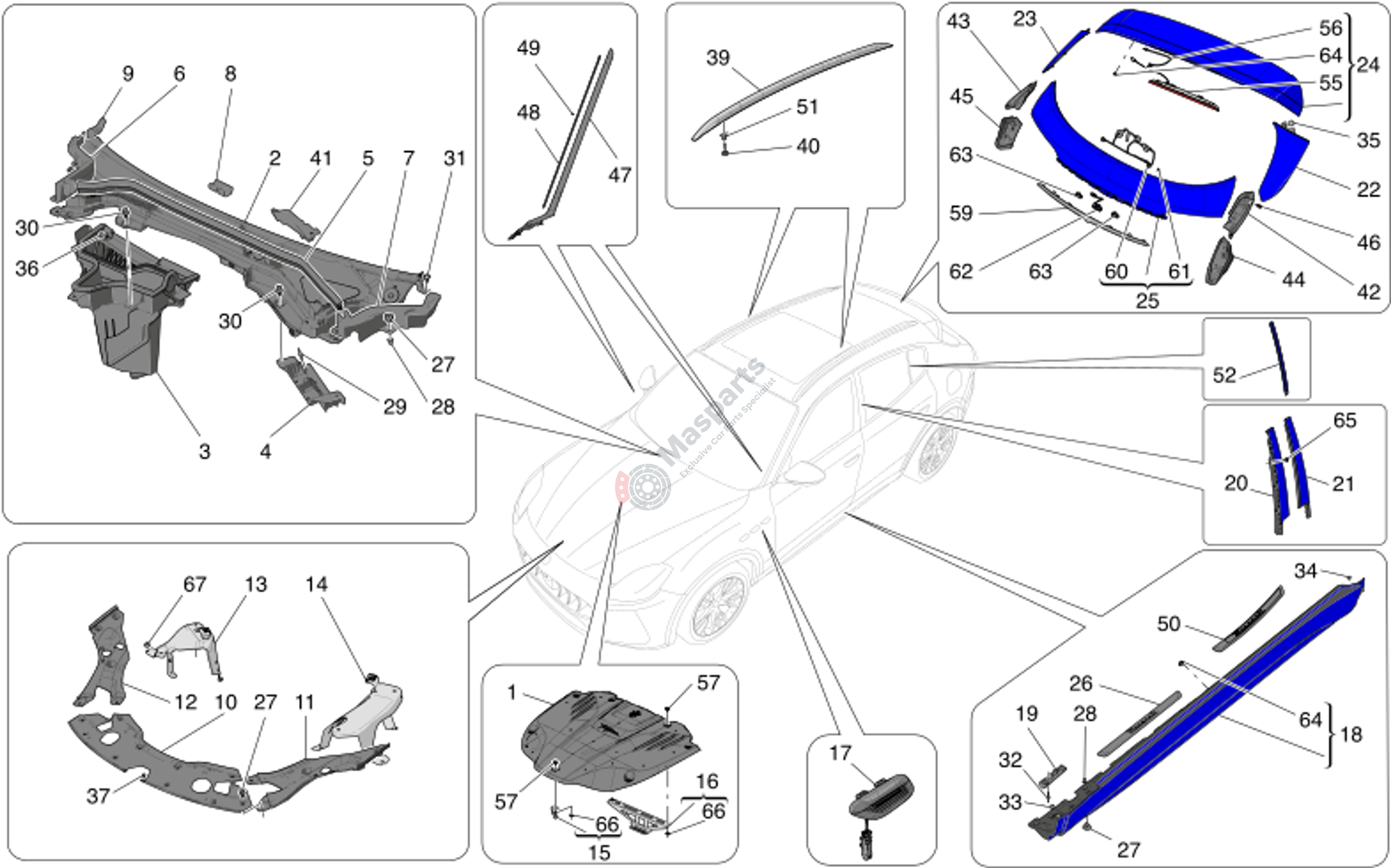

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-670218098 | Lhd Facility Tray |
$171.43 |
|
|
| 4 | M-675001841 | Fixed Bracket Mostrine |
$9.55 |
|
|
| 5 | M-670157718 | Air Intake Tub Gasket |
$18.33 |
|
|
| 6 | M-670157717 | Lhd Rh Air Inlet Gasket |
$11.64 |
|
|
| 7 | M-670157712 | Lhd Lh Air Inlet Gasket |
$12.84 |
|
|
| 8 | M-670157721 | Pad |
$13.94 |
|
|
| 9 | M-670157722 | Pad |
$13.47 |
|
|
| 10 | M-670177542 | Front Engine Cover |
$27.81 |
|
|
| 11 | M-670215672 | Lh Front Engine Cover |
$21.06 |
|
|
| 12 | M-670215671 | Rh Front Engine Cover |
$21.06 |
|
|
| 13 | M-670177871 | Rh Front Engine Cover Bracke |
$36.71 |
|
|
| 14 | M-670177872 | Lh Front Engine Cover Bracke |
$33.06 |
|
|
| 15 | M-670178389 | Rear Lh Bracket |
$9.12 |
|
|
| 16 | M-670303144 | Front Lh Bracket |
$33.97 |
|
|
| 19 | M-670156988 | Right-Hand Moulding Bracket |
$4.28 |
|
|
| 26 | M-670157073 | Front Exterior Sill |
$136.78 |
|
|
| 27 | M-675000058 | Fastening Clip |
$2.84 |
|
|
| 28 | M-675001666 | Bushing |
$0.72 |
|
|
| 29 | M-675001793 | Ribact |
$2.06 |
|
|
| 30 | M-675000294 | Pin |
$2.51 |
|
|
| 31 | M-675001752 | Screw |
$1.00 |
|
|
| 32 | M-675001919 | Ribact |
$0.81 |
|
|
| 33 | M-675001539 | Screw |
$0.90 |
|
|
| 34 | M-675001921 | Nut M6 |
$1.25 |
|
|
| 35 | M-675000432 | Screw |
$2.30 |
|
|
| 36 | M-675000642 | Nut |
$1.57 |
|
|
| 37 | M-675001898 | Block |
$3.28 |
|
|
| 40 | M-670174007 | Screw |
$29.38 |
|
|
| 41 | M-670215242 | Water Shield |
$137.84 |
|
|
| 46 | M-675001881 | Rivet |
$1.36 |
|
|
| 49 | M-670105701 | Rivet |
$2.33 |
|
|
| 50 | M-670157090 | Rh Rear Exterior Sill |
$136.78 |
|
|
| 55 | M-675001952 | Supplementary Stop Light |
$109.72 |
|
|
| 56 | M-670214077 | Liftgate Glass Washer Nozzle |
$11.99 |
|
|
| 60 | M-670212903 | Soft Touch Cable |
$95.92 |
|
|
| 61 | M-670212901 | Screw |
$12.30 |
|
|
| 62 | M-675002213 | Soft Touch M182 |
$33.14 |
|
|
| 63 | M-675000613 | Lamp Lightbar Plate |
$52.92 |
|
|
| 64 | M-673014537 | Pin |
$3.44 |
|
|
| 65 | M-675001329 | Screw |
$1.24 |
|
|
| 67 | M-675000182 | Nut |
$1.12 |
|
