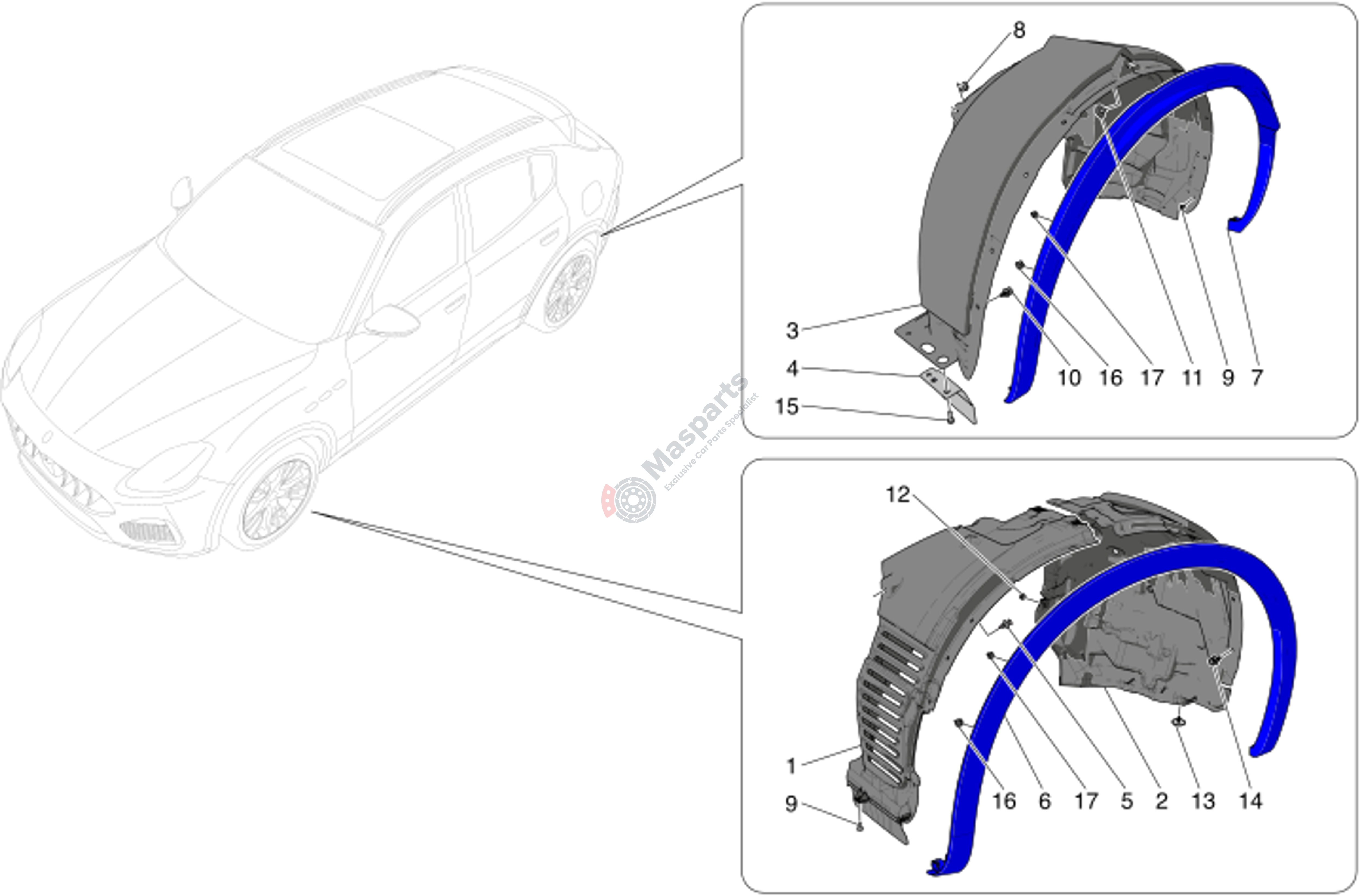

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670177820 | Rh Front Wheelhouse Guard |
$126.32 |
|
|
| 3 | M-670177818 | Rh Rear Wheelhouse Guard |
$104.77 |
|
|
| 5 | M-675000294 | Pin |
$2.54 |
|
|
| 8 | M-675001711 | Nut |
$0.90 |
|
|
| 9 | M-675001390 | Screw |
$2.09 |
|
|
| 10 | M-675001447 | Pin |
$1.51 |
|
|
| 11 | M-670007383 | Fastening Pin |
$8.25 |
|
|
| 12 | M-675001926 | Screw |
$1.36 |
|
|
| 13 | M-675000818 | Screw |
$1.79 |
|
|
| 14 | M-675001608 | Plastic Snap Fastener |
$1.01 |
|
|
| 15 | M-675001932 | Screw M6X25 |
$1.10 |
|
|
| 16 | M-673014561 | Clip |
$2.80 |
|
|
| 17 | M-673014562 | Clip |
$2.80 |
|
