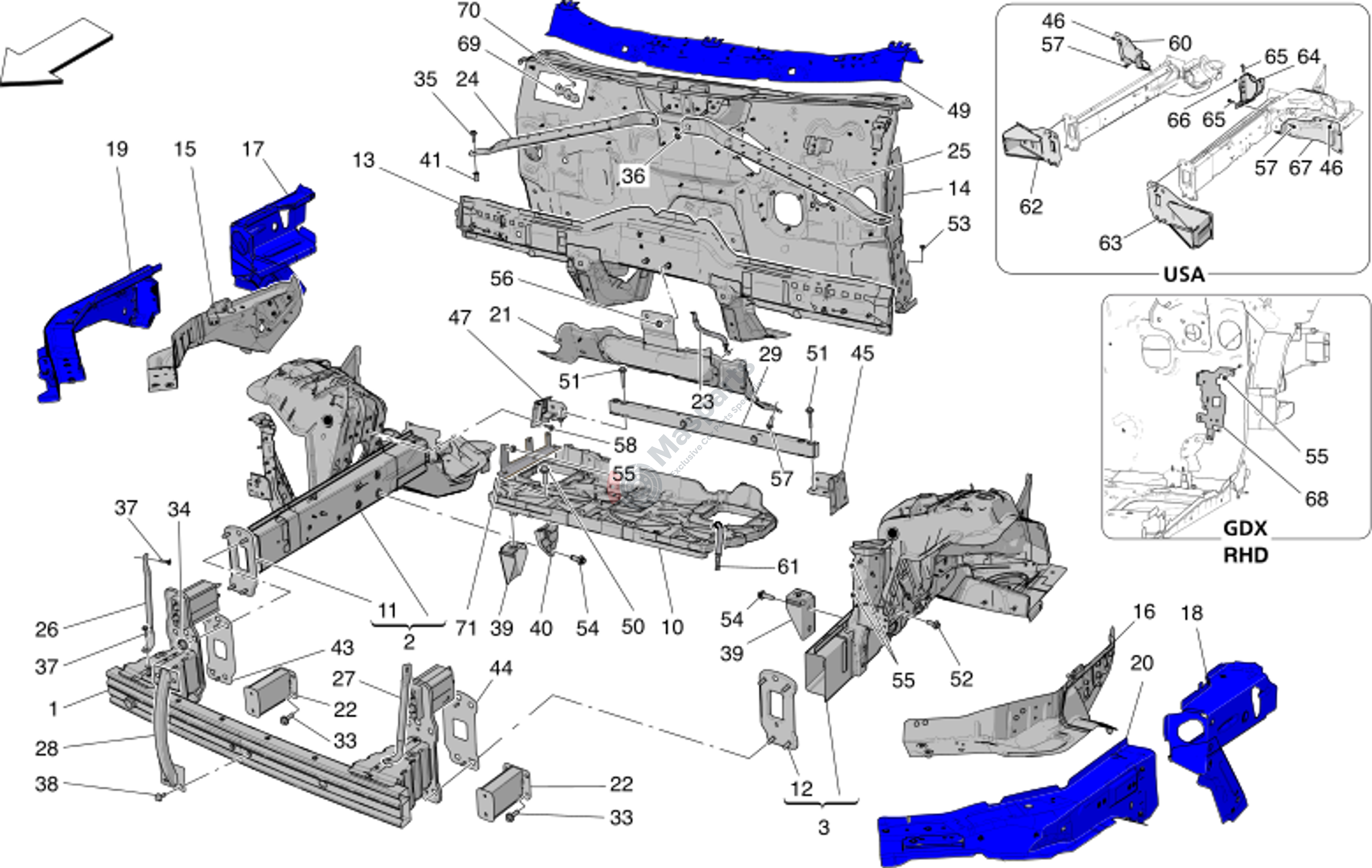

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 10 | M-670178941 | Bar |
$370.28 |
|
|
| 15 | M-673014180 | Complete Box Sup Structure D |
$92.21 |
|
|
| 16 | M-673014181 | Complete Box Sup Structure S |
$92.21 |
|
|
| 17 | M-673014145 | Rh Rear Strut |
$177.77 |
|
|
| 18 | M-673014146 | Lh Rear Strut |
$177.77 |
|
|
| 21 | M-670178620 | Battery Cover |
$103.13 |
|
|
| 23 | M-670177154 | Ground Wire |
$36.77 |
|
|
| 24 | M-675002142 | Rh Domes Connection Bar |
$56.52 |
|
|
| 25 | M-675002141 | Lh Domes Connection Bar |
$56.13 |
|
|
| 26 | M-670157435 | Rh Connection Bar |
$27.76 |
|
|
| 27 | M-670157436 | Lh Connection Bar |
$27.76 |
|
|
| 28 | M-670175582 | Cross Member Connection |
$48.96 |
|
|
| 29 | M-670178566 | Connecting Rod Assembly |
$70.54 |
|
|
| 33 | M-675001345 | Screw |
$2.26 |
|
|
| 34 | M-675001193 | Nut |
$5.73 |
|
|
| 35 | M-675002125 | Screw |
$1.50 |
|
|
| 36 | M-675002104 | Nut |
$2.70 |
|
|
| 37 | M-675002146 | Screw |
$1.81 |
|
|
| 38 | M-675001349 | Screw |
$19.61 |
|
|
| 39 | M-670293562 | Bracket |
$29.49 |
|
|
| 41 | M-670002185 | Rivet |
$2.99 |
|
|
| 43 | M-670178591 | Bracket |
$18.71 |
|
|
| 45 | M-670178617 | Bracket |
$31.42 |
|
|
| 46 | M-675001778 | Nut |
$3.60 |
|
|
| 47 | M-670178616 | Bracket |
$33.86 |
|
|
| 49 | M-673014182 | Complete Crossbar Inf.Gsx Wi |
$85.10 |
|
|
| 50 | M-670159874 | Screw |
$5.42 |
|
|
| 51 | M-670213823 | Screw |
$4.25 |
|
|
| 52 | M-675002161 | Screw |
$1.81 |
|
|
| 54 | M-675002380 | Screw |
$3.60 |
|
|
| 55 | M-675000969 | Nut |
$0.99 |
|
|
| 56 | M-675002384 | Nut |
$1.06 |
|
|
| 57 | M-675002381 | Screw |
$10.01 |
|
|
| 58 | M-675001034 | Screw |
$1.68 |
|
|
| 61 | M-670295621 | Harness |
$36.98 |
|
|
| 69 | M-670177949 | Bracket |
$8.23 |
|
|
| 70 | M-675000273 | Nut |
$0.99 |
|
|
| 71 | M-670213579 | Bracket |
$9.91 |
|
