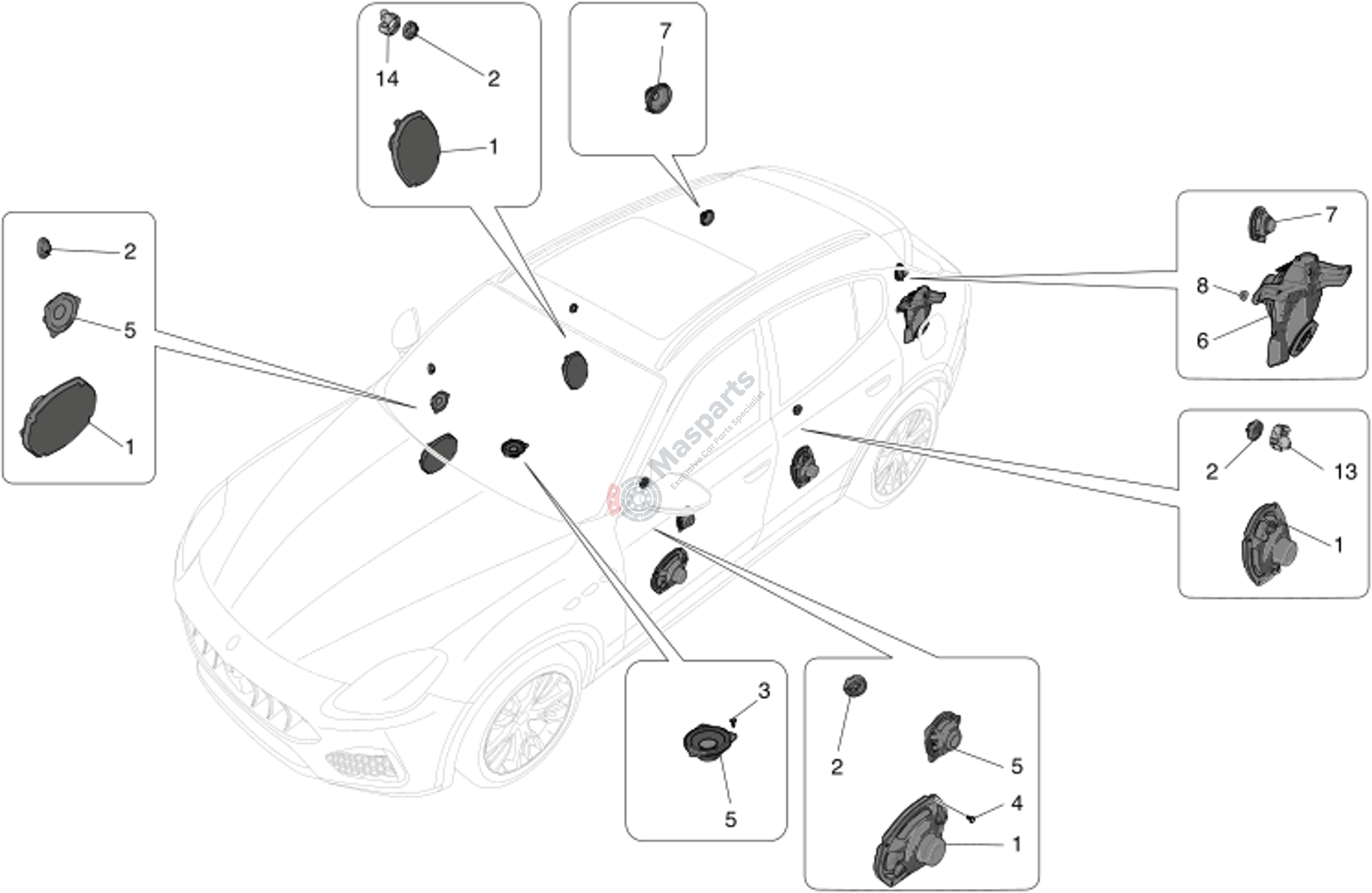

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670157531 | Midwoofer |
$102.26 |
|
|
| 2 | M-670157532 | Tweeter Speaker |
$81.27 |
|
|
| 3 | M-675001491 | Screw |
$1.02 |
|
|
| 4 | M-675001611 | Screw |
$0.82 |
|
|
| 5 | M-670157540 | Midrange Speaker |
$69.37 |
|
|
| 6 | M-670157537 | Subwoofer |
$561.40 |
|
|
| 7 | M-670161026 | Mid-Woofer Loudspeaker |
$139.35 |
|
|
| 8 | M-675001063 | Nut |
$1.25 |
|
|
| 13 | M-673014505 | Tweeter Bracket Premium Lh |
$5.34 |
|
|
| 14 | M-673014504 | Tweeter Bracket Premium Rh |
$5.34 |
|
