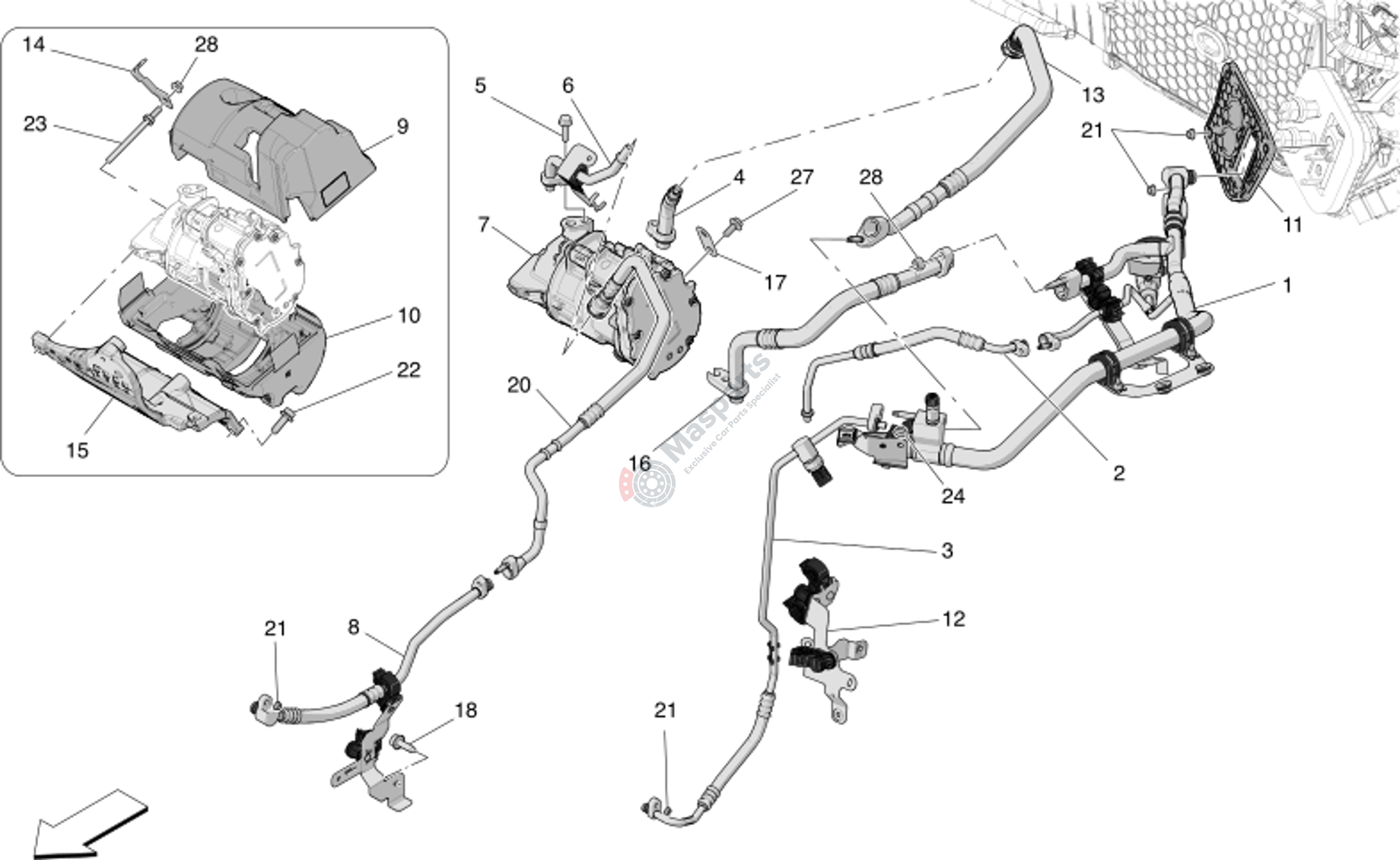

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670177906 | Hose |
$363.09 |
|
|
| 2 | M-670178704 | Hose |
$48.90 |
|
|
| 3 | M-670177881 | Hose |
$148.14 |
|
|
| 4 | M-670177825 | Hose |
$32.98 |
|
|
| 5 | M-675001064 | Screw |
$1.18 |
|
|
| 6 | M-670177824 | Hose |
$51.11 |
|
|
| 7 | M-675002389 | Ac Compressor |
$975.01 |
|
|
| 8 | M-670177882 | Hose |
$88.69 |
|
|
| 9 | M-670178525 | Heating Shelter Compressor |
$58.19 |
|
|
| 10 | M-670221454 | Heat Shelter Support |
$40.68 |
|
|
| 11 | M-675001734 | A/C Gasket |
$11.85 |
|
|
| 12 | M-670220392 | Bracket |
$45.10 |
|
|
| 13 | M-670220390 | Hose |
$73.86 |
|
|
| 14 | M-670177933 | Bracket |
$23.35 |
|
|
| 15 | M-670178942 | Bracket |
$120.52 |
|
|
| 16 | M-670178524 | Hose |
$62.54 |
|
|
| 17 | M-670221030 | Bracket |
$5.02 |
|
|
| 18 | M-675001232 | Screw |
$6.88 |
|
|
| 20 | M-670304921 | Hose |
$51.61 |
|
|
| 21 | M-675000969 | Nut |
$0.98 |
|
|
| 22 | M-670179008 | Screw |
$3.11 |
|
|
| 23 | M-46340850 | Screw |
$3.34 |
|
|
| 24 | M-675001307 | Nut |
$1.10 |
|
|
| 27 | M-675000174 | Screw |
$1.65 |
|
|
| 28 | M-675001306 | Nut |
$1.15 |
|
