Diagram image not available

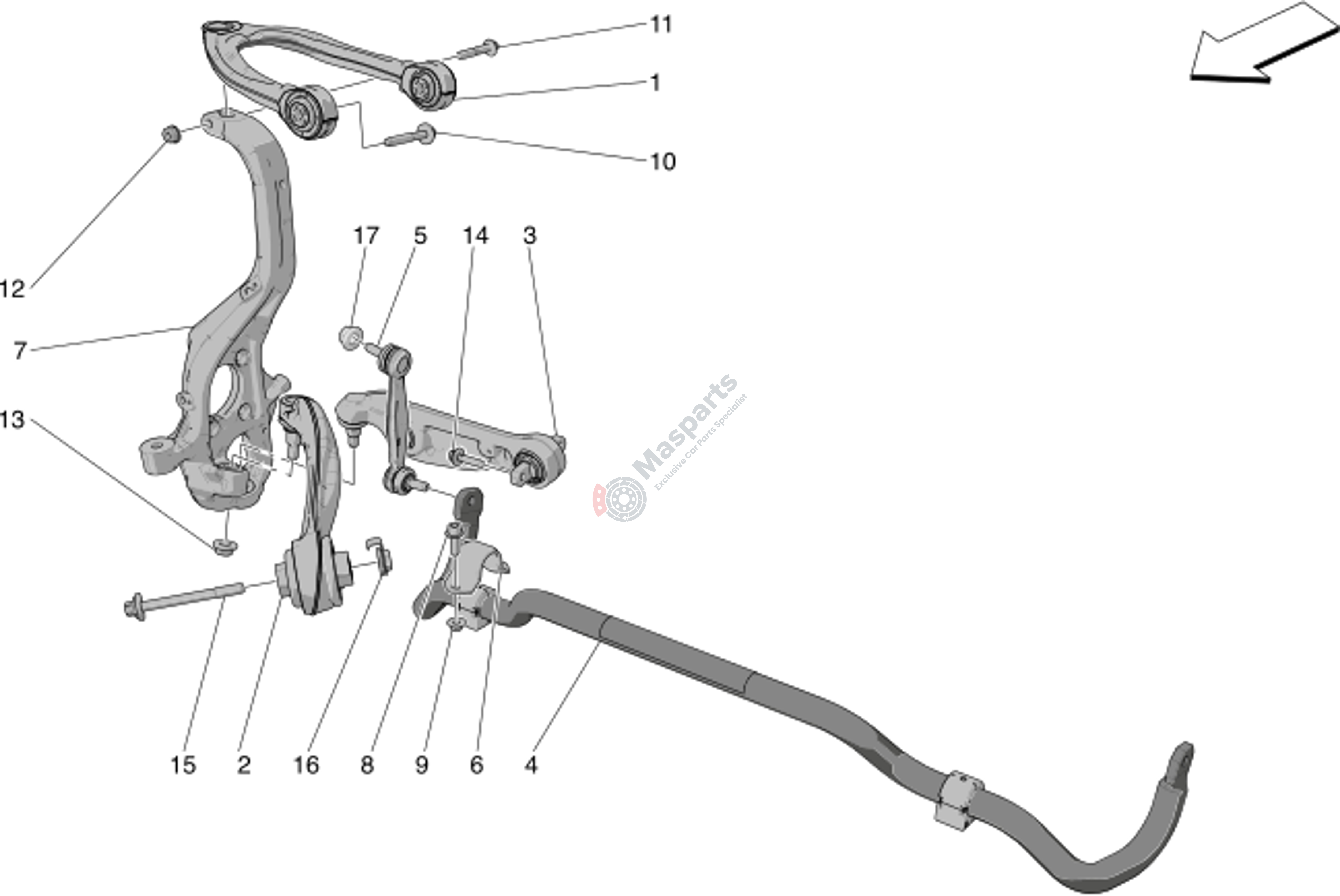

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001806 | Swinging Arm |
$173.39 |
|
|
| 3 | M-675001699 | Shaft |
$190.05 |
|
|
| 4 | M-670218793 | Shaft |
$189.07 |
|
|
| 5 | M-670305712 | Bracket |
$59.56 |
|
|
| 6 | M-675001071 | U-Bolt |
$13.94 |
|
|
| 8 | M-675001015 | Screw |
$1.78 |
|
|
| 9 | M-675001509 | Flange Nut |
$1.83 |
|
|
| 10 | M-675001504 | Screw |
$2.70 |
|
|
| 11 | M-675001505 | Screw |
$2.01 |
|
|
| 12 | M-675000608 | Nut ˇ |
$1.56 |
|
|
| 13 | M-675001188 | Nut |
$5.73 |
|
|
| 14 | M-675001345 | Screw |
$2.26 |
|
|
| 15 | M-675001195 | Screw |
$9.54 |
|
|
| 16 | M-675001832 | Nut |
$8.59 |
|
|
| 17 | M-675001189 | Nut |
$2.31 |
|
