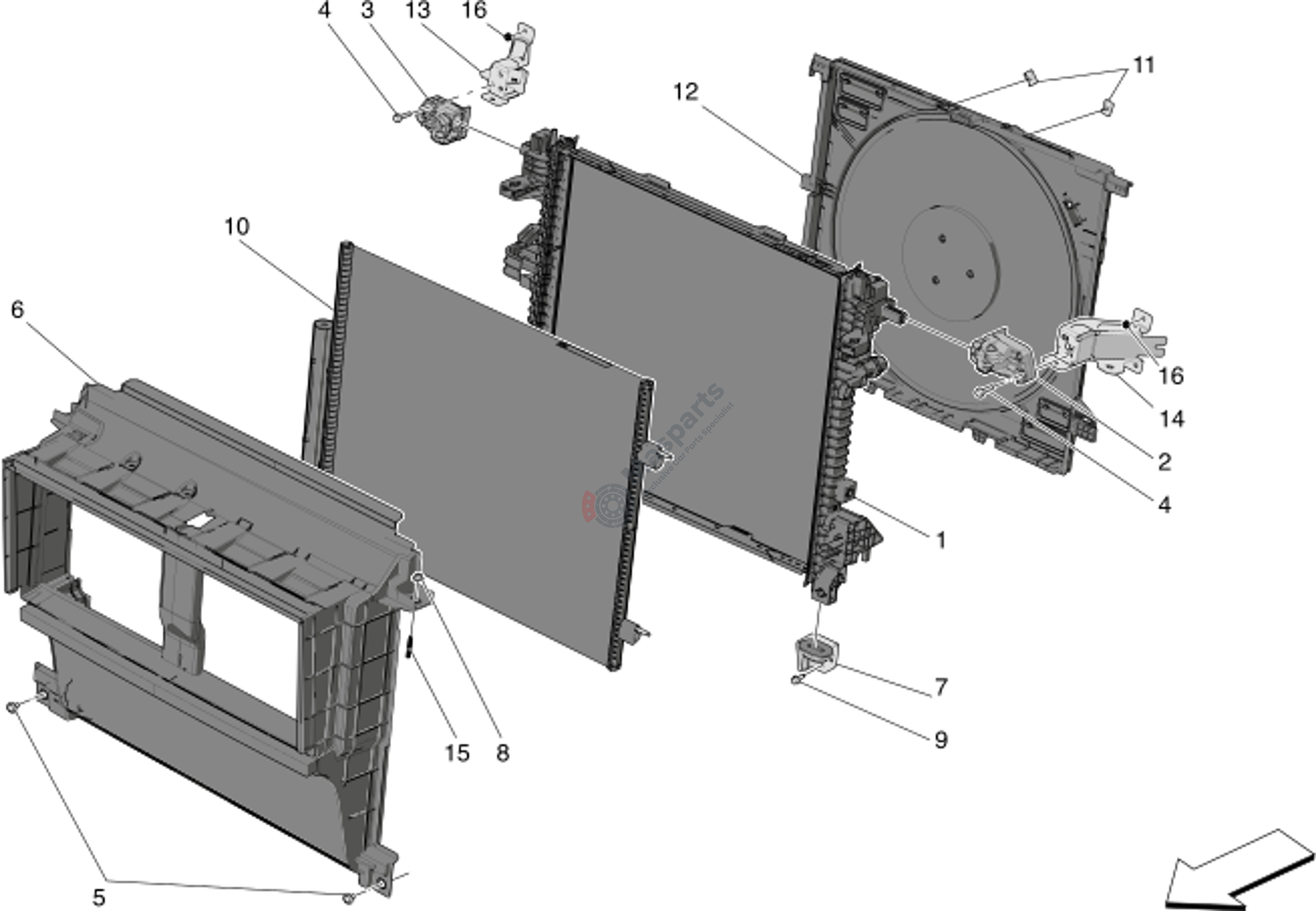

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675002060 | Bracket |
€28,98 |
|
|
| 3 | M-675002059 | Bracket |
€28,98 |
|
|
| 4 | M-675001933 | Screw |
€1,25 |
|
|
| 5 | M-675001053 | Screw |
€1,33 |
|
|
| 6 | M-670177541 | Colling Air Duct |
€77,10 |
|
|
| 7 | M-670178569 | Bracket |
€14,71 |
|
|
| 8 | M-675001063 | Nut |
€1,04 |
|
|
| 9 | M-675001119 | Screw |
€0,66 |
|
|
| 10 | M-675001449 | A.C. Condenser |
€532,95 |
|
|
| 11 | M-675001040 | Plate |
€1,04 |
|
|
| 12 | M-675001942 | Fan |
€766,26 |
|
|
| 13 | M-675002111 | Rh Bracket |
€34,13 |
|
|
| 14 | M-675002112 | Lh Bracket |
€37,35 |
|
|
| 15 | M-675002067 | Fixing |
€9,02 |
|
|
| 16 | M-675000969 | Nut |
€0,83 |
|
