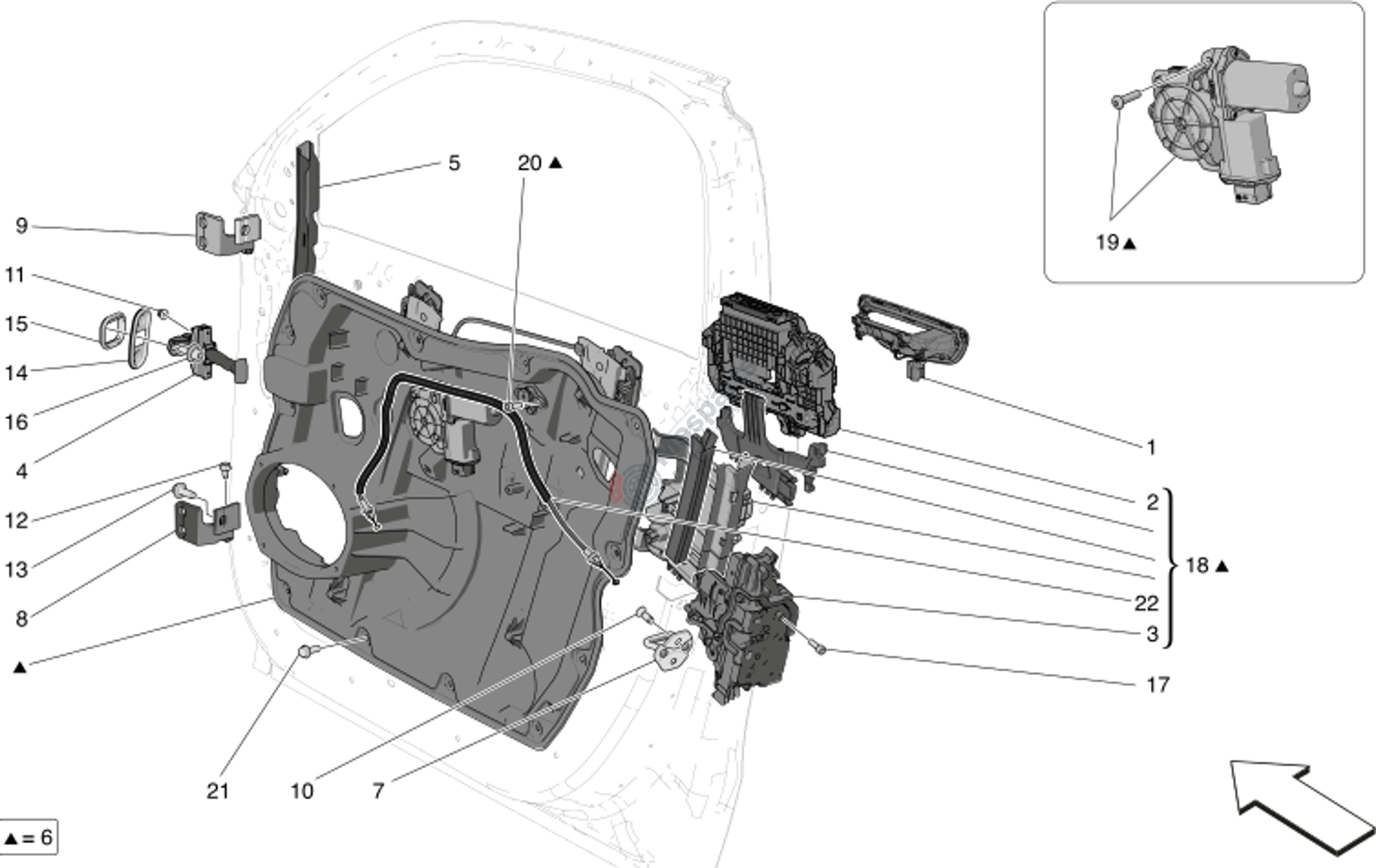

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670157748 | Rh External Door Handle Brac |
€113,16 |
|
|
| 3 | M-670157568 | Rh Front Door Lock Lhd |
€340,40 |
|
|
| 4 | M-670157566 | Tie Rod |
€19,30 |
|
|
| 5 | M-675002106 | Front Rh Window Run Channel |
€12,79 |
|
|
| 6 | M-673014121 | Complete Front Right Door Mo |
€430,56 |
|
|
| 7 | M-670175119 | Doors Lock Striker |
€8,65 |
|
|
| 8 | M-675002132 | Rh Front Lower Hinge |
€42,78 |
|
|
| 9 | M-675002130 | Rh Front Upper Hinge |
€42,78 |
|
|
| 10 | M-675001811 | Screw |
€0,80 |
|
|
| 11 | M-675001318 | Nut |
€1,04 |
|
|
| 12 | M-675000005 | Special Screw |
€1,94 |
|
|
| 13 | M-675000485 | Special Screw |
€1,32 |
|
|
| 14 | M-675001584 | Front Door Gasket |
€2,25 |
|
|
| 15 | M-675001528 | Front Door Gasket |
€2,76 |
|
|
| 16 | M-670006984 | Screw |
€1,99 |
|
|
| 17 | M-675001327 | Screw |
€0,80 |
|
|
| 18 | M-673014106 | Front Dx Gsx Presenter Kit |
€433,44 |
|
|
| 19 | M-673014110 | Front Right Gear Motor Kit |
€108,80 |
|
|
| 20 | M-673014113 | Rear Sensor Fixing Screws |
€8,65 |
|
|
| 21 | M-675001669 | Screw |
€0,81 |
|
|
| 22 | M-673014112 | Remote Control Opening Front |
€55,30 |
|
