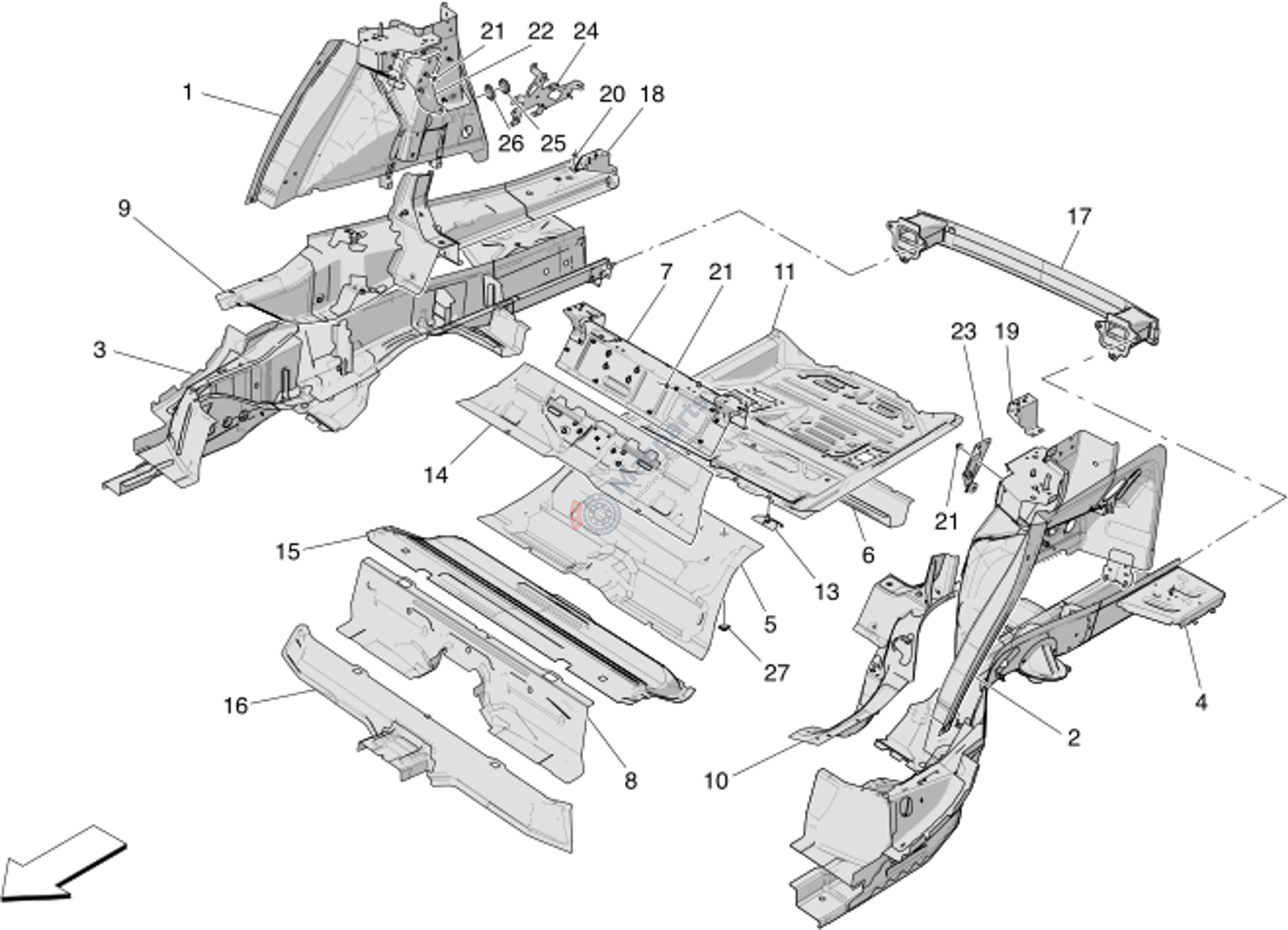

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673014208 | Wheelhouse Cs. Post Rh |
$326.29 |
|
|
| 2 | M-673014209 | Wheelhouse Cs. Post Lh |
$375.47 |
|
|
| 5 | M-673014222 | Front Longitudinal Member Co |
$101.44 |
|
|
| 6 | M-673015743 | Rear Cross Member |
$38.44 |
|
|
| 7 | M-673014224 | Rear Seat Cross Member |
$88.11 |
|
|
| 9 | M-673014254 | Rh Rear Rail Panel |
$272.75 |
|
|
| 10 | M-673014255 | Lh Rear Rail Panel |
$272.75 |
|
|
| 14 | M-673014226 | Rear Side Rear Floor |
$88.23 |
|
|
| 16 | M-673014227 | Rear Cross Piece Member |
$76.87 |
|
|
| 17 | M-670295915 | Rear Crash-Box Cross Member |
$319.64 |
|
|
| 20 | M-675000969 | Nut |
$0.97 |
|
|
| 21 | M-675000181 | Nut |
$1.46 |
|
|
| 22 | M-670172816 | Rh Bracket Winder |
$12.11 |
|
|
| 23 | M-670172817 | Lh Bracket Winder |
$12.11 |
|
|
| 24 | M-670213577 | Bracket |
$24.58 |
|
|
| 25 | M-670220288 | Cap |
$5.40 |
|
|
| 26 | M-675001547 | Cap |
$2.98 |
|
|
| 27 | M-675001591 | Cap |
$1.25 |
|
