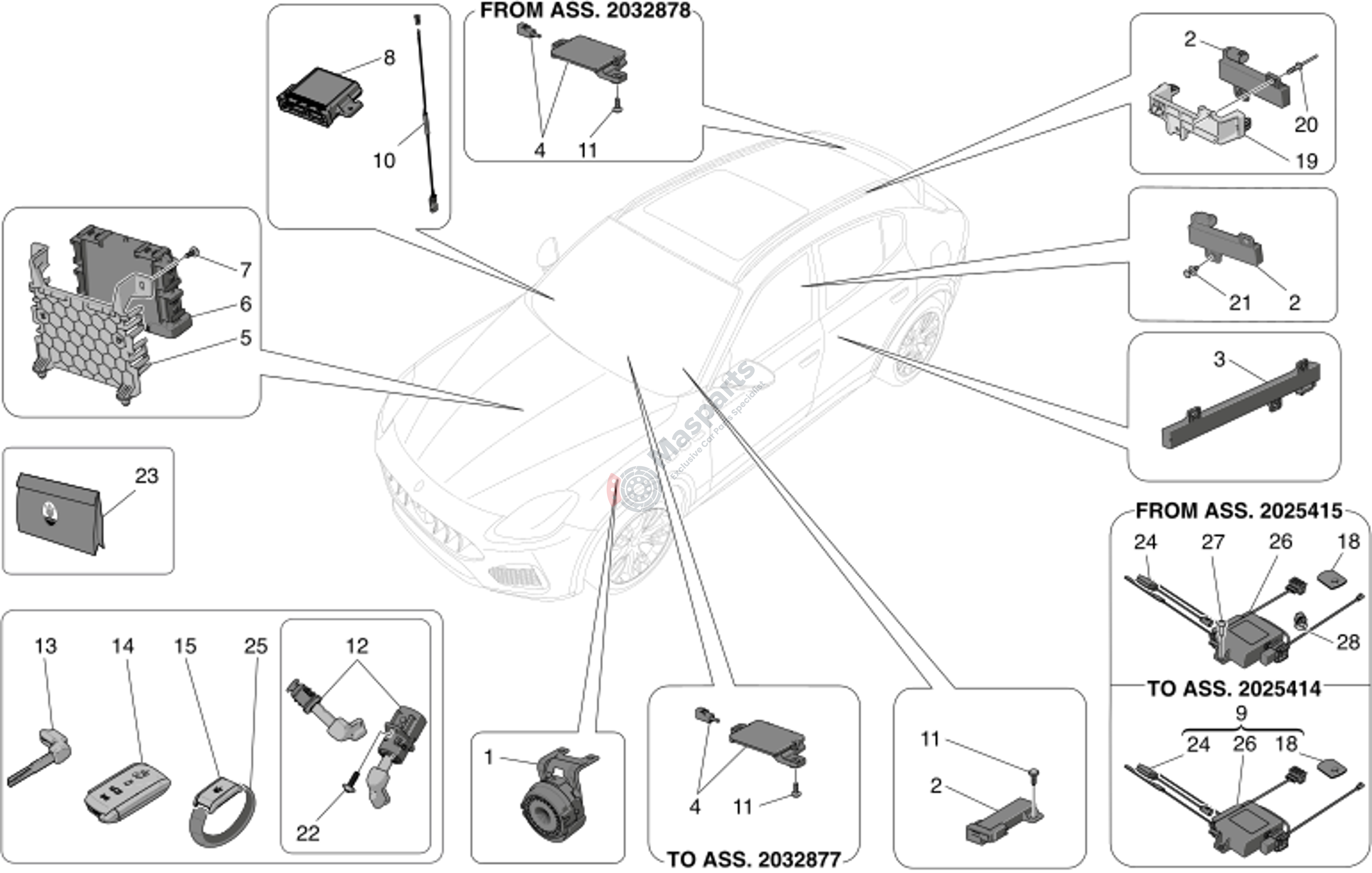

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670221003 | Alarm System Siren With Brac |
$100.37 |
|
|
| 2 | M-675000207 | Passive Entry Antenna |
$20.47 |
|
|
| 3 | M-670157625 | Rear Door Panel Passive Entr |
$62.90 |
|
|
| 4 | M-675002208 | Remote Start Antenna |
$11.23 |
|
|
| 5 | M-670175514 | Gateway Node Bracket |
$26.85 |
|
|
| 6 | M-670295597 | Ecu Security Gateway Row |
$929.11 |
|
|
| 7 | M-675001491 | Screw |
$1.01 |
|
|
| 8 | M-670159939 | Passive Entry Module Rfm Hub |
$563.44 |
|
|
| 11 | M-675001491 | Screw |
$1.01 |
|
|
| 19 | M-670179003 | Right Bracket |
$12.44 |
|
|
| 20 | M-675002061 | Rivet |
$0.72 |
|
|
| 21 | M-675001615 | Plastic Snap Fastener |
$2.00 |
|
|
| 22 | M-673014114 | Pawl Fastening Screws |
$13.59 |
|
|
| 25 | M-670299984 | Active Key Strap |
$32.24 |
|
