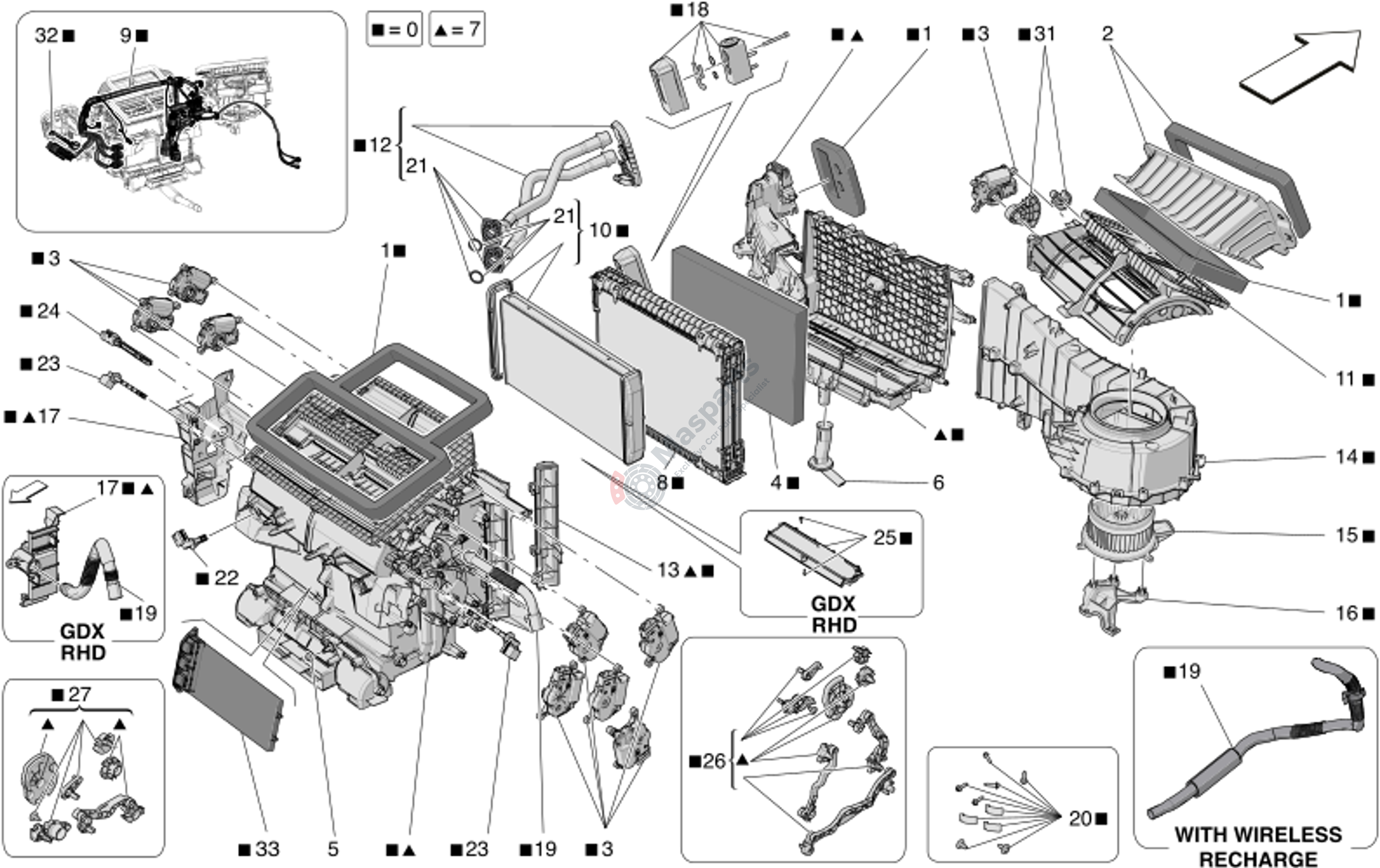

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673013339 | Kit Lhd/Rhd Gasket |
$42.84 |
|
|
| 2 | M-670212777 | Lhd Air Inlet Module |
$38.53 |
|
|
| 3 | M-670104418 | Actuator |
$65.39 |
|
|
| 4 | M-673013332 | Pollen Filter |
$46.07 |
|
|
| 5 | M-675000412 | Hex Nut |
$1.24 |
|
|
| 6 | M-670177823 | Hose |
$8.52 |
|
|
| 8 | M-673013334 | Kit Lhd Evaporator 1234Yf W |
$516.26 |
|
|
| 10 | M-673013327 | Kit Lhd Heater Core W/O Pipe |
$130.29 |
|
|
| 11 | M-673013337 | Lhd Air Inlet/Rec Case |
$30.82 |
|
|
| 12 | M-673013326 | Kit Lhd Heater Core Pipes |
$33.99 |
|
|
| 13 | M-673013335 | Filter Cover |
$26.36 |
|
|
| 14 | M-673013323 | Kit Lhd Front Cases W Wiring |
$31.15 |
|
|
| 15 | M-673013331 | Kit Lhd Blower Assy |
$457.91 |
|
|
| 16 | M-673013328 | Lhd Motor Holder Bracket |
$56.08 |
|
|
| 17 | M-673013330 | Kit Lhd Heater Core Pipes Co |
$14.51 |
|
|
| 18 | M-673013333 | Kit 1234Yf Txv |
$145.26 |
|
|
| 20 | M-673013324 | Kit Lhd Fixing Screws/Clamps |
$19.09 |
|
|
| 21 | M-673013340 | Kit Heater Core Pipes Fixing |
$19.62 |
|
|
| 22 | M-673009333 | Air Temp. Floor Sensor |
$35.84 |
|
|
| 23 | M-673013329 | Kit Lhd Air Temp Sensor (Ven |
$27.70 |
|
|
| 24 | M-673009331 | Evapourator Sensor |
$47.38 |
|
|
| 26 | M-673013318 | Kit Lhd Mix/Mode Kinematics |
$40.23 |
|
|
| 27 | M-673013336 | Kit Mix/Mode Kinematics Left |
$33.87 |
|
|
| 31 | M-673013338 | Kit Lhd Air Inlet/Rec Kinema |
$12.93 |
|
