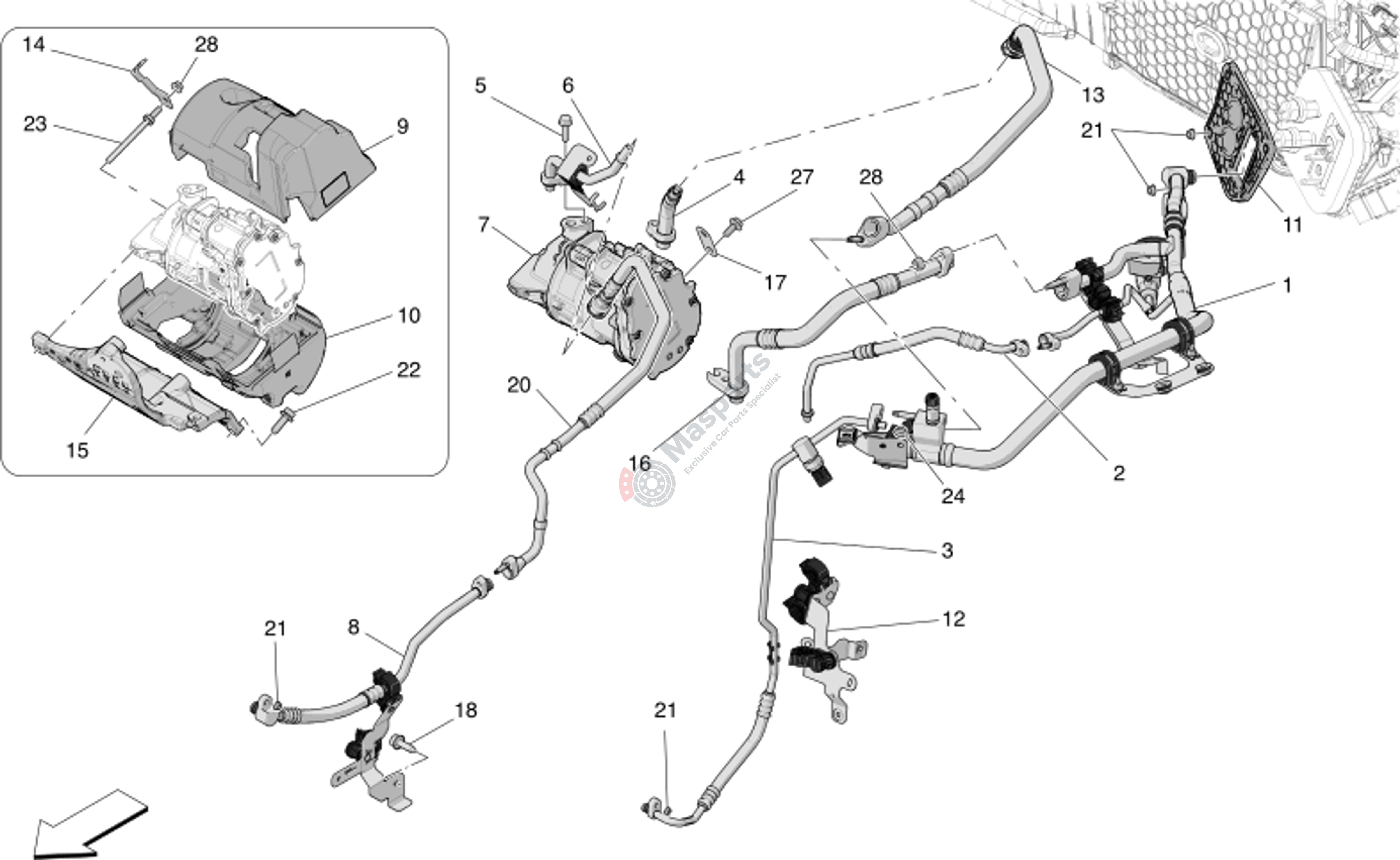

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670177906 | Hose |
$355.44 |
|
|
| 2 | M-670178704 | Hose |
$47.87 |
|
|
| 3 | M-670177881 | Hose |
$145.02 |
|
|
| 4 | M-670177825 | Hose |
$32.28 |
|
|
| 5 | M-675001064 | Screw |
$1.16 |
|
|
| 6 | M-670177824 | Hose |
$50.03 |
|
|
| 7 | M-675002389 | Ac Compressor |
$954.47 |
|
|
| 8 | M-670177882 | Hose |
$86.82 |
|
|
| 9 | M-670178525 | Heating Shelter Compressor |
$56.96 |
|
|
| 10 | M-670221454 | Heat Shelter Support |
$39.82 |
|
|
| 11 | M-675001734 | A/C Gasket |
$11.60 |
|
|
| 12 | M-670220392 | Bracket |
$44.15 |
|
|
| 13 | M-670220390 | Hose |
$72.30 |
|
|
| 14 | M-670177933 | Bracket |
$22.86 |
|
|
| 15 | M-670178942 | Bracket |
$117.98 |
|
|
| 16 | M-670178524 | Hose |
$61.22 |
|
|
| 17 | M-670221030 | Bracket |
$4.92 |
|
|
| 18 | M-675001232 | Screw |
$6.74 |
|
|
| 20 | M-670304921 | Hose |
$50.53 |
|
|
| 21 | M-675000969 | Nut |
$0.96 |
|
|
| 22 | M-670179008 | Screw |
$3.04 |
|
|
| 23 | M-46340850 | Screw |
$3.27 |
|
|
| 24 | M-675001307 | Nut |
$1.08 |
|
|
| 27 | M-675000174 | Screw |
$1.62 |
|
|
| 28 | M-675001306 | Nut |
$1.13 |
|
