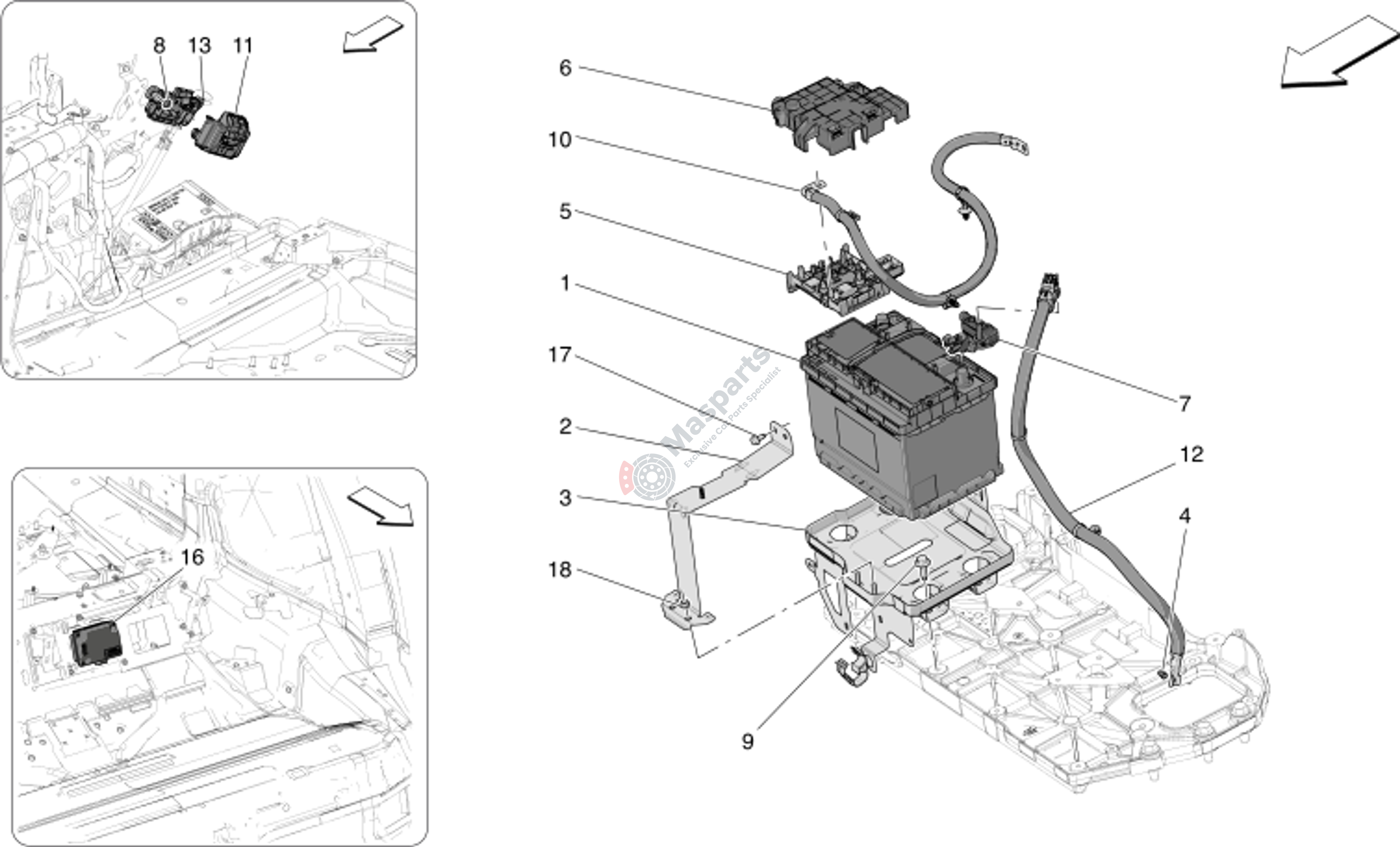

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670178685 | Battery Bracket |
$11.29 |
|
|
| 3 | M-670178621 | Battery Housing |
$61.16 |
|
|
| 4 | M-675000793 | Threaded Pin |
$6.74 |
|
|
| 5 | M-670179830 | Ecu Battery Fuse |
$44.25 |
|
|
| 6 | M-675000806 | Fuse Ecu Cover |
$13.46 |
|
|
| 8 | M-675001307 | Nut |
$1.11 |
|
|
| 9 | M-675001245 | Screw |
$1.66 |
|
|
| 10 | M-670220689 | Harness |
$78.16 |
|
|
| 11 | M-675001229 | Control Unit Cover |
$9.38 |
|
|
| 13 | M-670179829 | Fuse Ecu |
$25.33 |
|
|
| 16 | M-675001817 | Inverter Power Converter(230 |
$172.31 |
|
|
| 17 | M-675001117 | Screw |
$1.11 |
|
|
| 18 | M-675000273 | Nut |
$0.98 |
|
