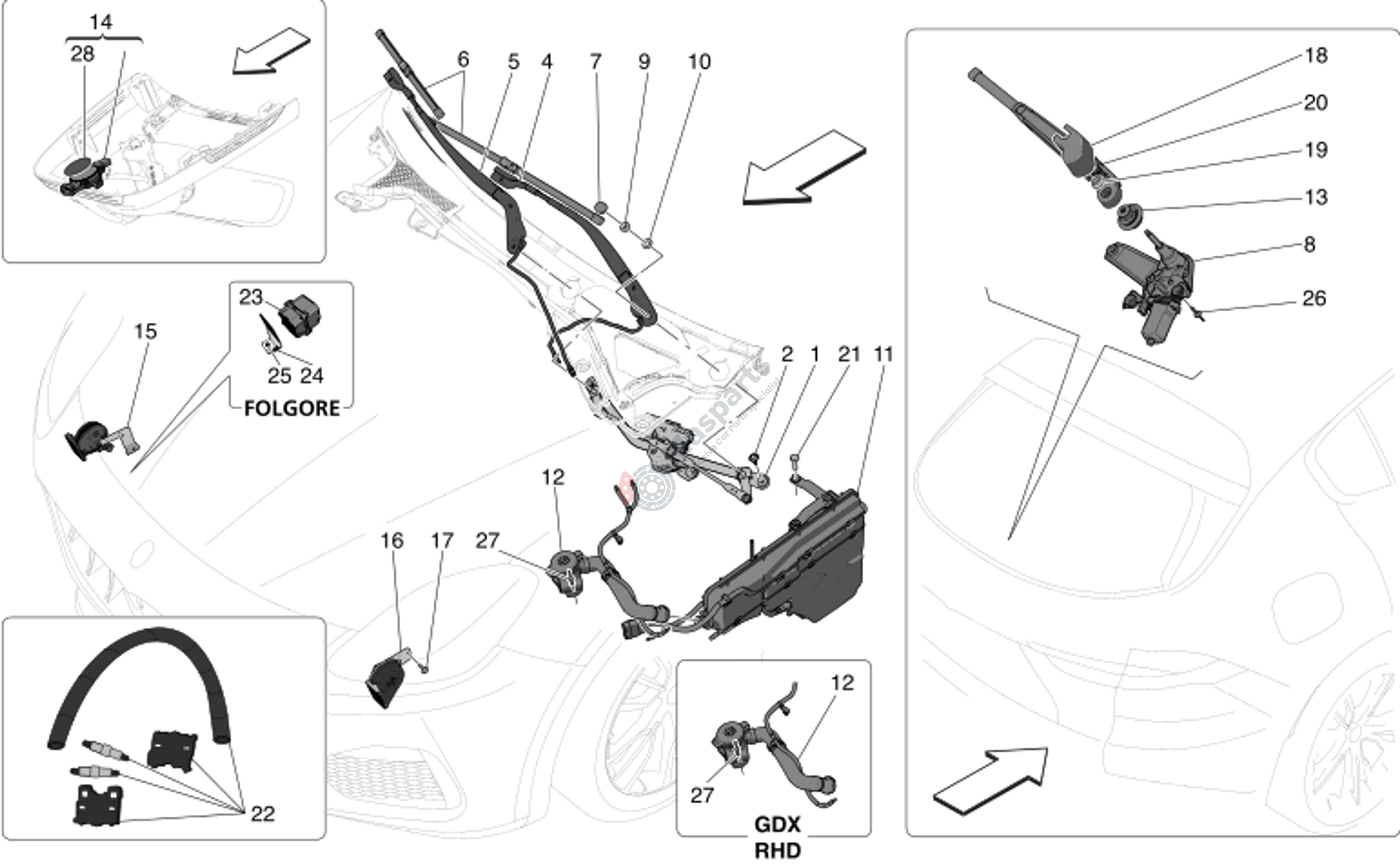

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670175173 | Lhd Windscreen Wiper Set |
$194.95 |
|
|
| 2 | M-675001539 | Screw |
$0.89 |
|
|
| 6 | M-673012892 | Grecale Wiper Blades Kit |
$60.06 |
|
|
| 7 | M-670007188 | Protection Boot. |
$1.12 |
|
|
| 8 | M-675001519 | Rear Liftgate Windscreen Wip |
$112.66 |
|
|
| 9 | M-675001067 | Nut |
$1.41 |
|
|
| 10 | M-675001068 | Washer |
$1.38 |
|
|
| 11 | M-675001665 | Windscreen Washer Tank |
$158.79 |
|
|
| 12 | M-670213360 | Lhd Pipe |
$67.15 |
|
|
| 13 | M-670035110 | Gasket |
$11.23 |
|
|
| 15 | M-670219967 | High Tone Horn |
$44.90 |
|
|
| 16 | M-670219965 | Low Tone Horn |
$44.90 |
|
|
| 17 | M-675001317 | Screw |
$1.85 |
|
|
| 18 | M-670037445 | Cap |
$10.15 |
|
|
| 19 | M-675000582 | Nut |
$1.25 |
|
|
| 20 | M-670157340 | Liftgate Wiper Arm |
$103.60 |
|
|
| 21 | M-675001539 | Screw |
$0.89 |
|
|
| 22 | M-675002344 | Repairing Kit Hose Rear Wash |
$94.15 |
|
|
| 23 | M-670176367 | Pedestrian Horn |
$79.68 |
|
|
| 24 | M-670212899 | Bracket |
$16.95 |
|
|
| 25 | M-675000969 | Nut |
$0.98 |
|
|
| 26 | M-675000593 | Rivet |
$1.50 |
|
|
| 27 | M-675002055 | Rivet |
$1.41 |
|
