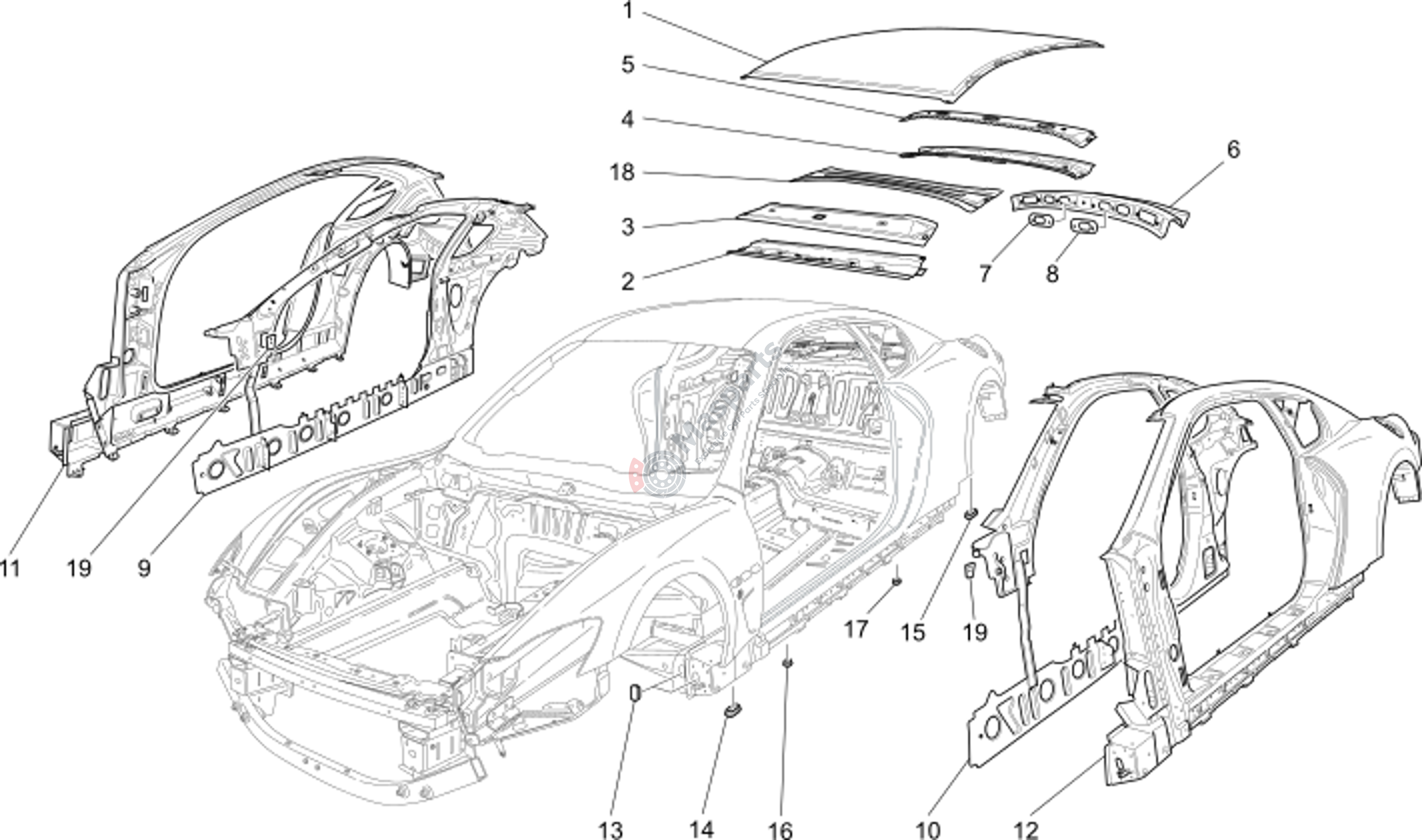

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-980145817 | Cpl Roof My18 |
$2,733.93 |
|
|
| 2 | M-87438000 | Windscreen Upper Cross Membe |
$429.90 |
|
|
| 3 | M-87438400 | Windscreen Cross Memb. Cover |
$124.36 |
|
|
| 4 | M-980145041 | Cpl Roof Rear Cross Member |
$358.56 |
|
|
| 5 | M-68244100 | Roof Rear Cross Memb.Cover |
$335.56 |
|
|
| 6 | M-69150000 | Cpl Rear Window Low.Cross-Me |
$217.91 |
|
|
| 7 | M-80004700 | R.H. Bracket |
$268.02 |
|
|
| 8 | M-80004800 | L.H. Bracket |
$268.02 |
|
|
| 10 | M-980145820 | Cpl Lh Inn. Side Panel |
$1,871.84 |
|
|
| 11 | M-68285900 | Cpl Rh Out. Side Panelcoupe |
$7,311.05 |
|
|
| 12 | M-68286000 | Cpl Lh Out. Side Panelcoupe |
$6,466.30 |
|
|
| 13 | M-67725200 | Plug |
$3.10 |
|
|
| 14 | M-80036800 | Plug |
$1.76 |
|
|
| 15 | M-80378100 | Plug |
$4.60 |
|
|
| 16 | M-80036400 | Plug |
$3.71 |
|
|
| 17 | M-13141287 | Plug |
$1.74 |
|
|
| 18 | M-87328900 | Roof Panel Center Rib Cross |
$177.96 |
|
|
| 19 | M-87431400 | Upright Front Plate Sup Int |
$34.25 |
|
