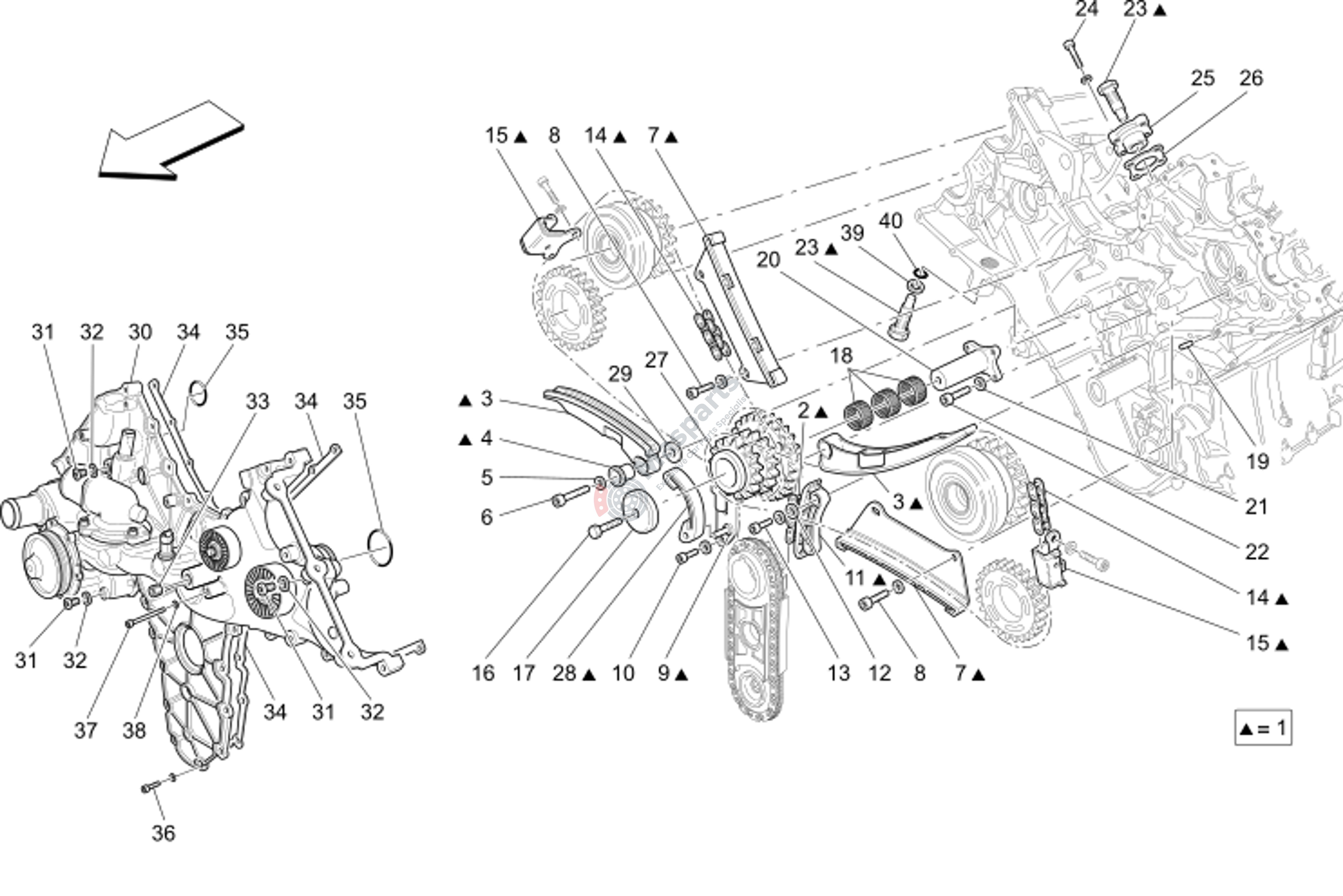

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-319940 | Timing Control And Oil Pump |
€934,18 |
||
| 2 | M-175286 | Transmission Chain 23X236X48 |
€30,15 |
||
| 3 | M-186184 | Mobile Runner |
€85,22 |
||
| 3 | M-186184 | Mobile Runner |
€85,22 |
||
| 4 | M-175303 | Movable Runner Fast. Bushing |
€16,42 |
||
| 5 | M-255527 | Split Washer D.8.1X12.7X2 |
€1,74 |
||
| 6 | M-14306424 | Screw |
€1,65 |
||
| 7 | M-186185 | Cpl Timing System Fixed Runn |
€62,62 |
||
| 7 | M-186185 | Cpl Timing System Fixed Runn |
€62,62 |
||
| 8 | M-231627 | Socket Head Screw With Washe |
€4,54 |
||
| 8 | M-231627 | Socket Head Screw With Washe |
€4,54 |
||
| 9 | M-186159 | Runner Mount |
€30,83 |
||
| 10 | M-231616 | Screw |
€1,65 |
||
| 11 | M-306094 | Chain Guide |
€26,96 |
|
|
| 12 | M-11197774 | Washer |
€1,59 |
||
| 13 | M-231619 | Socket Head Screw With Washe |
€1,93 |
||
| 14 | M-193616 | Timing Control Chain |
€65,89 |
||
| 14 | M-193616 | Timing Control Chain |
€65,89 |
||
| 15 | M-222310 | Cpl Upper Fixed Runner |
€43,41 |
||
| 15 | M-222310 | Cpl Upper Fixed Runner |
€43,41 |
||
| 16 | M-16043124 | Screw |
€1,35 |
||
| 17 | M-194262 | Shoulder. |
€23,76 |
||
| 18 | M-175282 | Roller Cage 28X35X16 |
€11,05 |
||
| 19 | M-175611 | Centering Dowel |
€2,90 |
||
| 20 | M-212970 | Timing Control Transmission |
€1.030,20 |
||
| 21 | M-11181574 | Tapered Rubber Washer D. 5.3 |
€1,35 |
||
| 22 | M-14304224 | Screw |
€1,35 |
||
| 23 | M-230652 | Hydraulic Chain Tensioner |
€65,93 |
||
| 23 | M-230652 | Hydraulic Chain Tensioner |
€65,93 |
||
| 24 | M-231619 | Socket Head Screw With Washe |
€1,93 |
||
| 25 | M-190060 | Hydraulic Tensioner Bushing |
€47,63 |
||
| 26 | M-323282 | Gasket |
€3,19 |
||
| 27 | M-193565 | Transmission Toothed Wheel Z |
€132,36 |
||
| 28 | M-196683 | Fixed Chain Tensioner |
€31,50 |
||
| 29 | M-175306 | Shouldering On Runner Fulcru |
€4,54 |
||
| 31 | M-224314 | Plug M 12X1.25 |
€5,12 |
||
| 31 | M-224314 | Plug M 12X1.25 |
€5,12 |
||
| 31 | M-224314 | Plug M 12X1.25 |
€5,12 |
||
| 32 | M-10296160 | Gasket 12- 18X 1 |
€0,87 |
||
| 32 | M-10296160 | Gasket 12- 18X 1 |
€0,87 |
||
| 32 | M-10296160 | Gasket 12- 18X 1 |
€0,87 |
||
| 33 | M-14324940 | Tapered Threaded Plug 14X1 |
€1,35 |
||
| 34 | M-322502 | Front Cover Gasket |
€30,63 |
||
| 34 | M-322502 | Front Cover Gasket |
€30,63 |
||
| 34 | M-322502 | Front Cover Gasket |
€30,63 |
||
| 35 | M-183010 | O-Ring D. 32.93 |
€2,90 |
||
| 35 | M-183010 | O-Ring D. 32.93 |
€2,90 |
||
| 36 | M-231622 | Socket Head Screw With Washe |
€0,87 |
||
| 37 | M-10589624 | Socket Head Screw M6X80 |
€48,30 |
||
| 38 | M-11197774 | Washer |
€1,59 |
||
| 39 | M-190171 | Spacer For Hydraulic Tension |
€10,73 |
||
| 40 | M-192069 | O-Ring D. 26X1.5 |
€1,35 |
