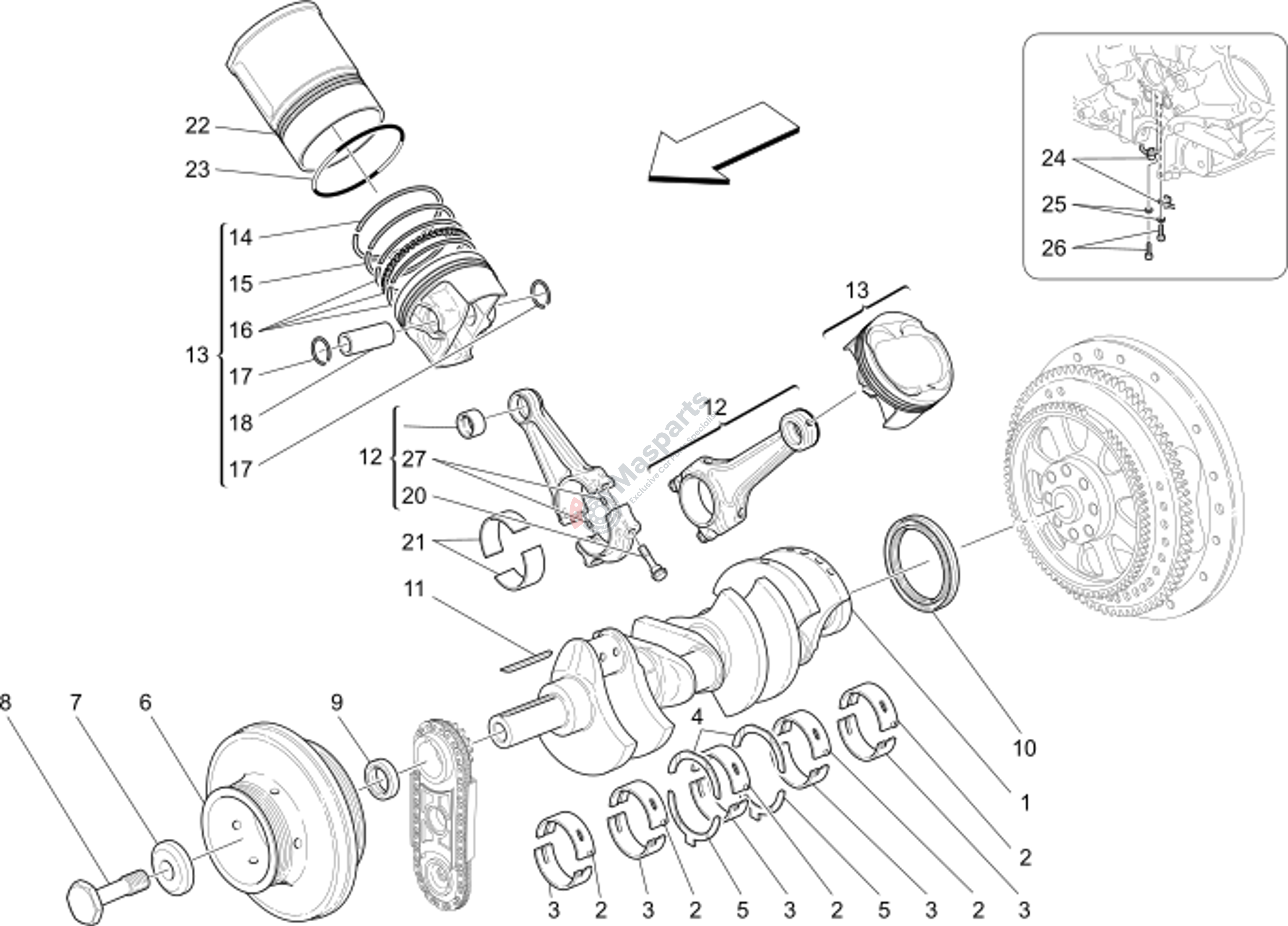

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-760882 | Cpl Crankshaft |
€1.838,72 |
||
| 2 | M-268865 | Upper Half Bearing |
€14,88 |
||
| 2 | M-268865 | Upper Half Bearing |
€14,88 |
||
| 2 | M-268865 | Upper Half Bearing |
€14,88 |
||
| 2 | M-268865 | Upper Half Bearing |
€14,88 |
||
| 2 | M-268865 | Upper Half Bearing |
€14,88 |
||
| 3 | M-268870 | Lower Half Bearing |
€13,60 |
||
| 3 | M-268870 | Lower Half Bearing |
€13,60 |
||
| 3 | M-268870 | Lower Half Bearing |
€13,60 |
||
| 3 | M-268870 | Lower Half Bearing |
€13,60 |
||
| 3 | M-268870 | Lower Half Bearing |
€13,60 |
||
| 4 | M-261727 | Engine Shimming |
€8,99 |
||
| 5 | M-261727 | Engine Shimming |
€8,99 |
||
| 5 | M-261727 | Engine Shimming |
€8,99 |
||
| 6 | M-257518 | Torsion Damper |
€532,17 |
||
| 7 | M-263683 | Damper Fastening Washer |
€12,56 |
||
| 8 | M-196216 | Screw Fast.Tors.Damper To Cr |
€57,10 |
||
| 9 | M-188717 | Gasket For Rot.Shaft D.48-65 |
€24,58 |
||
| 10 | M-200323 | Sealing Ring D.80-100X10 |
€34,30 |
||
| 11 | M-186201 | Crankshaft Tab 6X6X70 |
€2,42 |
||
| 12 | M-268163 | Cpl Connecting Rod And Cap |
€129,41 |
||
| 12 | M-268163 | Cpl Connecting Rod And Cap |
€129,41 |
||
| 13 | M-284372 | Rh Bank Cpl Engine Piston |
€263,93 |
||
| 13 | M-284372 | Rh Bank Cpl Engine Piston |
€263,93 |
||
| 14 | M-240882 | Sealing Ring |
€44,34 |
||
| 15 | M-206412 | 2Nd Race Torsion Sealing Rin |
€76,61 |
||
| 16 | M-212820 | Oil Scraper Ring |
€76,61 |
||
| 17 | M-178890 | Stop Ring D. 20 |
€4,06 |
||
| 17 | M-178890 | Stop Ring D. 20 |
€4,06 |
||
| 18 | M-198260 | Pin |
€51,49 |
||
| 20 | M-218371 | Connecting Rod Tightening Sc |
€32,84 |
||
| 21 | M-261720 | Connecting Rod Half-Bearing |
€19,13 |
||
| 22 | M-243339 | Steel Cylinder Liner D=94 |
€317,49 |
||
| 23 | M-186251 | O-Ring D.95X3.2 |
€4,54 |
||
| 24 | M-236813 | Piston Cooling Nozzle Assemb |
€14,30 |
||
| 25 | M-11181474 | Tapered Rubber Washerd |
€1,35 |
||
| 26 | M-14302921 | Socket Head Screw M 4X 10 |
€1,35 |
||
| 27 | M-224608 | Centring Pin For Connecting |
€2,90 |
